SKU DOR5970367
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.41 CAD - $39.41 CAD
$39.41 CAD
$39.41 CAD - $39.41 CAD
$39.41 CAD

Sold in packs of: 1

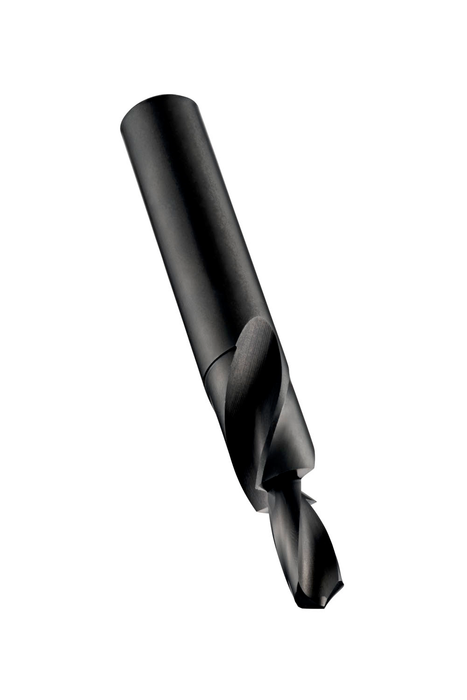

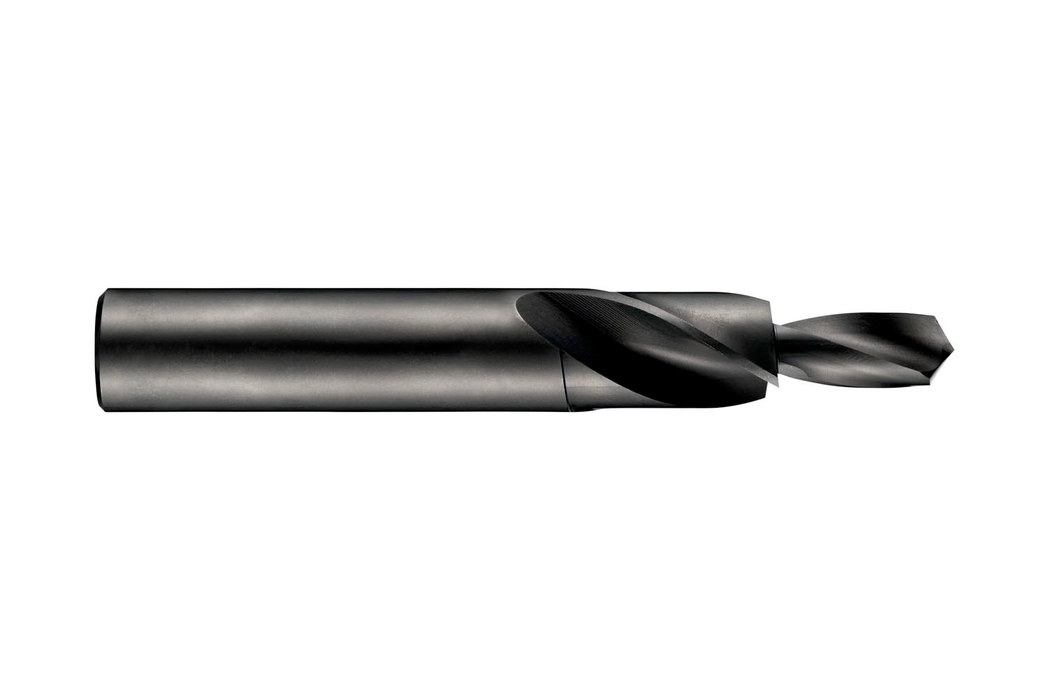

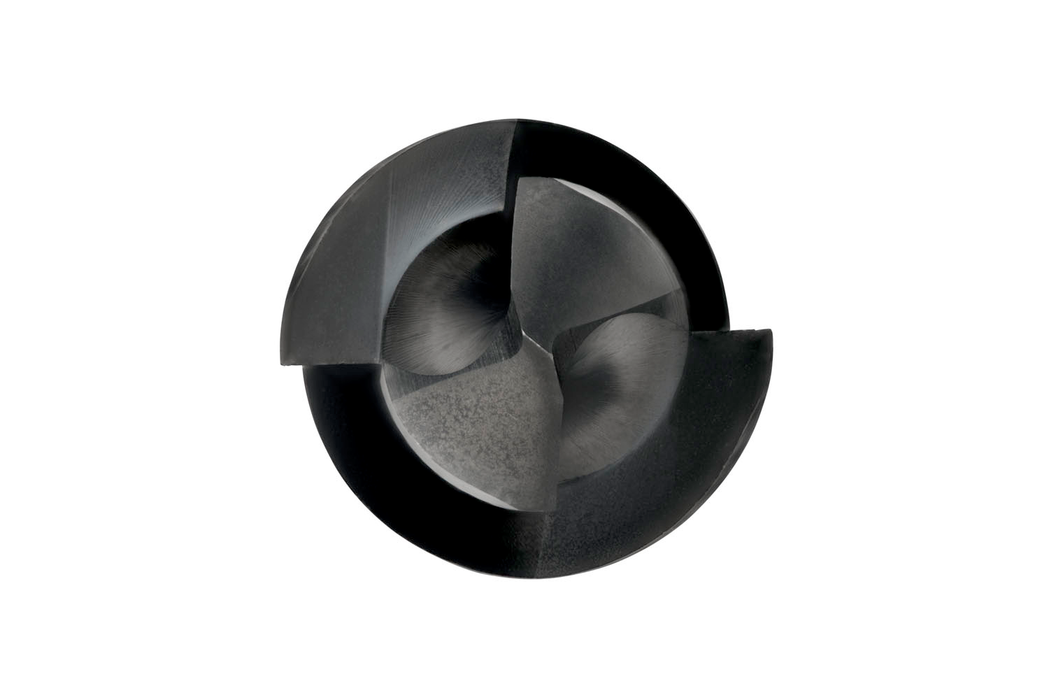

Step drill with 180° included step angle, straight shank and a drilling-pilot diameter of 3.40mm with a length of 9.00mm, a large diameter of 6.00mm and an overall length of 66mm, according to DORMER standard to produce a medium fit through hole and flat bottom seat for M3 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A413M3
GradeSteam Tempered
Product Number5970367
Product FamilyA413

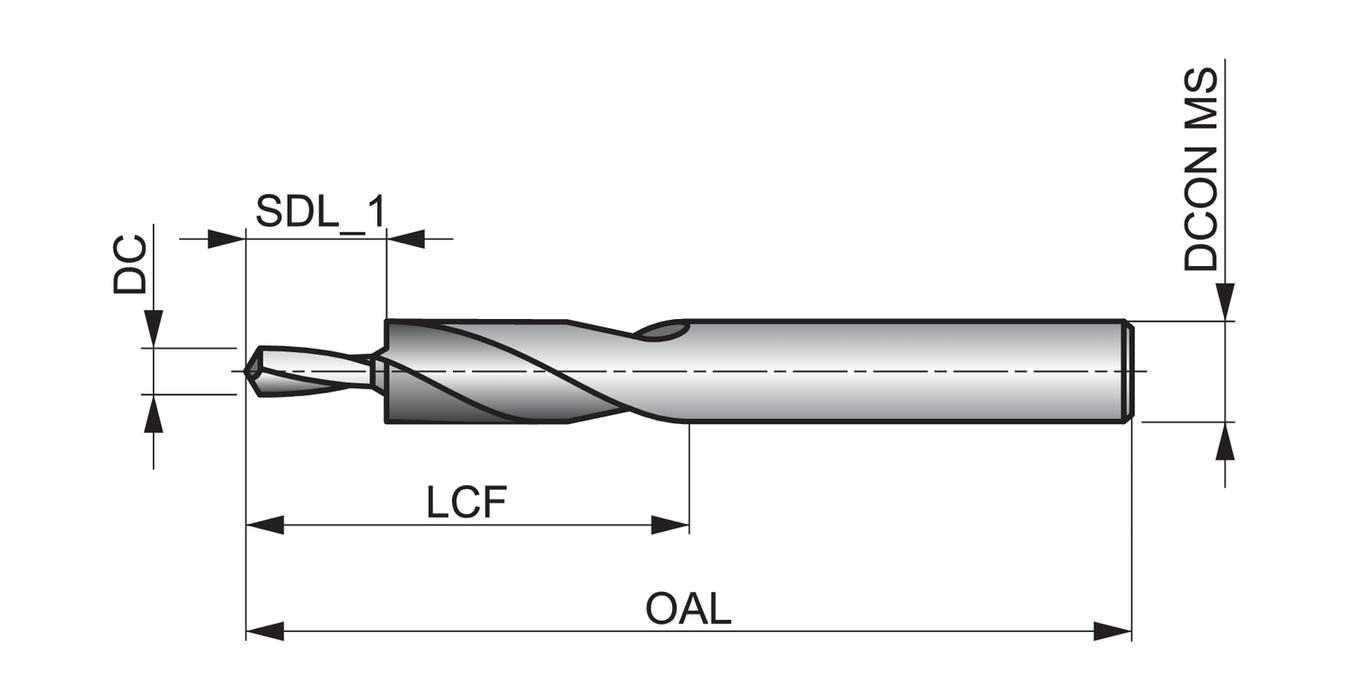

Dimensions
Cutting Diameter — in (DC)0.1339"
Cutting Diameter — mm (DC)3.4 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1024"
Flute Length — mm (LCF)28.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M3
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number213704
EAN7320760213704
File Type Download
A413M3 — Line Drawing PDF Download
