A5108.3

A5108.3

SKU DOR5970400
by Dormer Pramet
Primary Use: Possible Use:

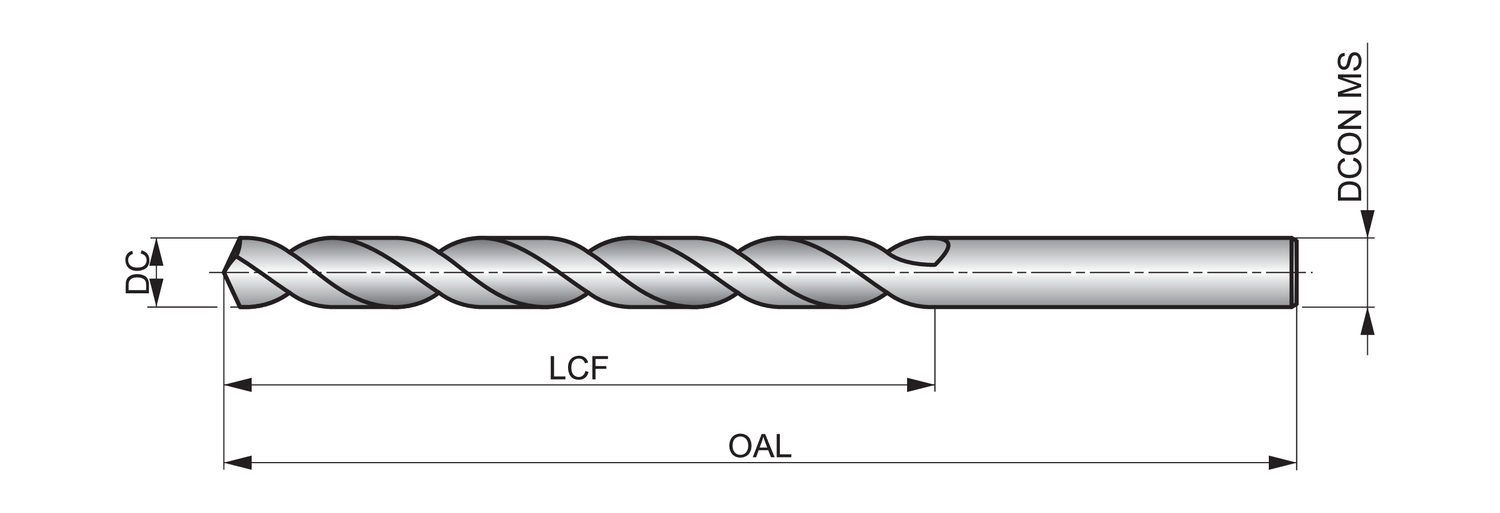

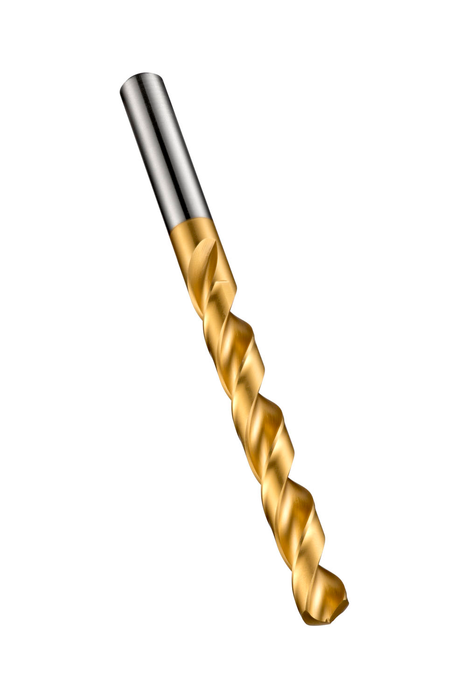

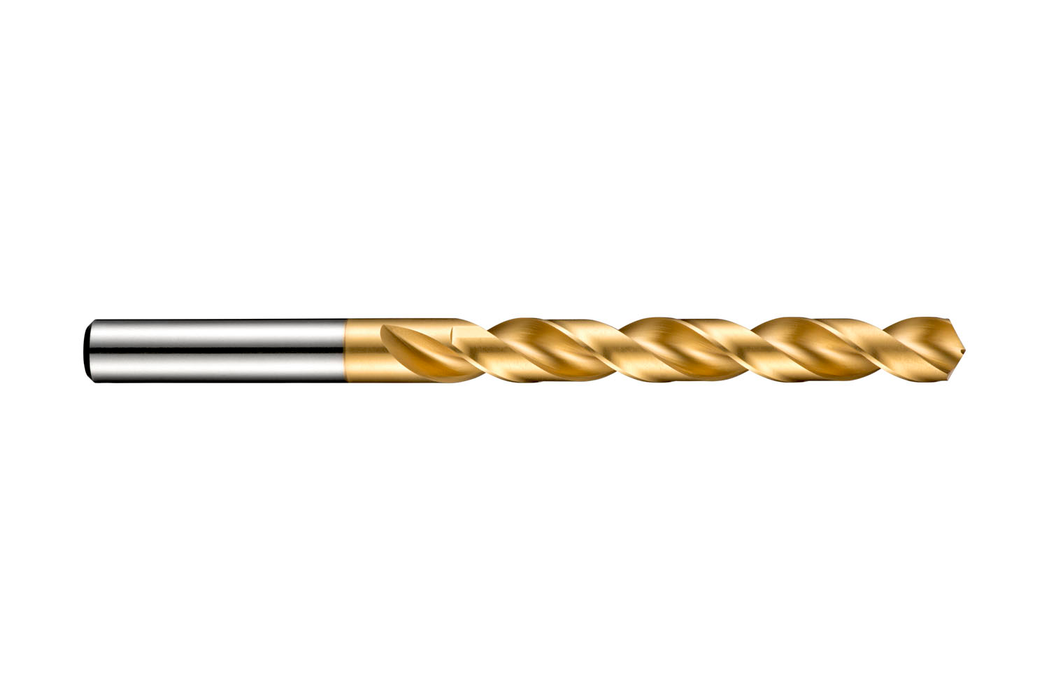

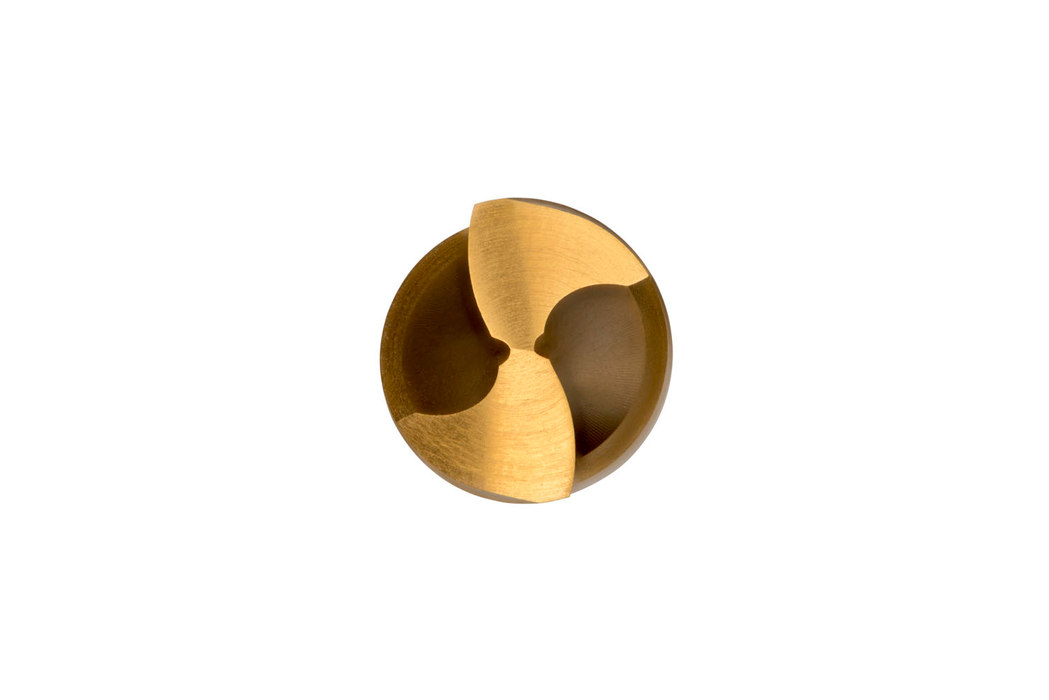

Jobber length ADX drill with straight shank, diameter 8.3mm with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$55.07 - $55.07
$55.07
$55.07 - $55.07
$55.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.3268

Cutting Diameter - mm (DC): 8.3

Drill Point Angle - deg: 130

Flute Length: 2.9528

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.6063

Connetion Diameter: 0.3268

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 37027

EAN: 7320760037027

MFG Part Number: 5970400
