A51013/64

A51013/64

SKU DOR5970403
by Dormer Pramet
Primary Use: Possible Use:

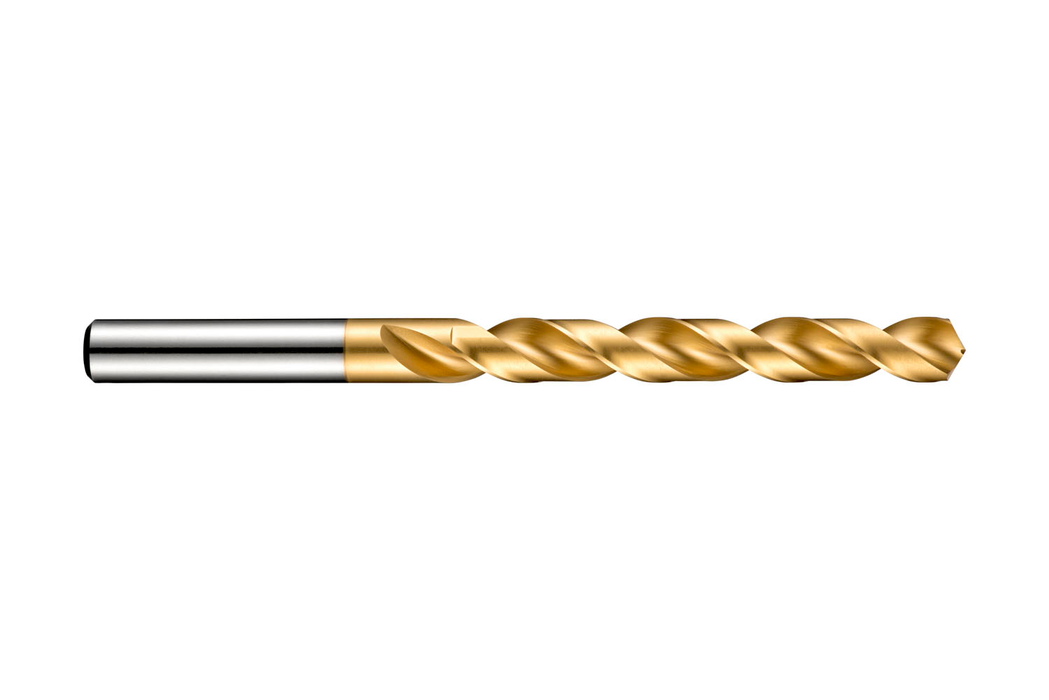

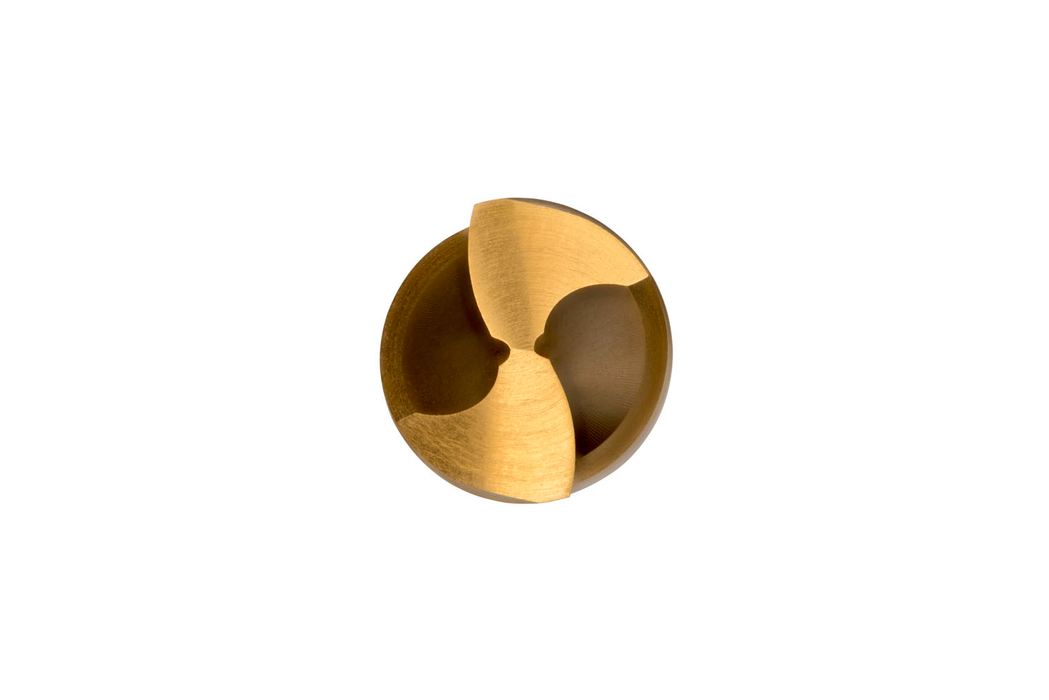

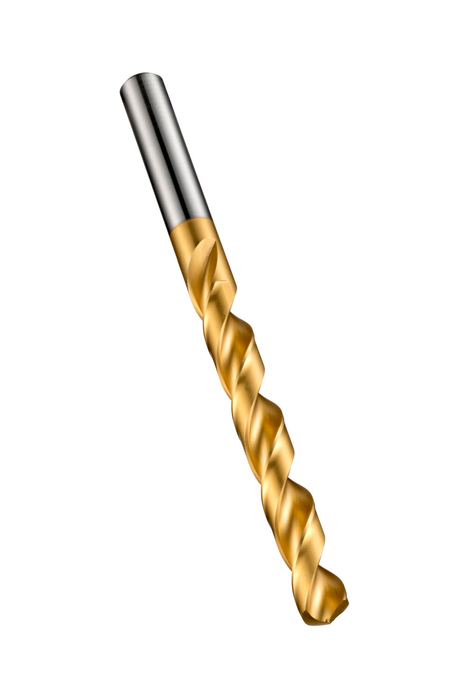

Jobber length ADX drill with straight shank, diameter 0.2031" (13/64) with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$26.10 - $26.10
$26.10
$26.10 - $26.10
$26.10
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

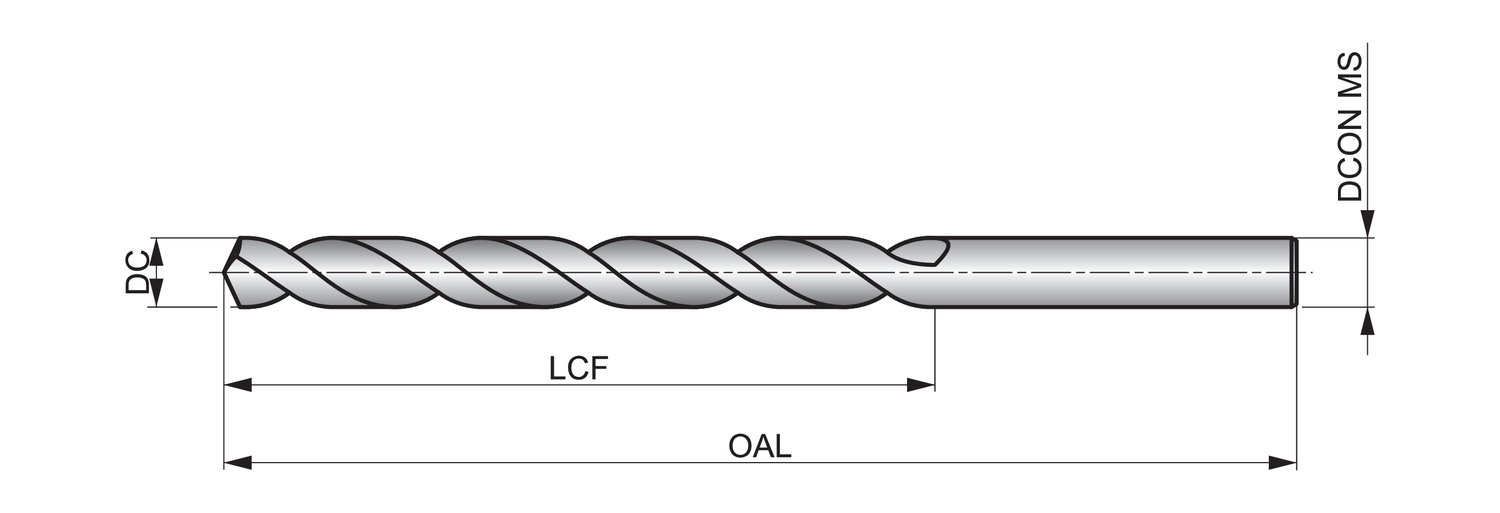

Material: HSS

Cutting Diameter - in (DC): 0.2031

Cutting Diameter - mm (DC): 5.16

Drill Point Angle - deg: 130

Flute Length: 2.0472

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.3858

Connetion Diameter: 0.2031

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 13/64

Grade: TiN

EDP: 169025

EAN: 7320760169025

MFG Part Number: 5970403
