A5109.9

A5109.9

SKU DOR5970442
by Dormer Pramet
Primary Use: Possible Use:

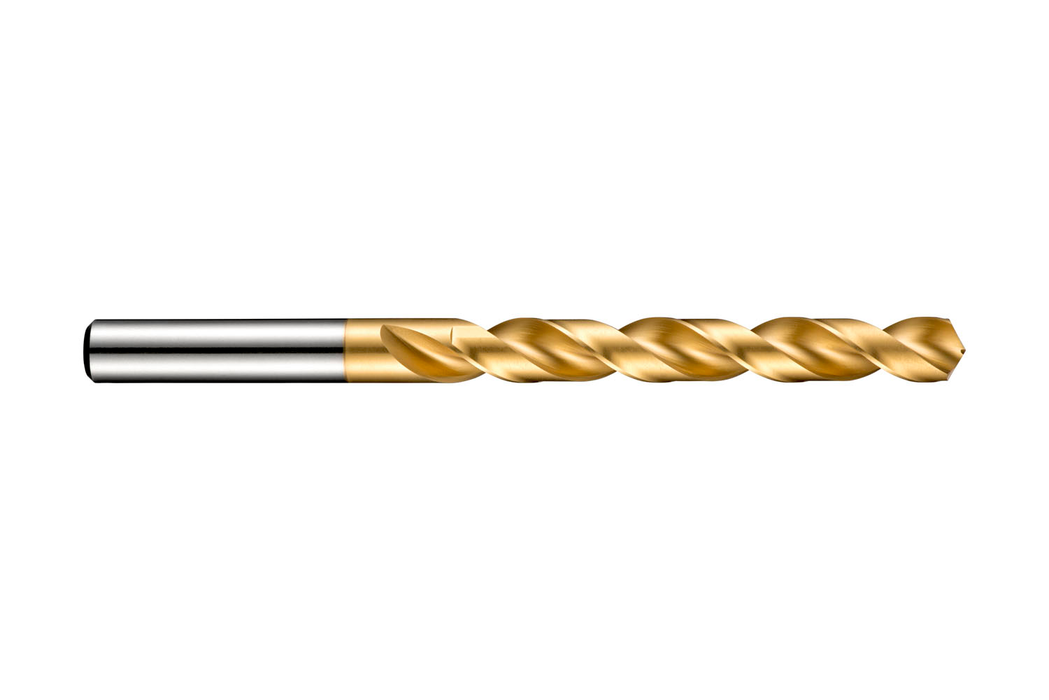

Jobber length ADX drill with straight shank, diameter 9.9mm with an overall length of 133mm and flute length of 87mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$73.36 - $73.36
$73.36
$73.36 - $73.36
$73.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

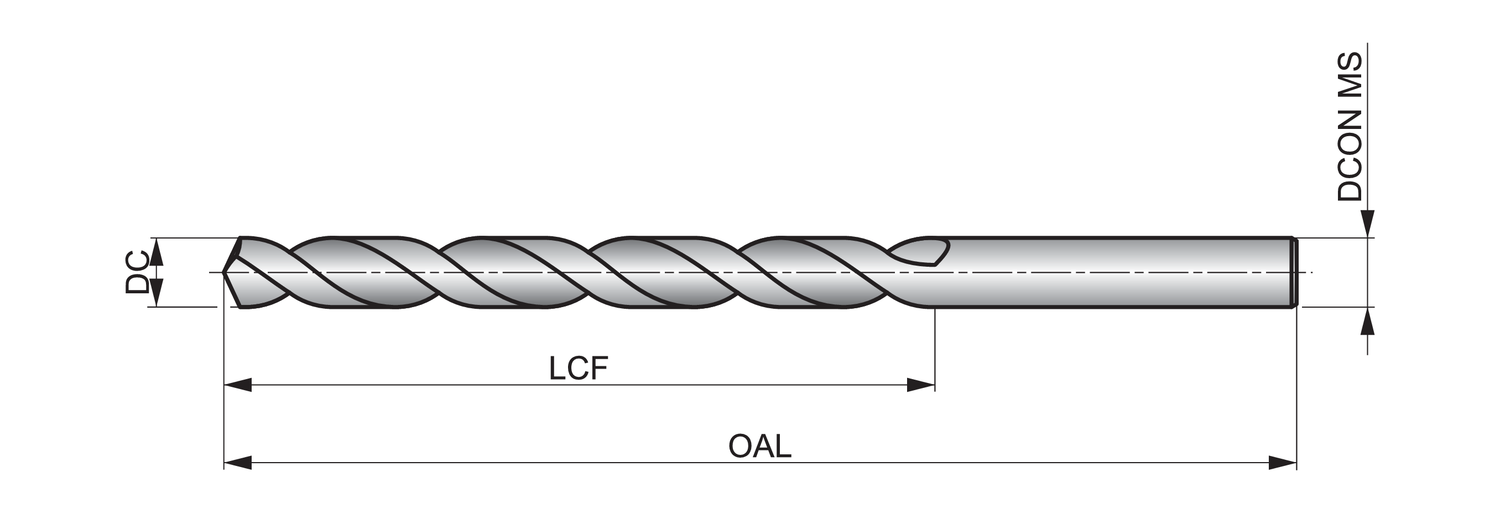

Material: HSS

Cutting Diameter - in (DC): 0.3898

Cutting Diameter - mm (DC): 9.9

Drill Point Angle - deg: 130

Flute Length: 3.4252

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 5.2362

Connetion Diameter: 0.3898

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 37188

EAN: 7320760037188

MFG Part Number: 5970442
