A51031/64

A51031/64

SKU DOR5970467
by Dormer Pramet
Primary Use: Possible Use:

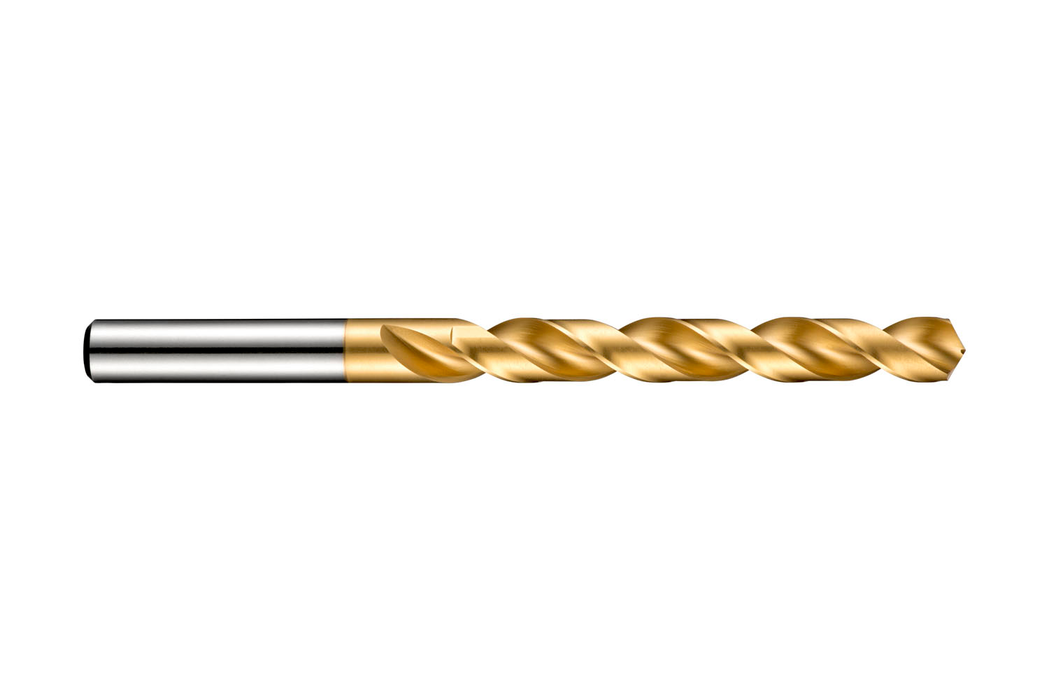

Jobber length ADX drill with straight shank, diameter 0.4844" (31/64) with an overall length of 151mm and flute length of 101mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$104.00 - $104.00
$104.00
$104.00 - $104.00
$104.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

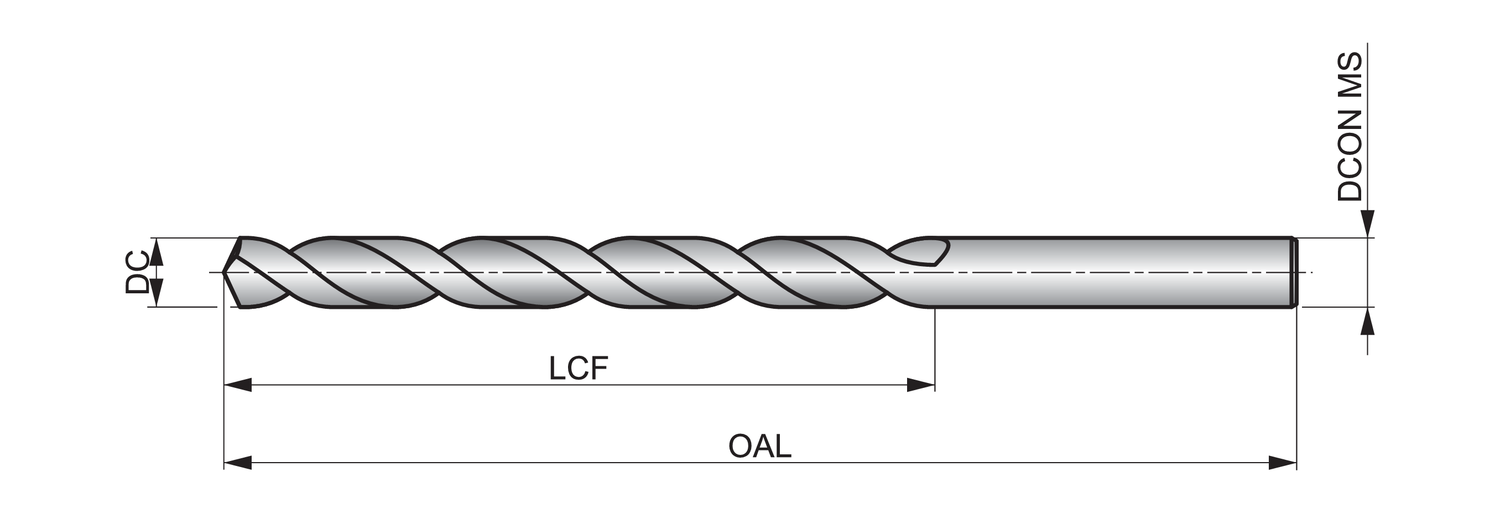

Cutting Diameter - in (DC): 0.4844

Cutting Diameter - mm (DC): 12.3

Drill Point Angle - deg: 130

Flute Length: 3.9764

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 5.9449

Connetion Diameter: 0.4843

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 31/64

Grade: TiN

EDP: 169209

EAN: 7320760169209

MFG Part Number: 5970467
