A5105.5

A5105.5

SKU DOR5970525
by Dormer Pramet
Primary Use: Possible Use:

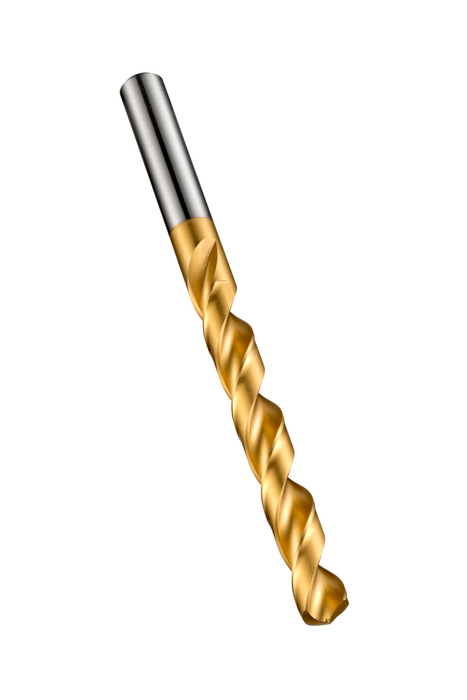

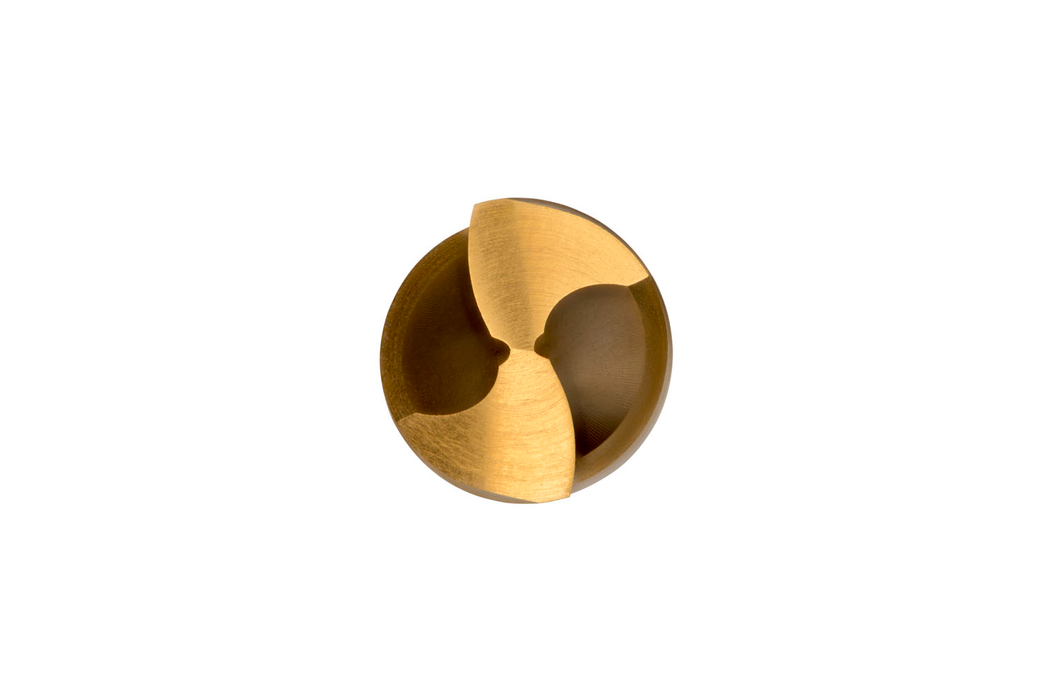

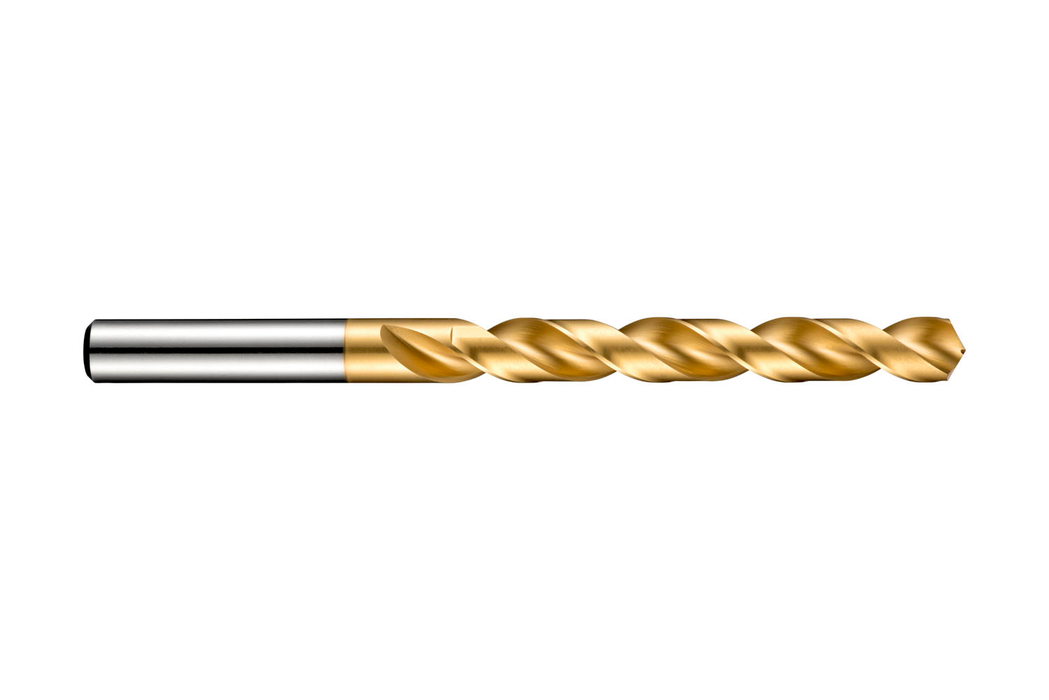

Jobber length ADX drill with straight shank, diameter 5.5mm with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$27.21 - $27.21
$27.21
$27.21 - $27.21
$27.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

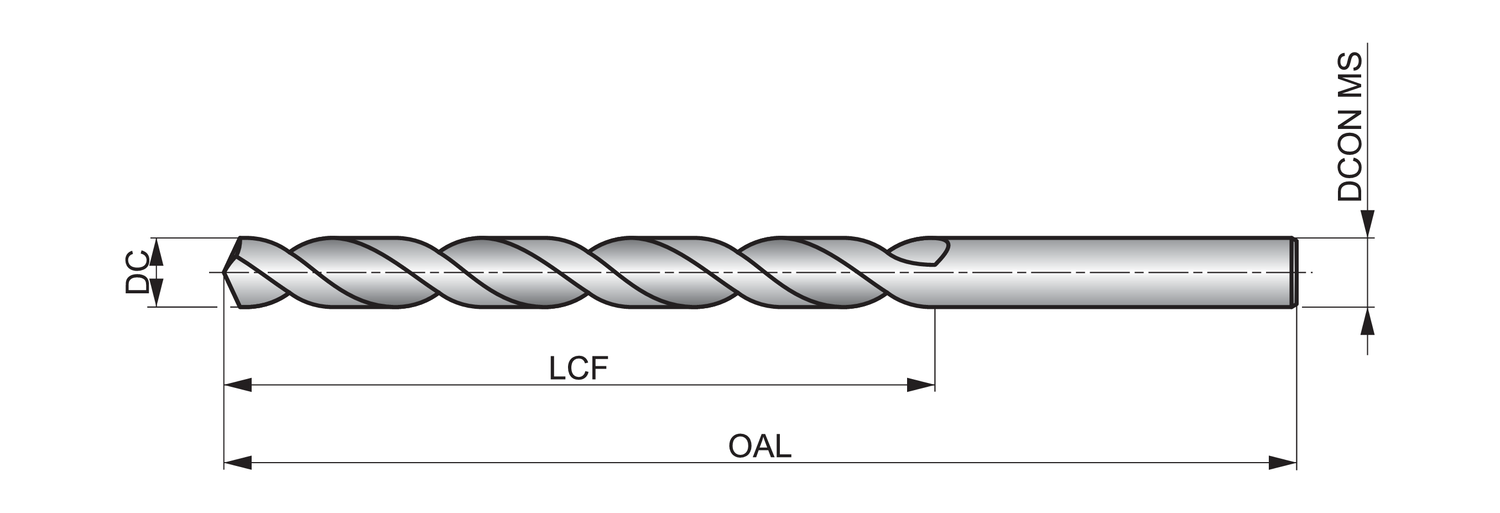

Material: HSS

Cutting Diameter - in (DC): 0.2165

Cutting Diameter - mm (DC): 5.5

Drill Point Angle - deg: 130

Flute Length: 2.2441

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.6614

Connetion Diameter: 0.2165

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 36747

EAN: 7320760036747

MFG Part Number: 5970525
