A5203.8

A5203.8

SKU DOR5970576
by Dormer Pramet
Primary Use:

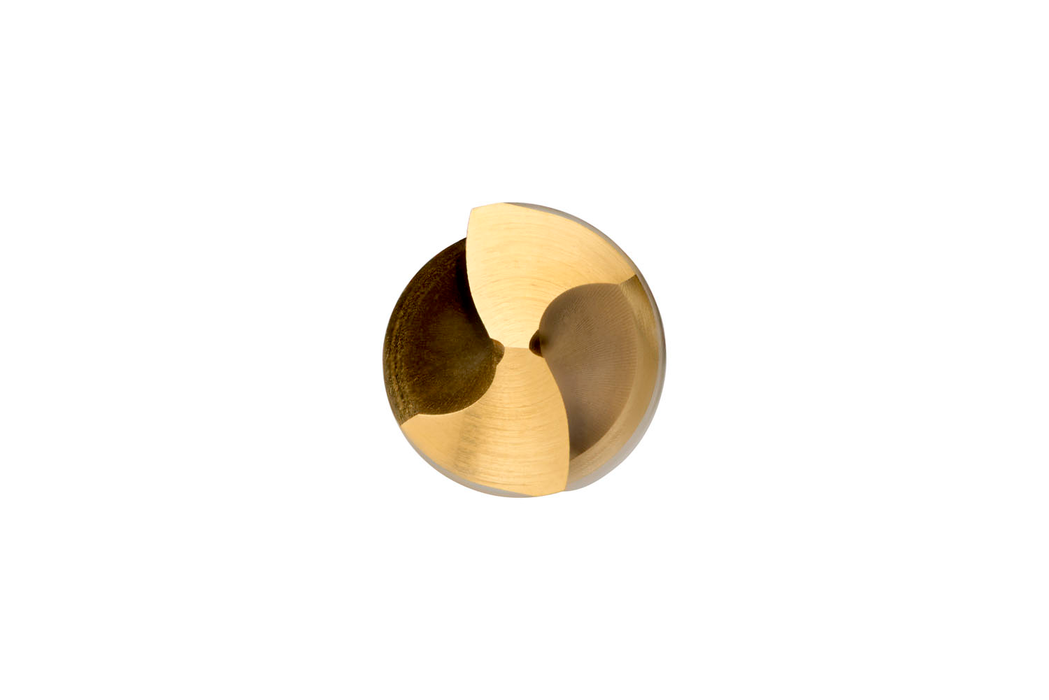

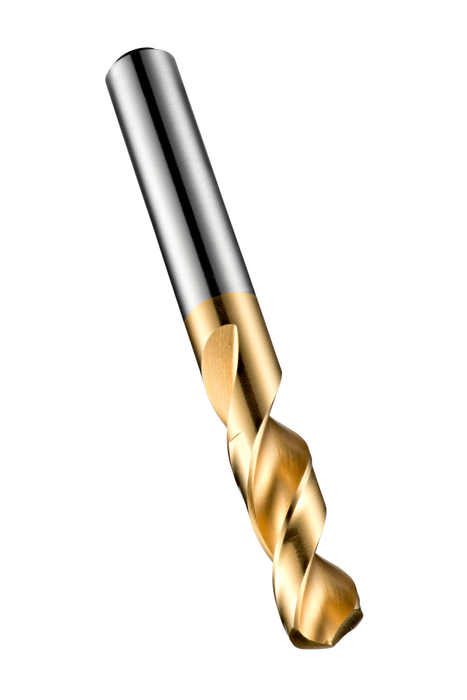

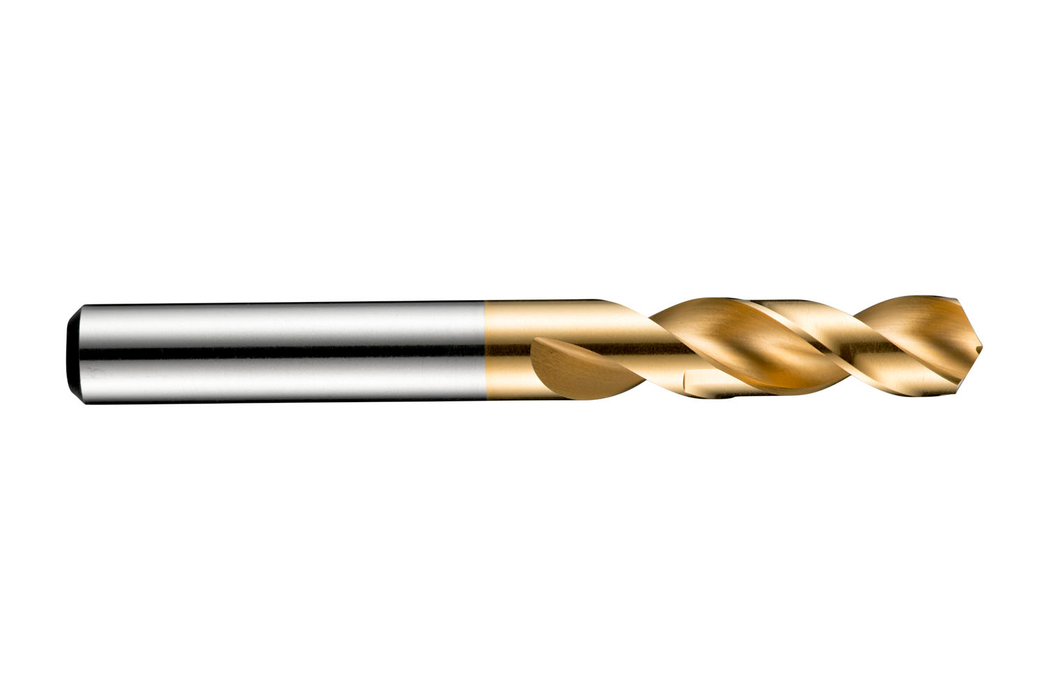

Stub length ADX drill with straight shank, diameter 3.8mm with an overall length of 55mm and flute length of 22mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$23.59 - $23.59
$23.59
$23.59 - $23.59
$23.59
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

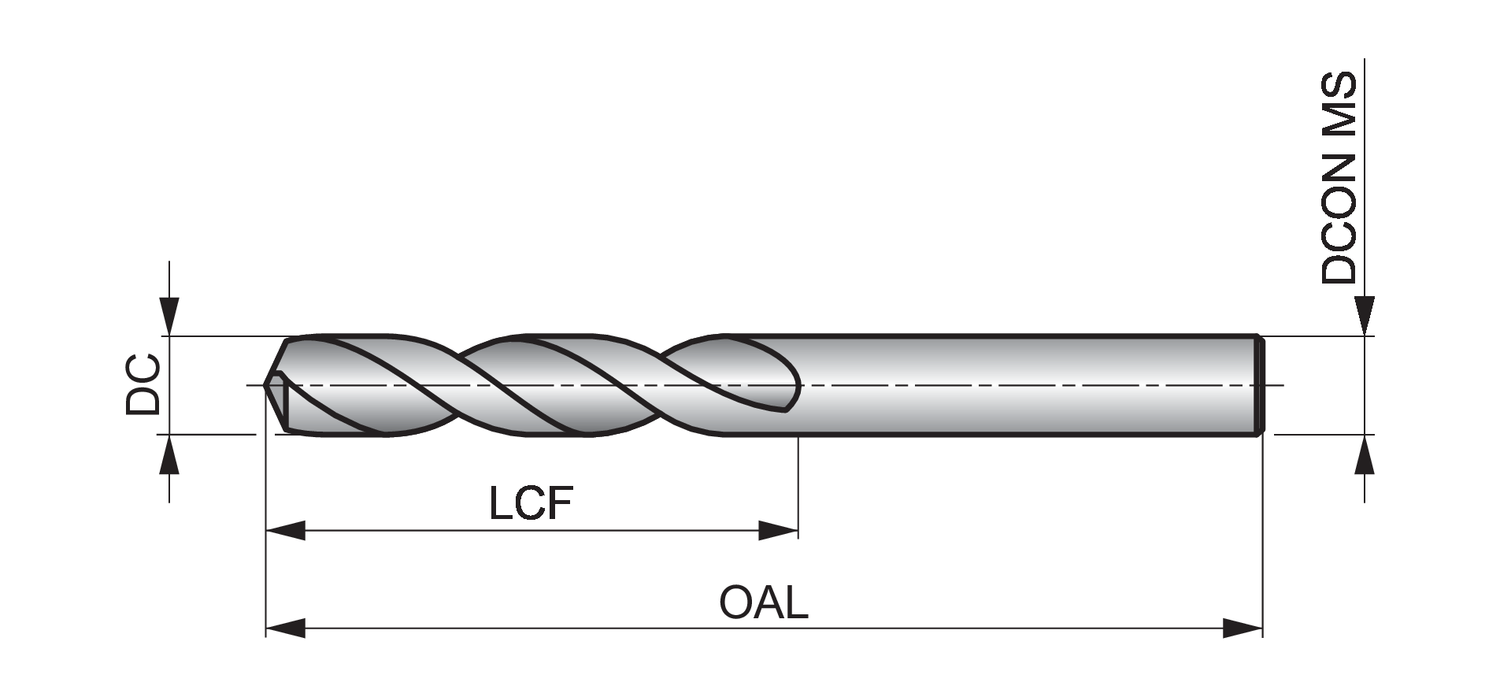

Cutting Diameter - in (DC): 0.1496

Cutting Diameter - mm (DC): 3.8

Drill Point Angle - deg: 130

Flute Length: 0.8661

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.1654

Connetion Diameter: 0.1496

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 38987

EAN: 7320760038987

MFG Part Number: 5970576
