A9001/16

A9001/16

SKU DOR5970644
by Dormer Pramet
Primary Use: Possible Use:

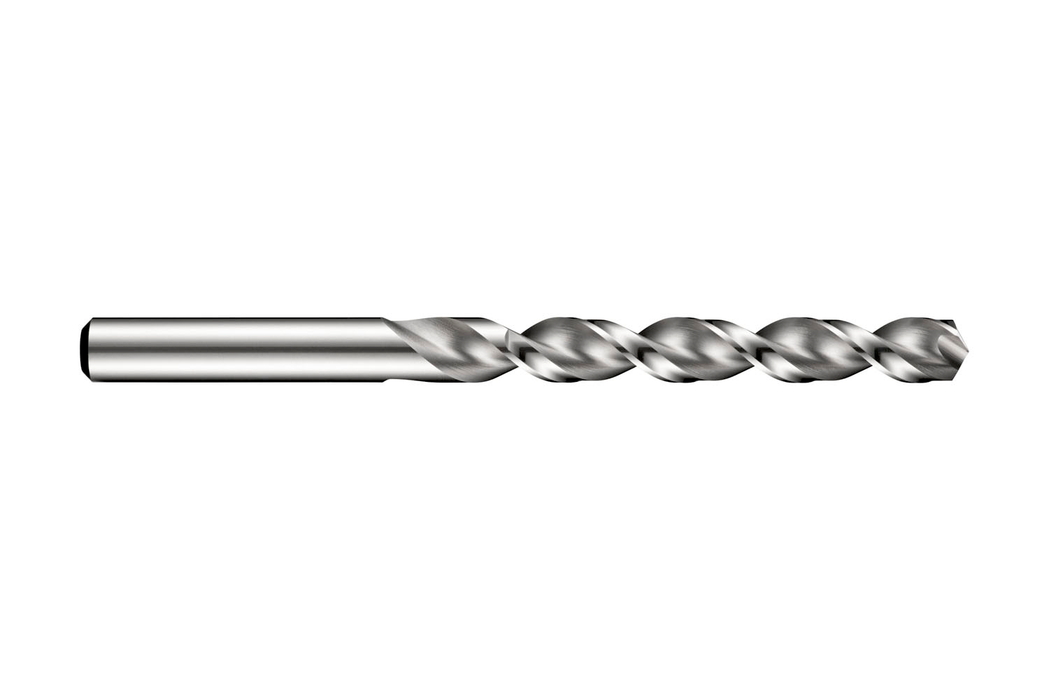

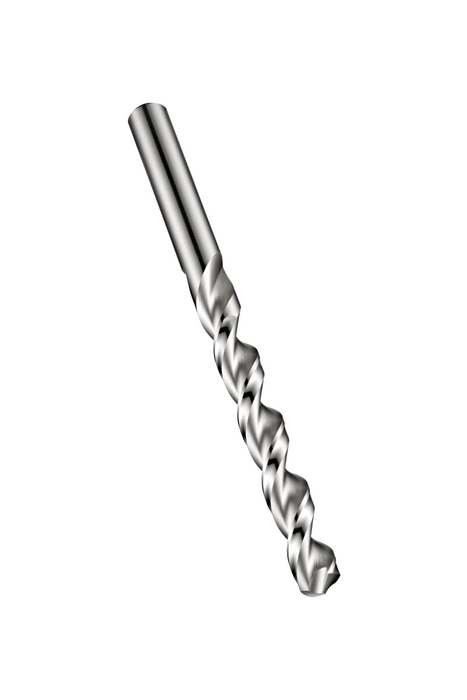

Jobber length PFX drill with straight shank, diameter 0.0625" (1/16) with an overall length of 48mm and flute length of 22mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$13.33 - $13.33
$13.33
$13.33 - $13.33
$13.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

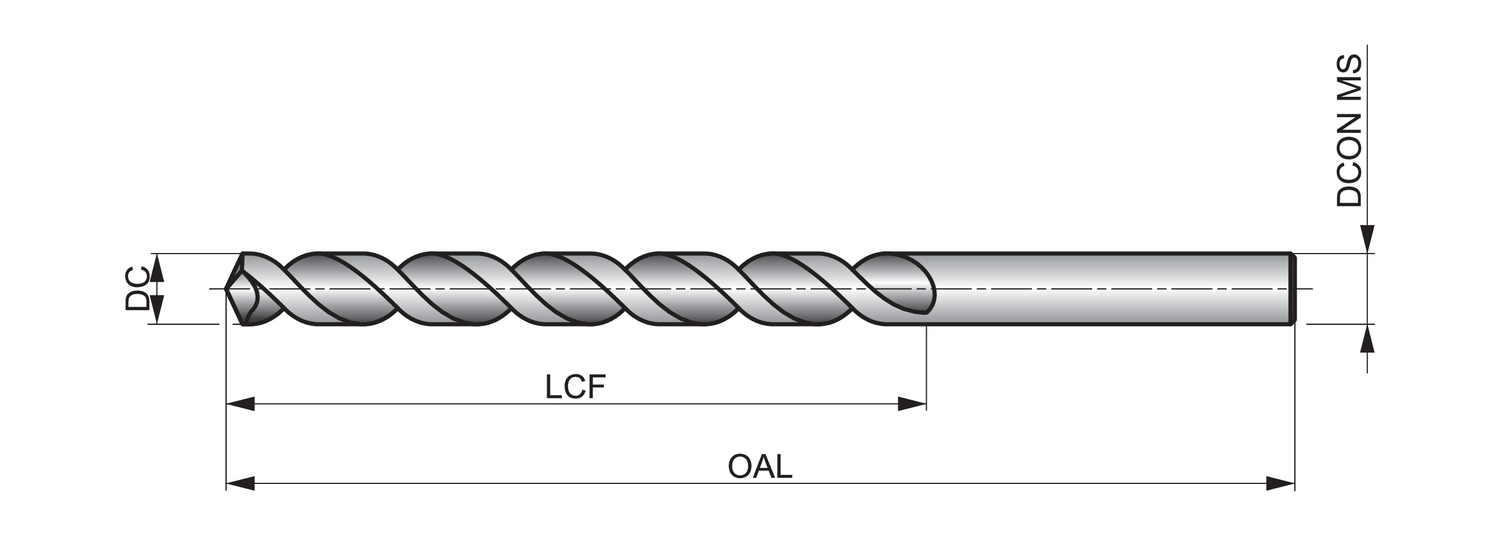

Cutting Diameter - in (DC): 0.0625

Cutting Diameter - mm (DC): 1.59

Drill Point Angle - deg: 130

Flute Length: 0.8661

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 1.8898

Connetion Diameter: 0.0626

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1/16

Grade: Bright

EDP: 46340

EAN: 7320760046340

MFG Part Number: 5970644
