A90011/64

A90011/64

SKU DOR5970728
by Dormer Pramet
Primary Use: Possible Use:

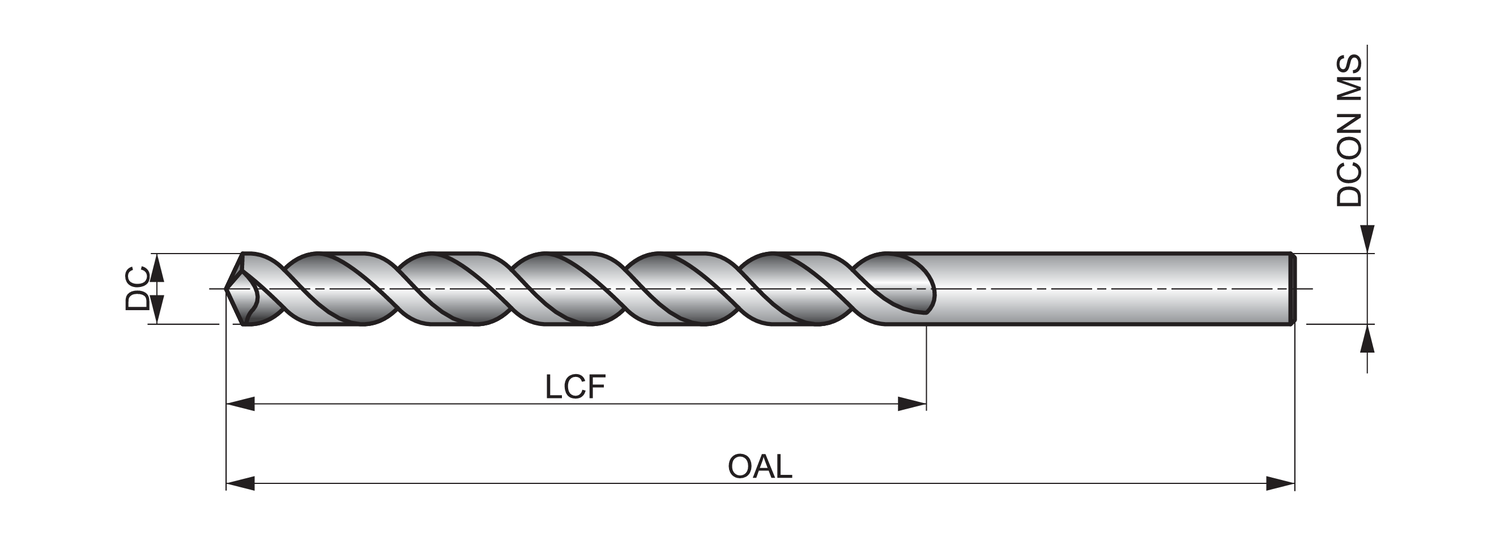

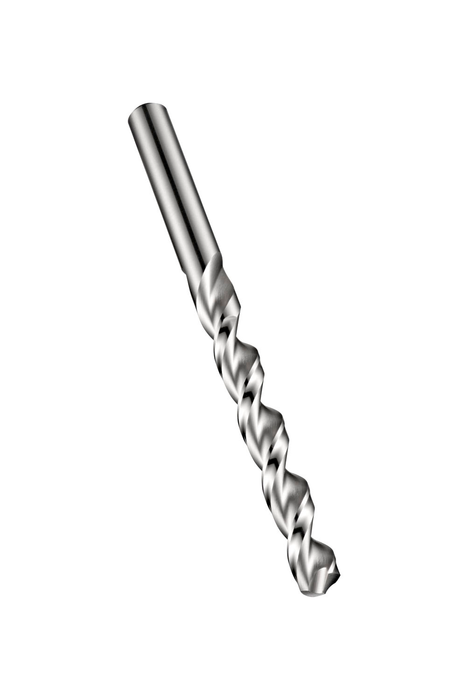

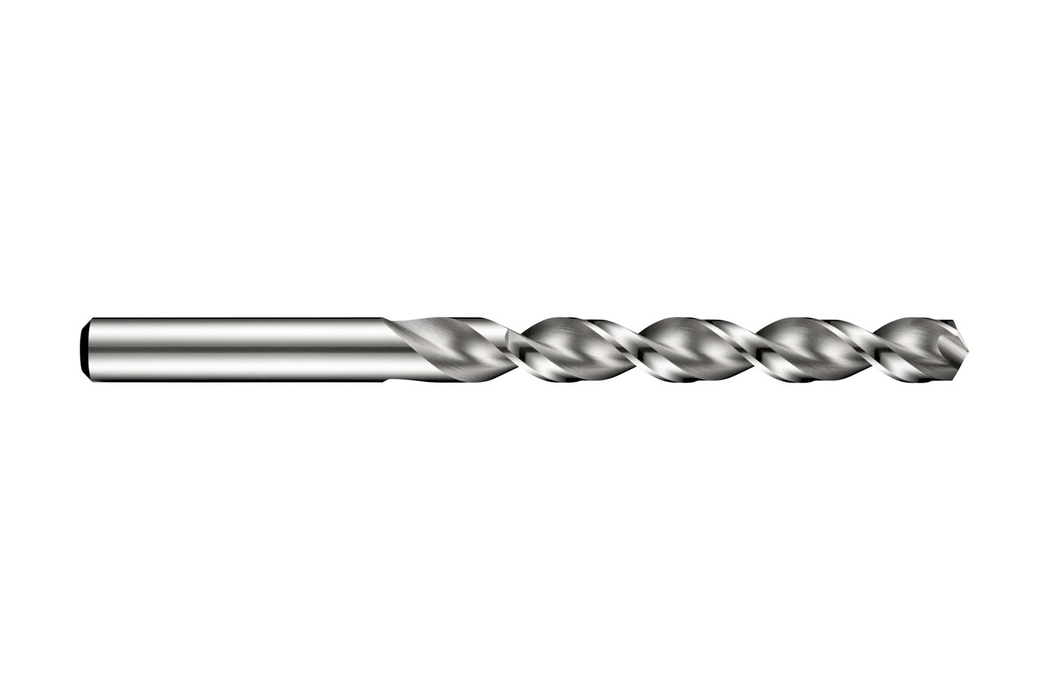

Jobber length PFX drill with straight shank, diameter 0.1719" (11/64) with an overall length of 83mm and flute length of 54mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$15.70 - $15.70
$15.70
$15.70 - $15.70
$15.70
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.1719

Cutting Diameter - mm (DC): 4.37

Drill Point Angle - deg: 130

Flute Length: 2.126

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 3.2677

Connetion Diameter: 0.172

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 11/64

Grade: Bright

EDP: 46692

EAN: 7320760046692

MFG Part Number: 5970728
