A7771.3

A7771.3

SKU DOR5970969
by Dormer Pramet
Primary Use: Possible Use:

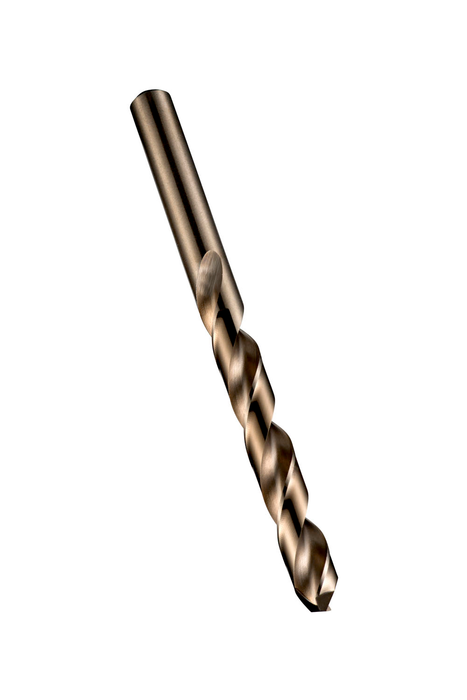

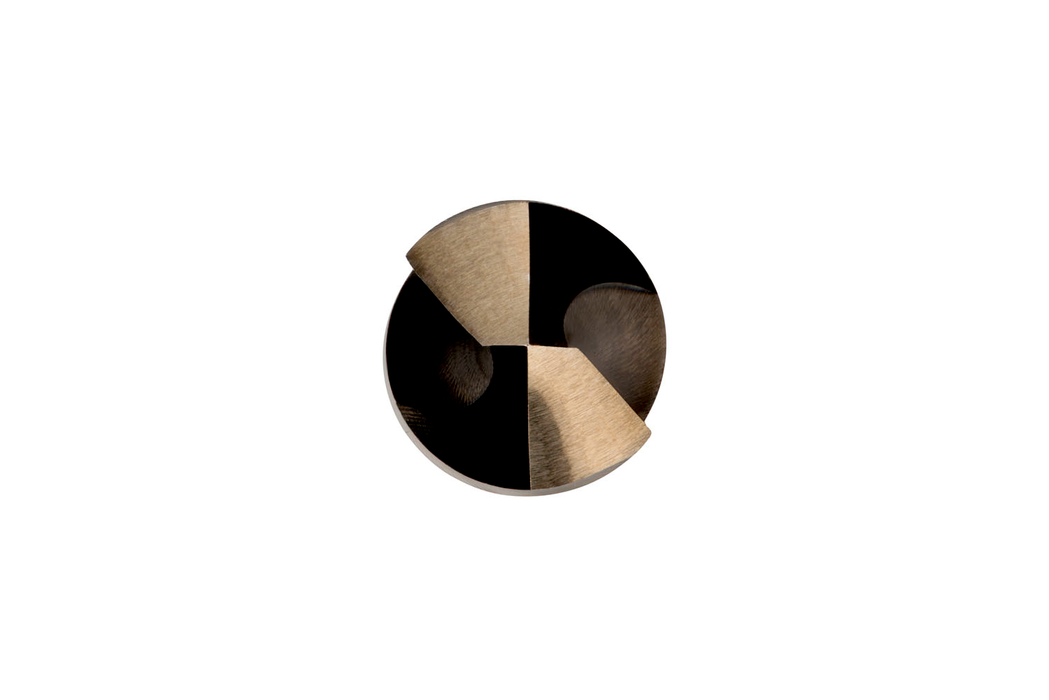

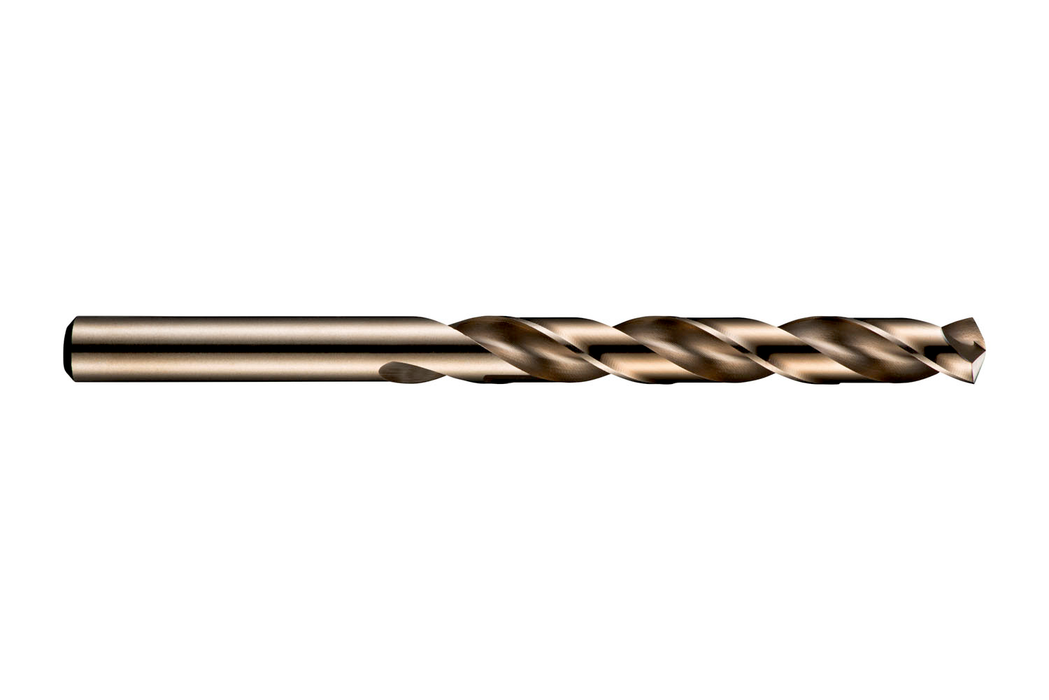

Jobber length drill with straight shank, diameter 1.3mm with an overall length of 38mm and flute length of 16mm according to DIN 338 standard with 135° 4-facet point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$4.67 - $4.67
$4.67
$4.67 - $4.67
$4.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.0512

Cutting Diameter - mm (DC): 1.3

Drill Point Angle - deg: 135

Flute Length: 0.6299

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 1.4961

Connetion Diameter: 0.0512

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bronze

EDP: 374450

EAN: 7320760374450

MFG Part Number: 5970969
