A77725/64

A77725/64

SKU DOR5971013
by Dormer Pramet
Primary Use: Possible Use:

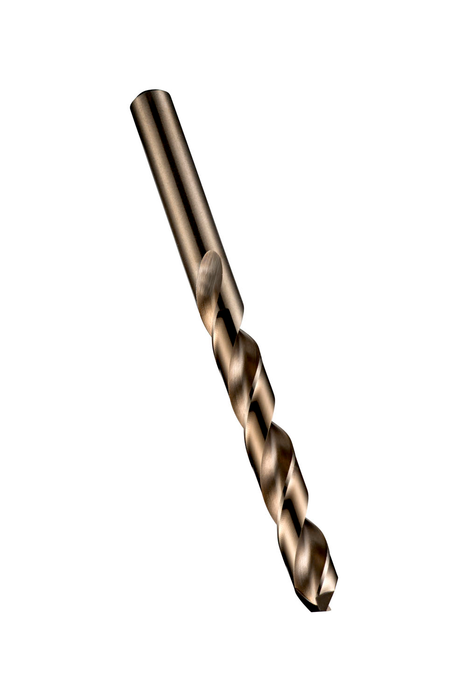

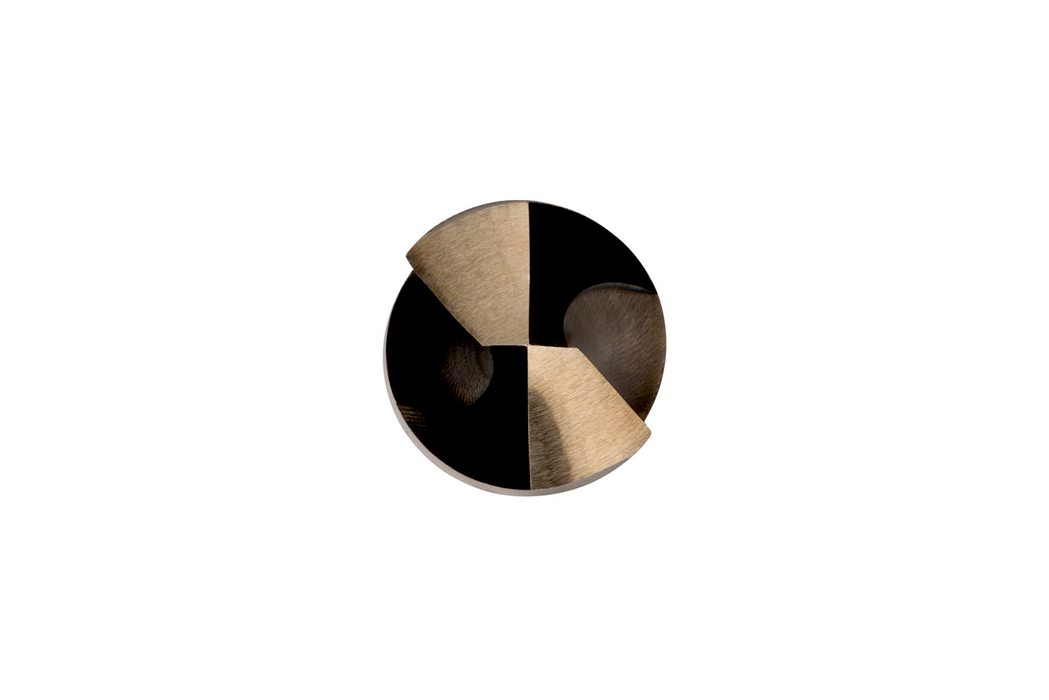

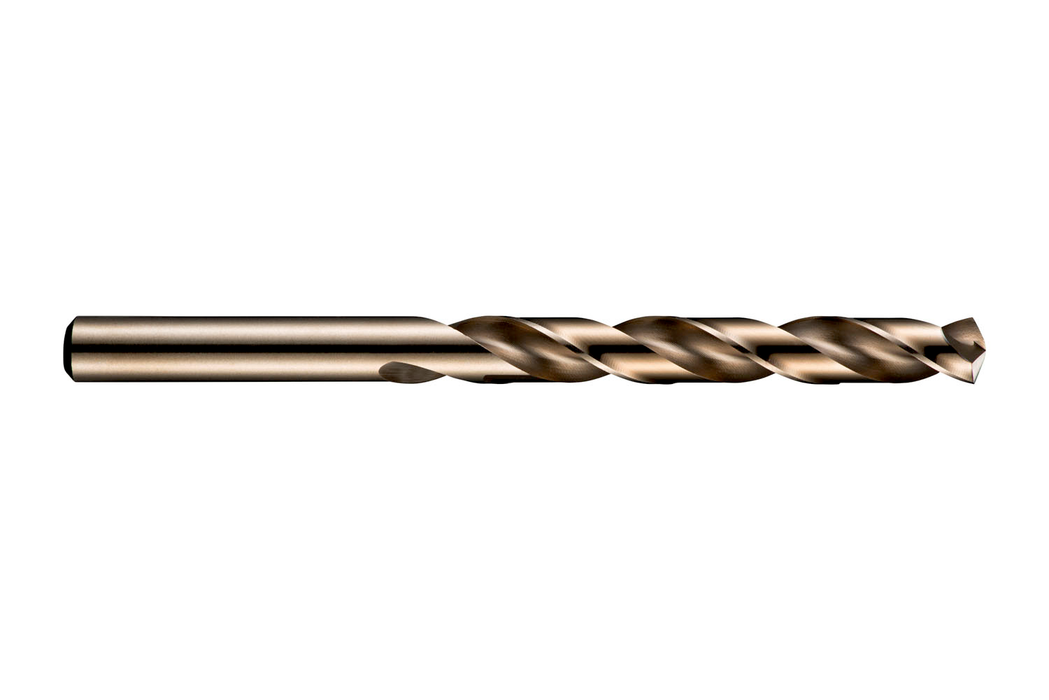

Jobber length drill with straight shank, diameter 0.3906" (25/64) with an overall length of 133mm and flute length of 87mm according to DIN 338 standard with 135° split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$53.44 - $53.44
$53.44
$53.44 - $53.44
$53.44
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.3906

Cutting Diameter - mm (DC): 9.92

Drill Point Angle - deg: 135

Flute Length: 3.4252

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 5.2362

Connetion Diameter: 0.3906

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 25/64

Grade: Bronze

EDP: 374948

EAN: 7320760374948

MFG Part Number: 5971013
