A9009/64

A9009/64

SKU DOR5971016
by Dormer Pramet
Primary Use: Possible Use:

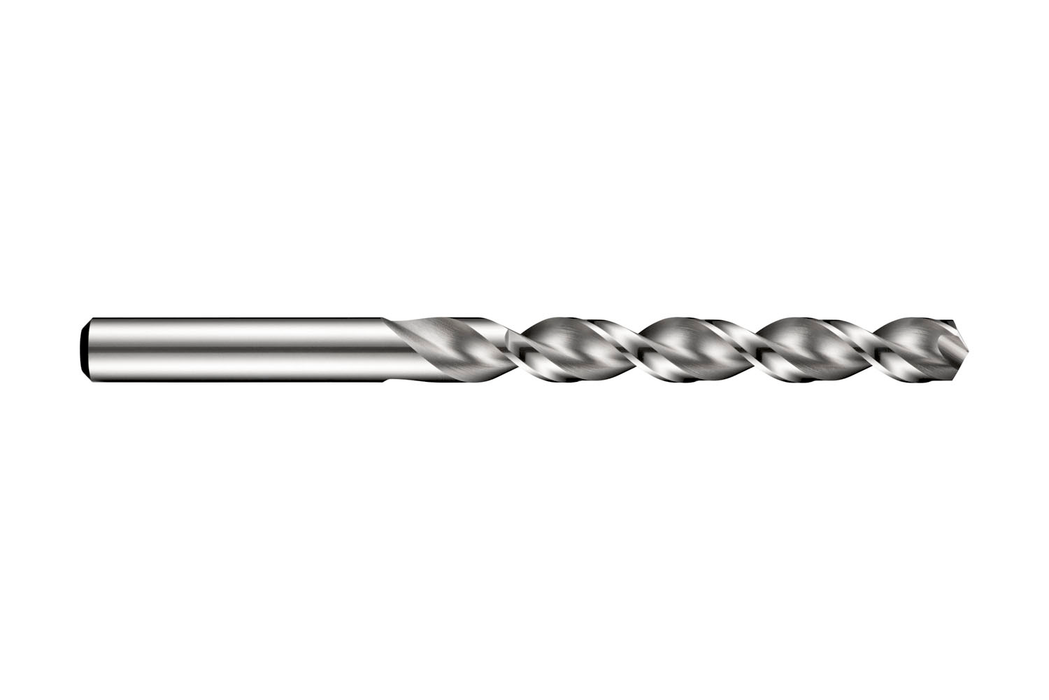

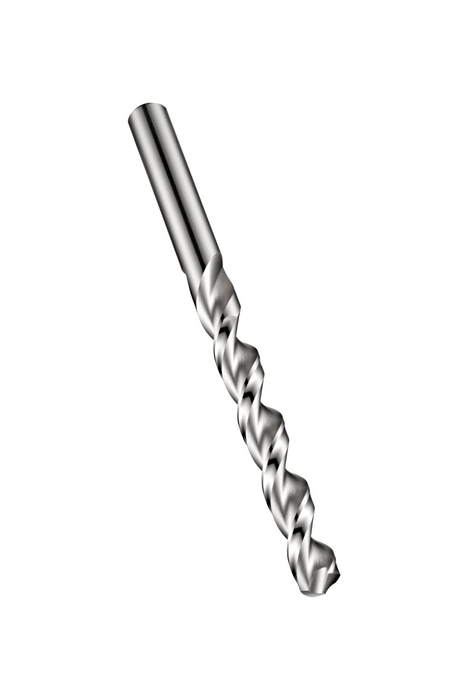

Jobber length PFX drill with straight shank, diameter 0.1406" (9/64) with an overall length of 73mm and flute length of 44mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$13.00 - $13.00
$13.00
$13.00 - $13.00
$13.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

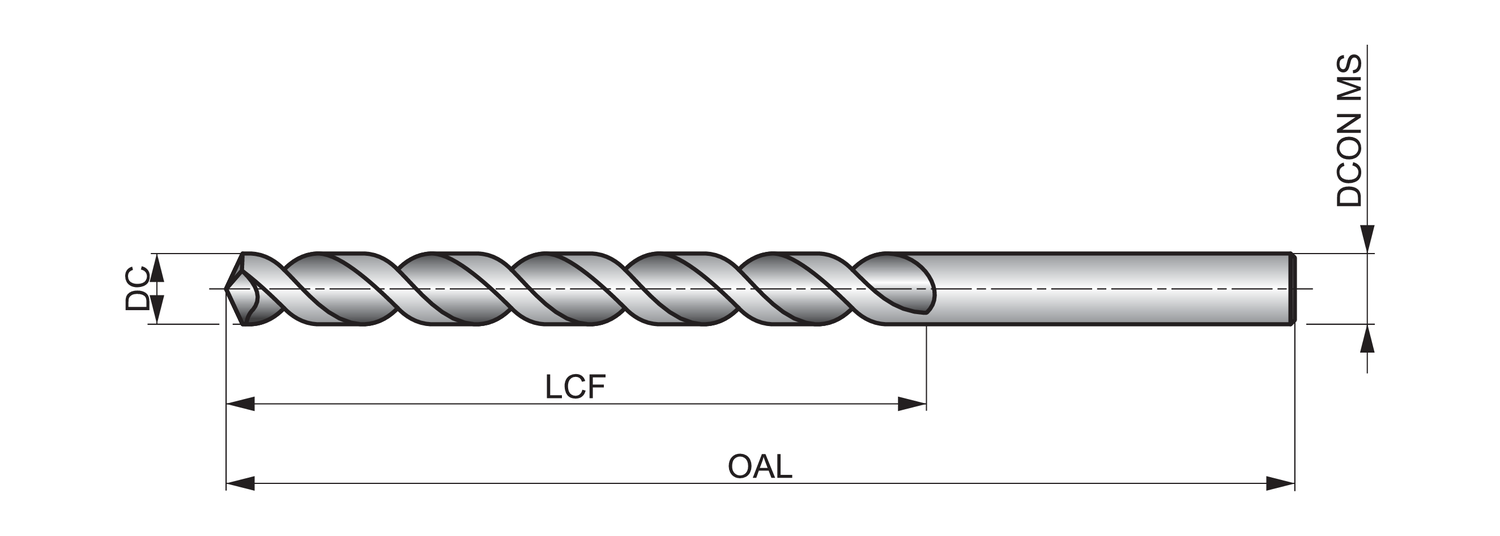

Material: HSS-E

Cutting Diameter - in (DC): 0.1406

Cutting Diameter - mm (DC): 3.57

Drill Point Angle - deg: 130

Flute Length: 1.7323

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 2.874

Connetion Diameter: 0.1406

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/64

Grade: Bright

EDP: 46593

EAN: 7320760046593

MFG Part Number: 5971016
