A7775/16

A7775/16

SKU DOR5971159
by Dormer Pramet
Primary Use: Possible Use:

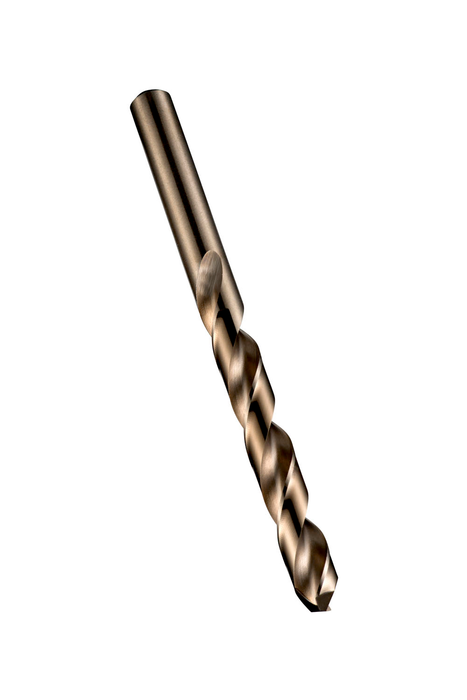

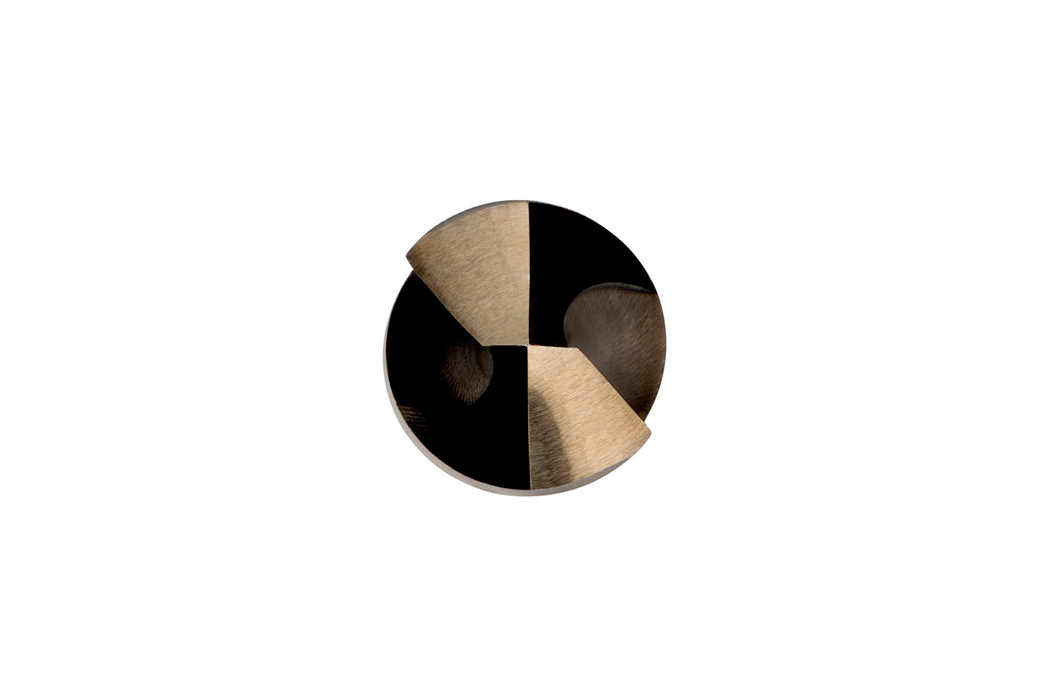

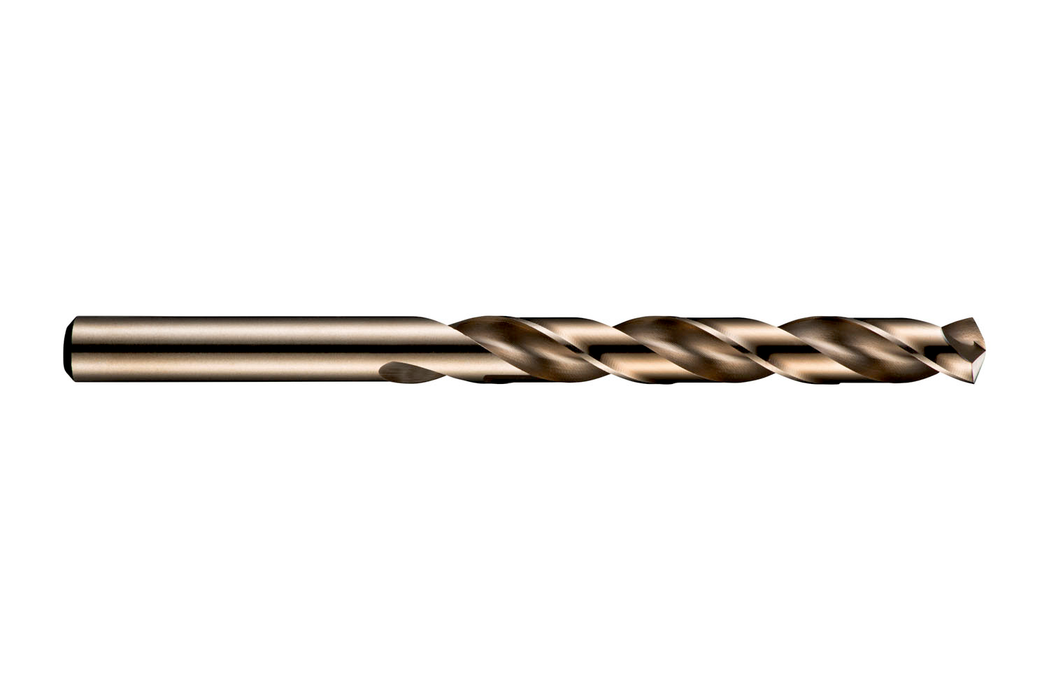

Jobber length drill with straight shank, diameter 0.3125" (5/16) with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 135° split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$29.44 - $29.44
$29.44
$29.44 - $29.44
$29.44
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.3125

Cutting Diameter - mm (DC): 7.94

Drill Point Angle - deg: 135

Flute Length: 2.9528

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.6063

Connetion Diameter: 0.3126

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/16

Grade: Bronze

EDP: 375297

EAN: 7320760375297

MFG Part Number: 5971159
