A90047/64

A90047/64

SKU DOR5971169
by Dormer Pramet
Primary Use: Possible Use:

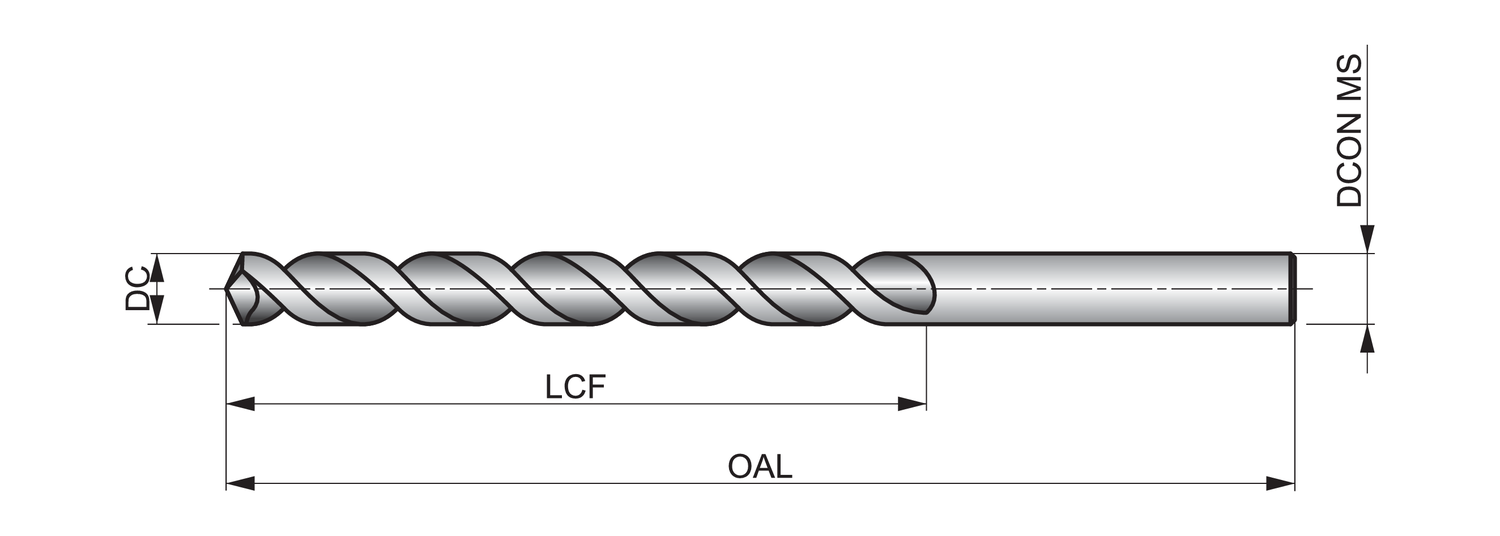

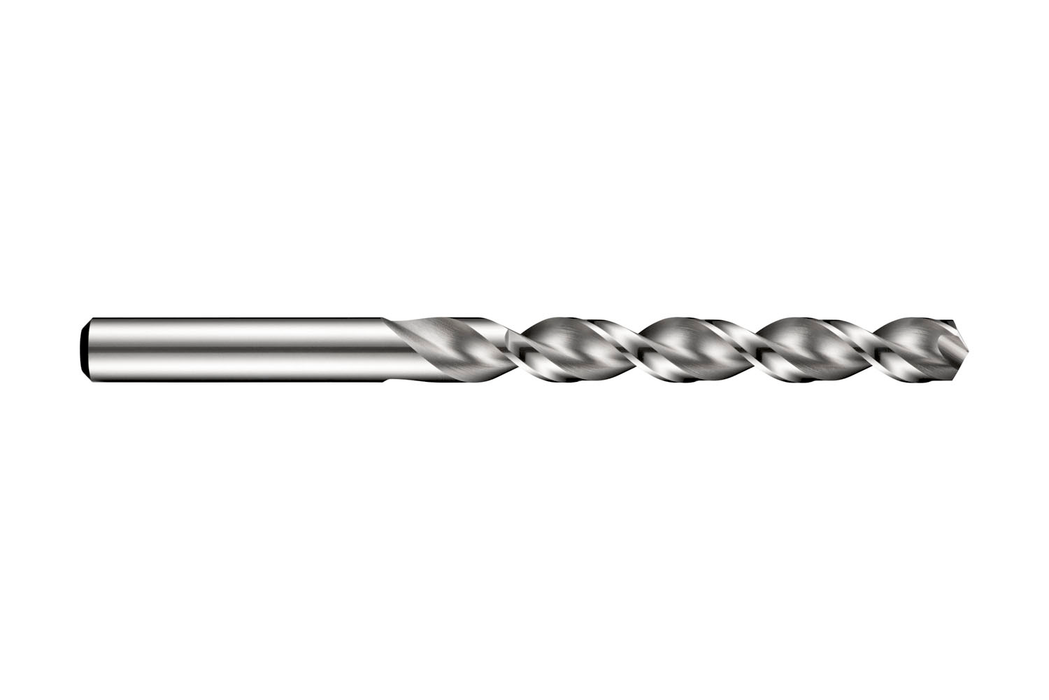

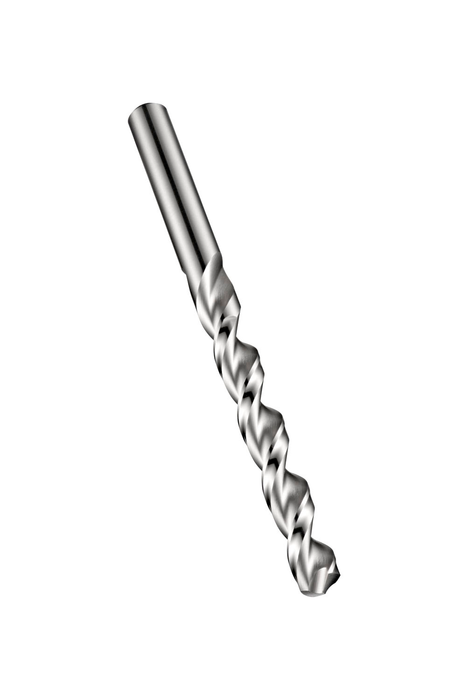

Jobber length PFX drill with straight shank, diameter 0.7344" (47/64) with an overall length of 198mm and flute length of 135mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$265.57 - $265.57
$265.57
$265.57 - $265.57
$265.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.7344

Cutting Diameter - mm (DC): 18.65

Drill Point Angle - deg: 130

Flute Length: 5.315

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 7.7953

Connetion Diameter: 0.7343

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 47/64

Grade: Bright

EDP: 634486

EAN: 7320760634486

MFG Part Number: 5971169
