A7201.05

A7201.05

SKU DOR5971191
by Dormer Pramet
Primary Use: Possible Use:

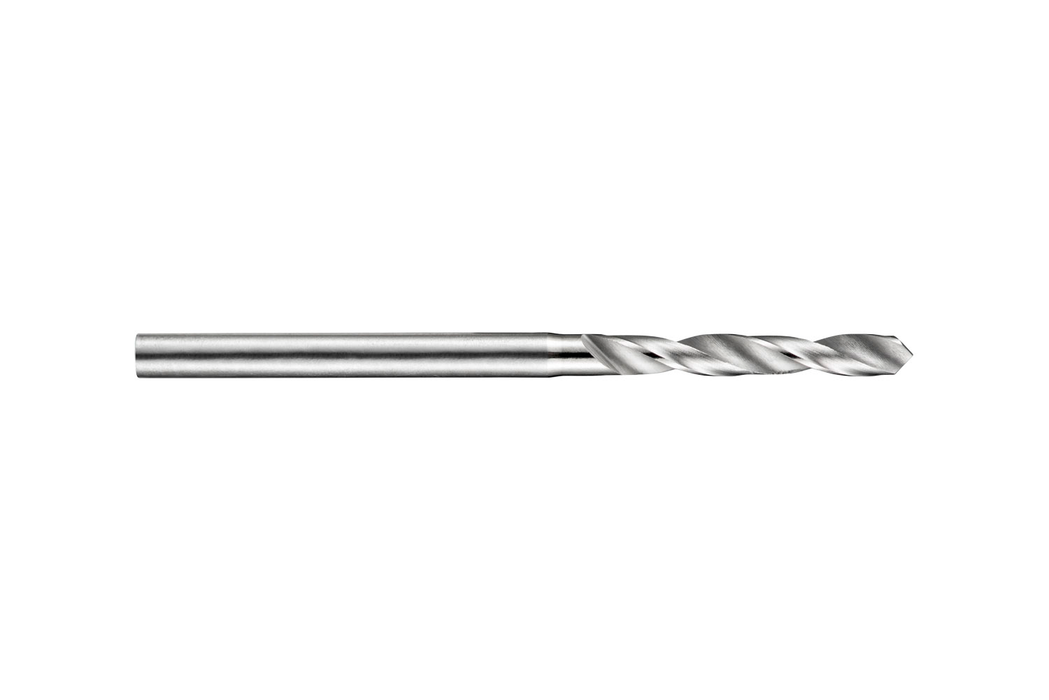

Micro drill with straight shank, diameter 1.05mm with an overall length of 25mm and flute length of 8mm according to DIN 1899 standard with 118° point angle, cobalt based HSS-E with bright finish for 2.5xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$23.69 - $23.69
$23.69
$23.69 - $23.69
$23.69
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

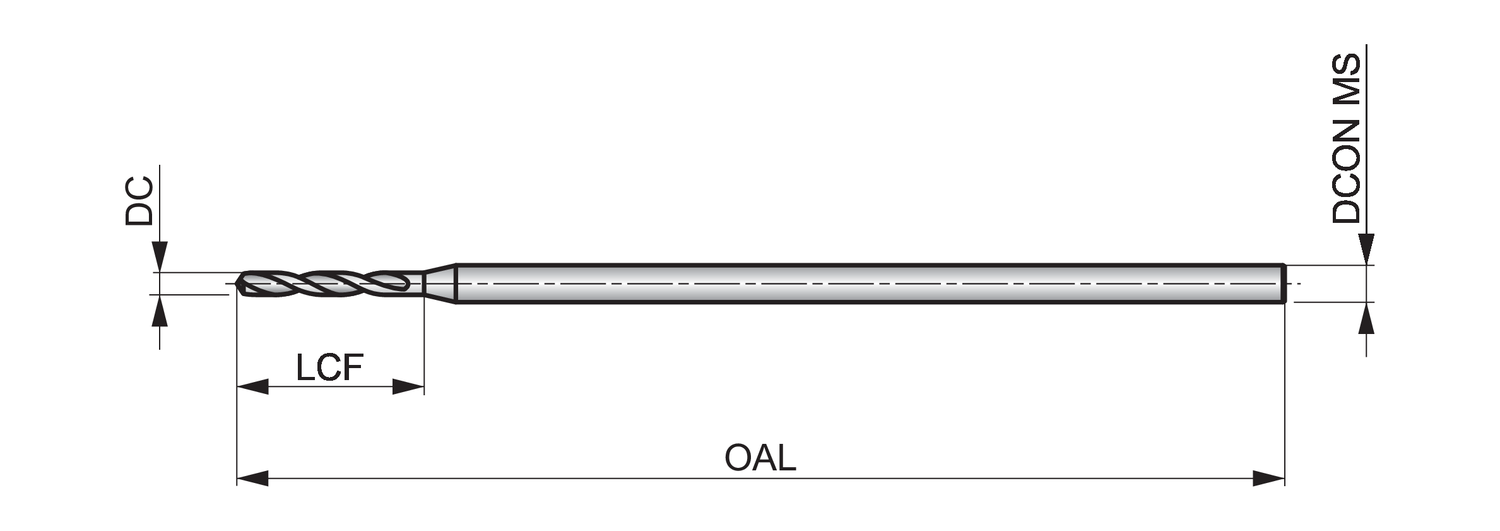

Material: HSS-E

Cutting Diameter - in (DC): 0.0413

Cutting Diameter - mm (DC): 1.05

Drill Point Angle - deg: 118

Flute Length: 0.315

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 0.9843

Connetion Diameter: 0.0591

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 612163

EAN: 7320760612163

MFG Part Number: 5971191
