A720.18

A720.18

SKU DOR5971205
by Dormer Pramet
Primary Use: Possible Use:

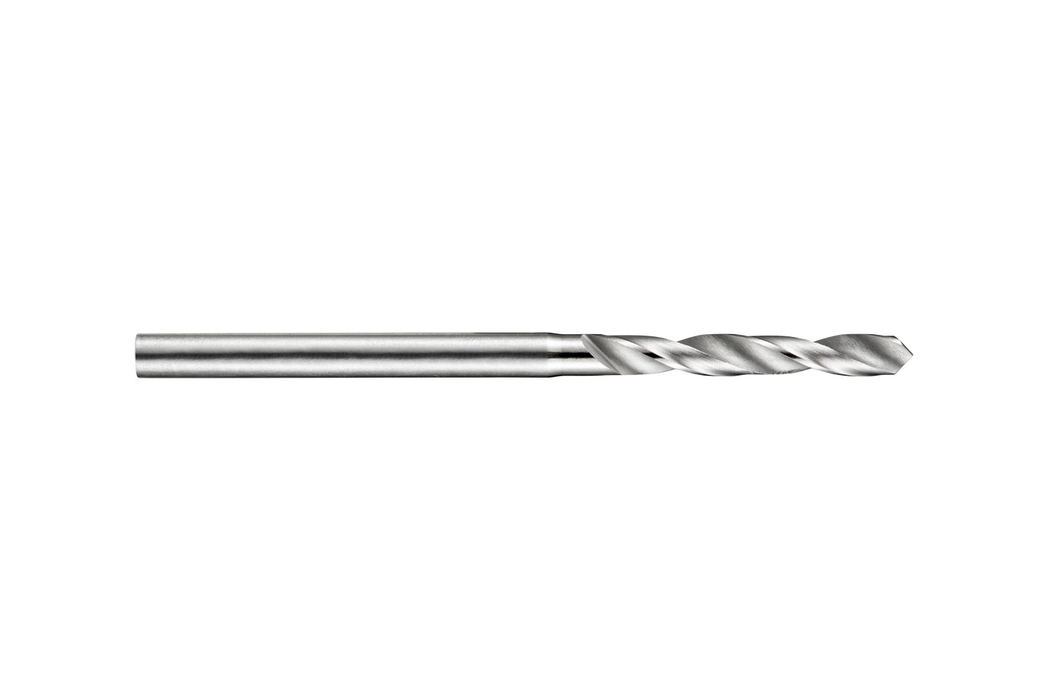

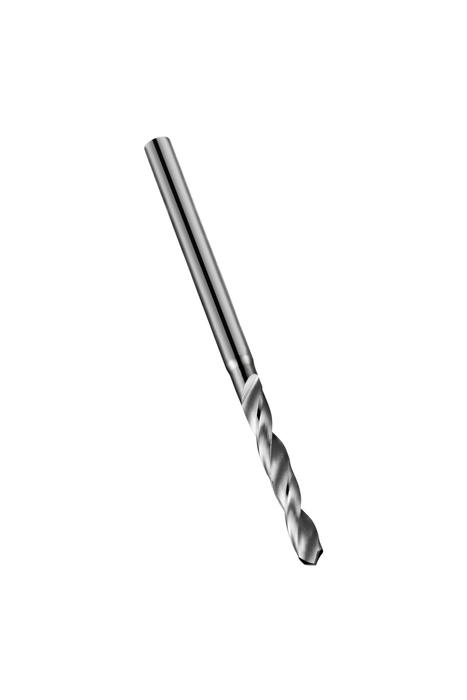

Micro drill with straight shank, diameter 0.18mm with an overall length of 25mm and flute length of 1.4mm according to DIN 1899 standard with 118° point angle, cobalt based HSS-E with bright finish for 2.5xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.39 - $17.39
$17.39
$17.39 - $17.39
$17.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

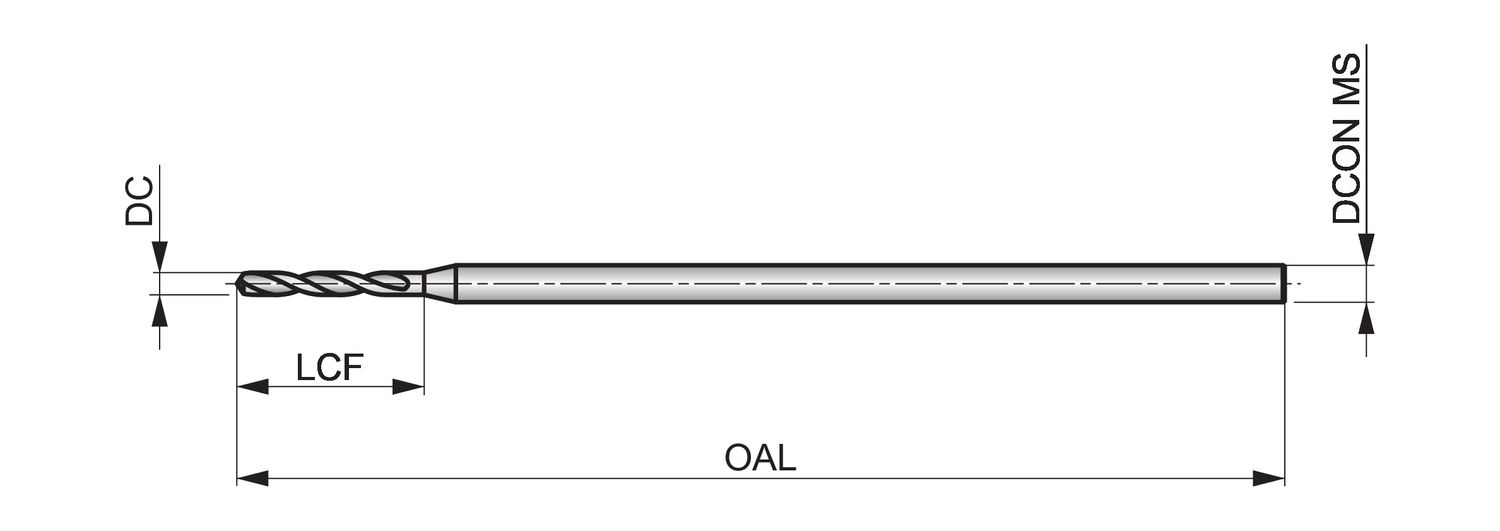

Material: HSS-E

Cutting Diameter - in (DC): 0.007

Cutting Diameter - mm (DC): 0.18

Drill Point Angle - deg: 118

Flute Length: 0.0551

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 0.9843

Connetion Diameter: 0.0394

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 44995

EAN: 7320760044995

MFG Part Number: 5971205
