A9005/32

A9005/32

SKU DOR5971240
by Dormer Pramet
Primary Use: Possible Use:

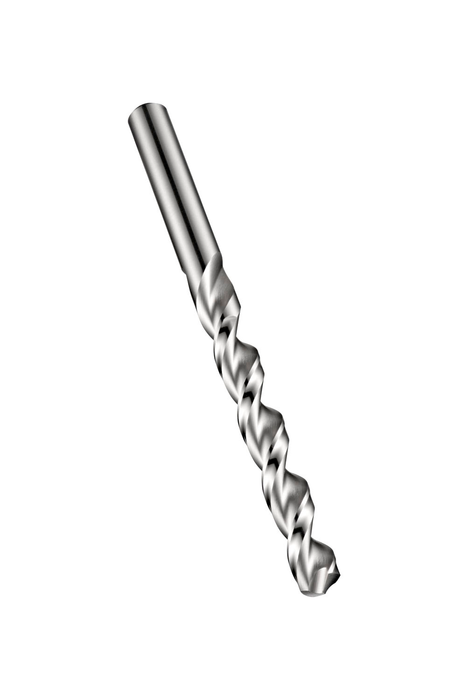

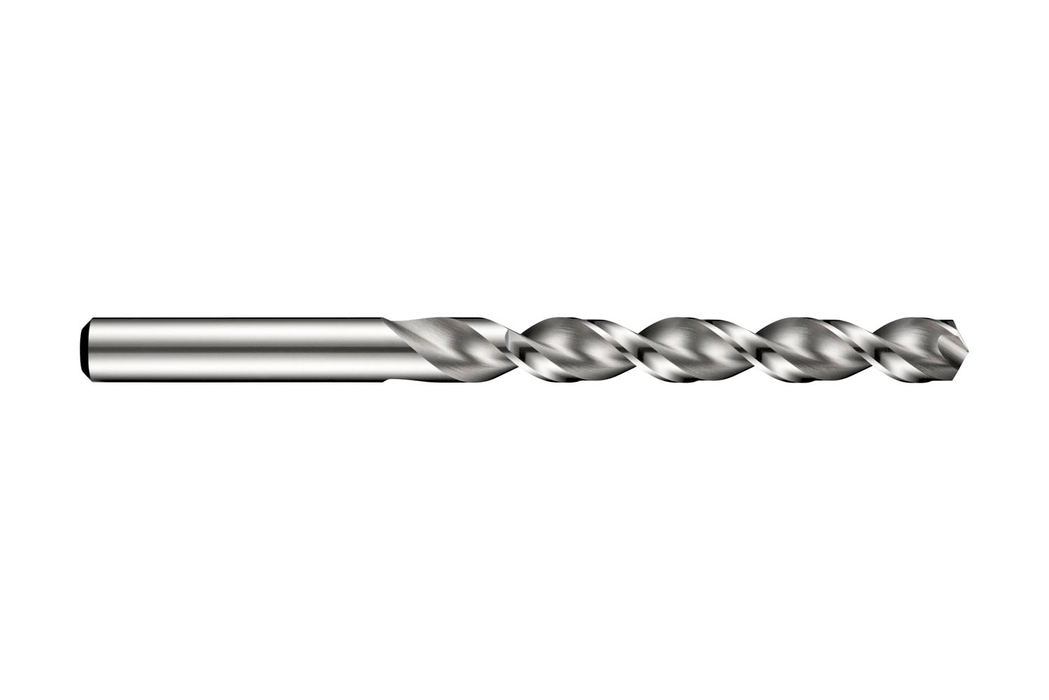

Jobber length PFX drill with straight shank, diameter 0.1563" (5/32) with an overall length of 79mm and flute length of 51mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$14.49 - $14.49
$14.49
$14.49 - $14.49
$14.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

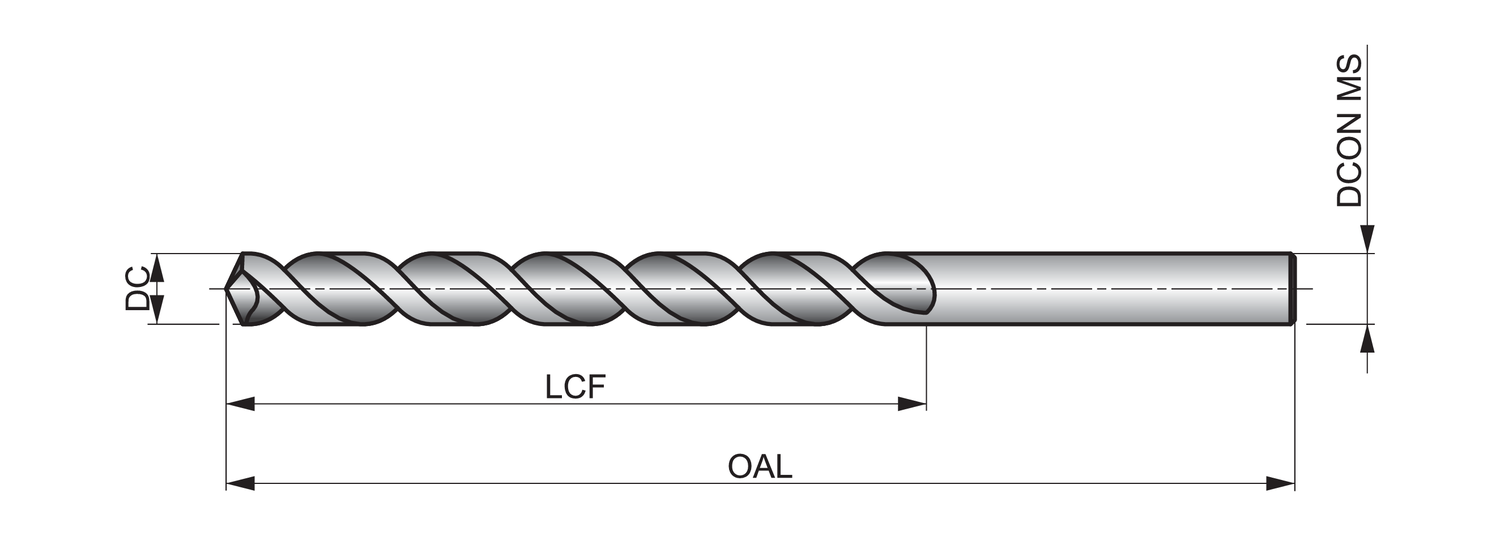

Material: HSS-E

Cutting Diameter - in (DC): 0.1563

Cutting Diameter - mm (DC): 3.97

Drill Point Angle - deg: 130

Flute Length: 2.0079

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 3.1102

Connetion Diameter: 0.1563

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/32

Grade: Bright

EDP: 46647

EAN: 7320760046647

MFG Part Number: 5971240
