A5538.0

A5538.0

SKU DOR5971424
by Dormer Pramet
Primary Use:

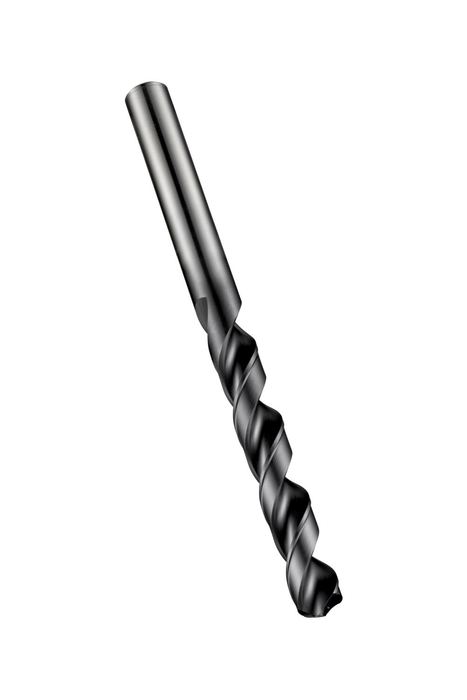

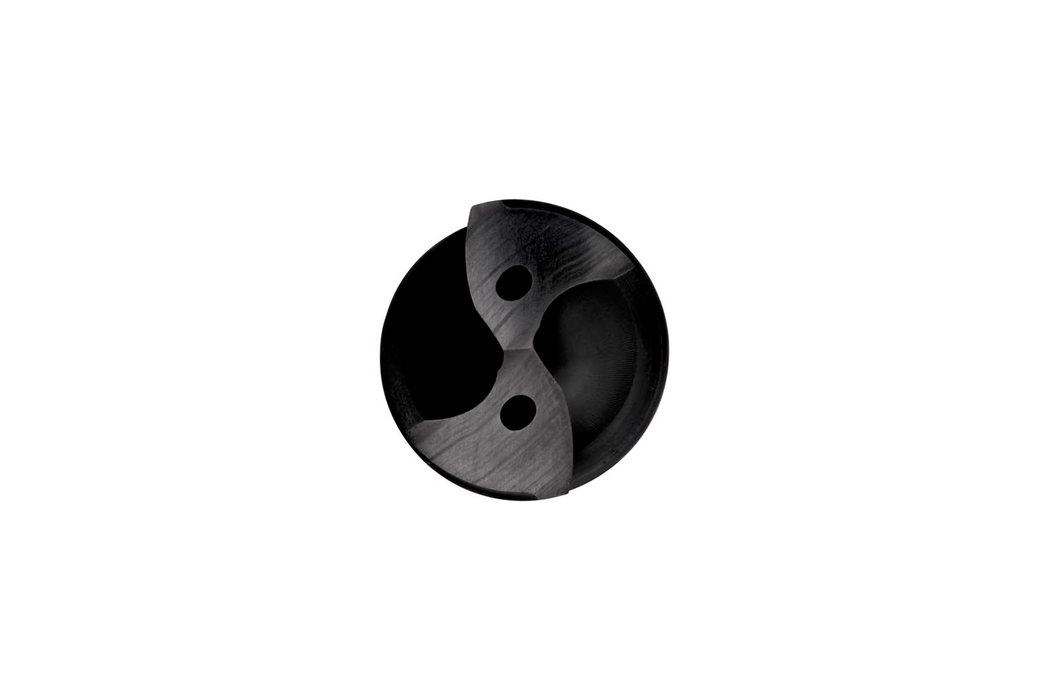

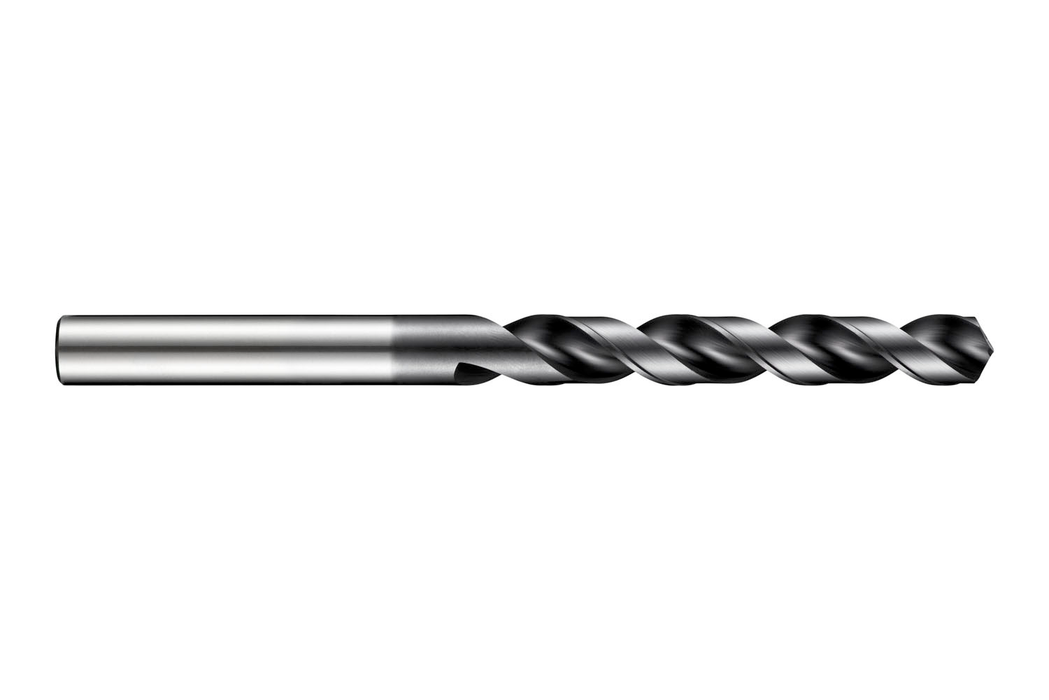

High-performance drill with DIN 6535HA NC parallel shank, diameter 8mm with an overall length of 94mm and flute length of 58mm according to DORMER standard with 130° volute point, cobalt based HSS-E with TiAlN-top coating through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$167.14 - $167.14
$167.14
$167.14 - $167.14
$167.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

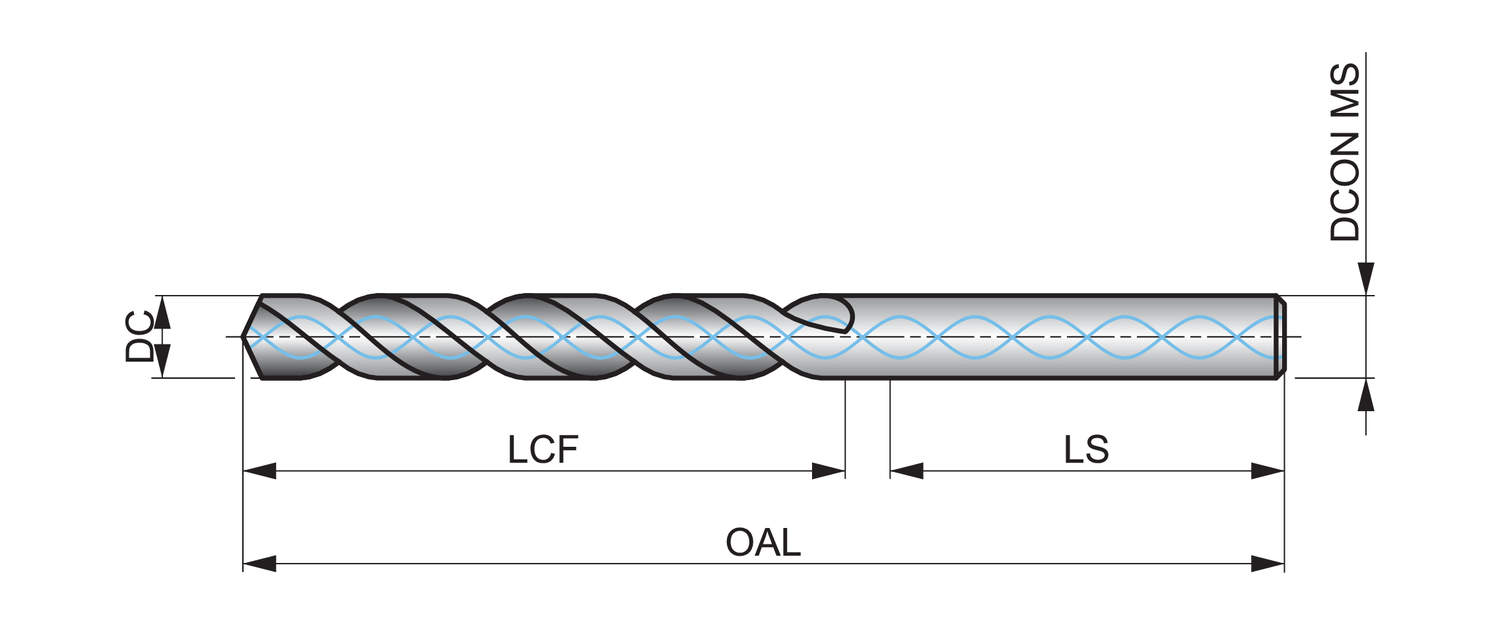

Material: HSS-E

Cutting Diameter - in (DC): 0.315

Cutting Diameter - mm (DC): 8.0

Drill Point Angle - deg: 130

Flute Length: 2.2835

Through Coolant: 1

Lenxth x Diameter Ratio: 5

Overall Length (OAL): 3.7008

Connetion Diameter: 0.315

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN/Top

EDP: 391402

EAN: 7320760391402

MFG Part Number: 5971424
