A92023/32

A92023/32

SKU DOR5972256
by Dormer Pramet
Primary Use: Possible Use:

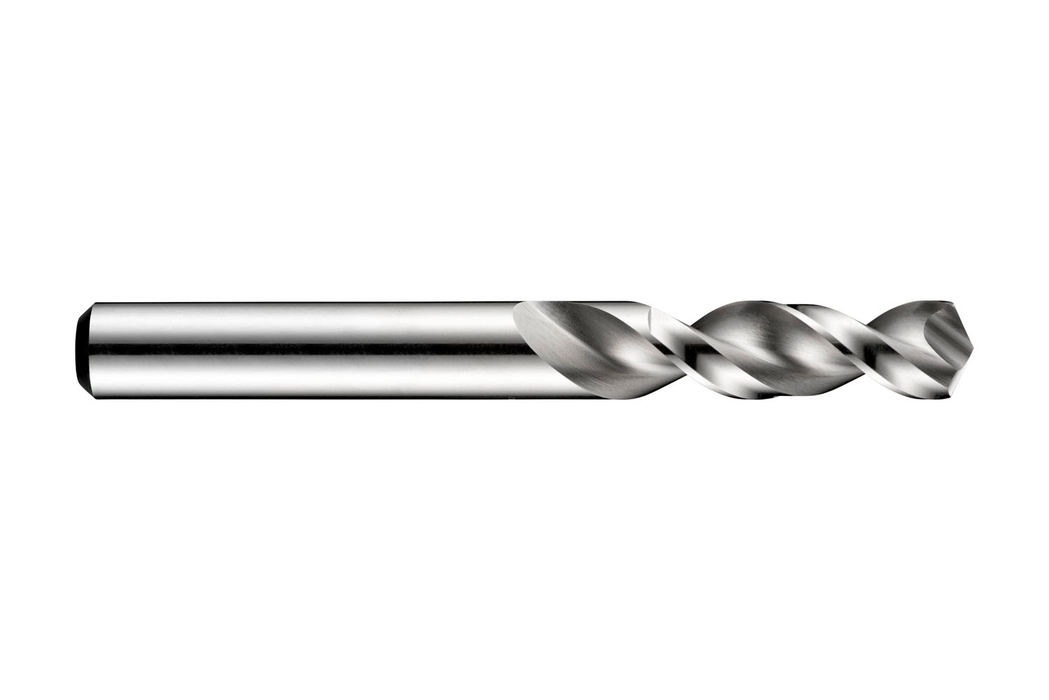

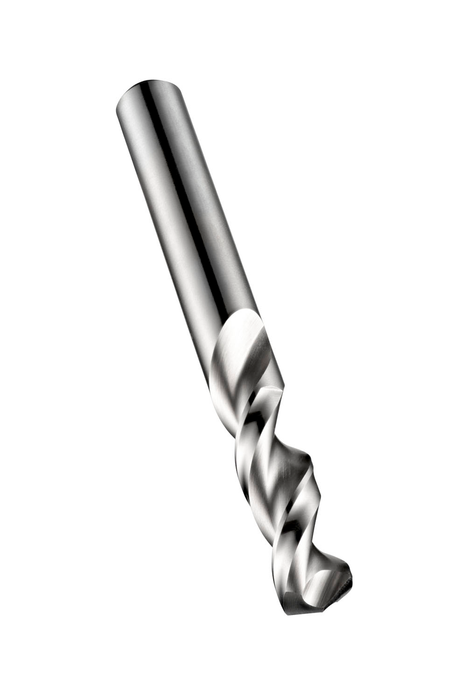

Stub length PFX drill with straight shank, diameter 0.7188" (23/32) with an overall length of 121mm and flute length of 76mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$156.93 - $156.93
$156.93
$156.93 - $156.93
$156.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

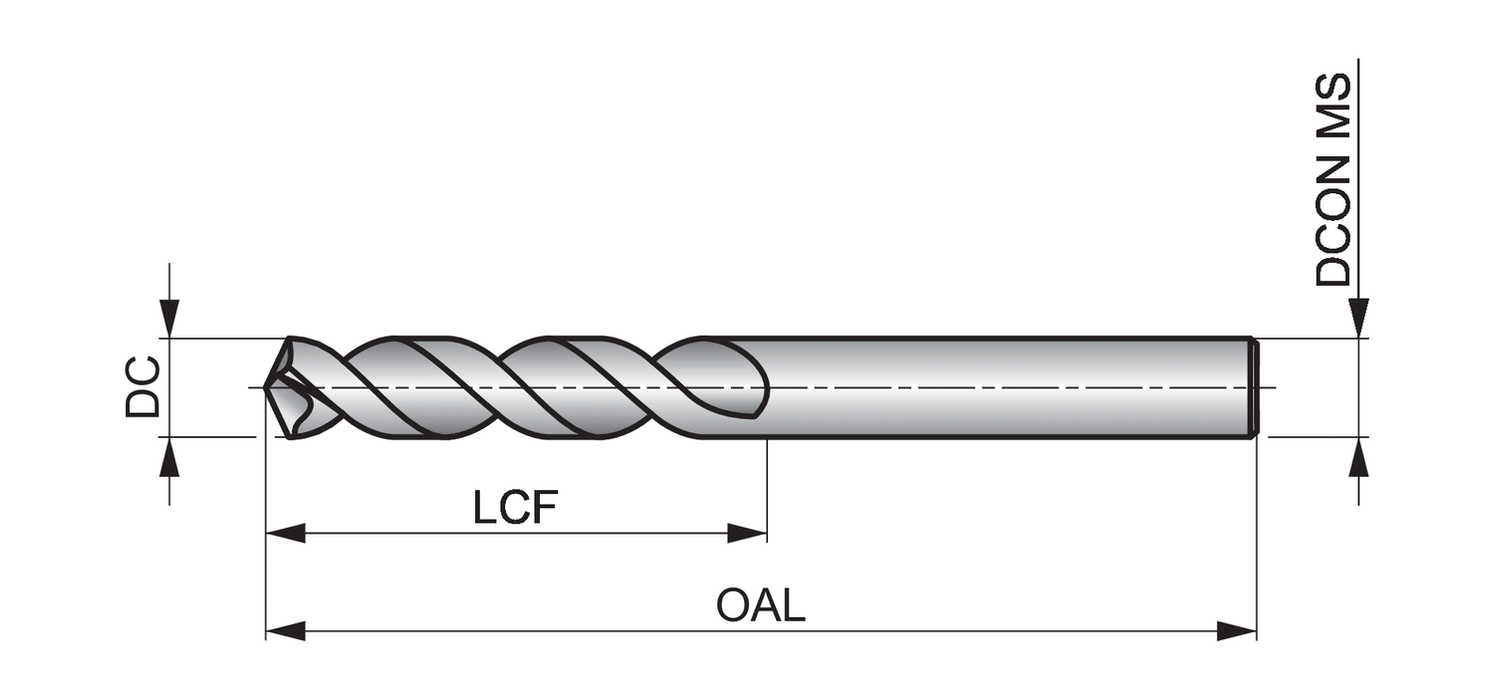

Cutting Diameter - in (DC): 0.7188

Cutting Diameter - mm (DC): 18.26

Drill Point Angle - deg: 130

Flute Length: 2.9921

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 4.7638

Connetion Diameter: 0.7189

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 23/32

Grade: Bright

EDP: 212400

EAN: 7320760212400

MFG Part Number: 5972256
