A9201/4

A9201/4

SKU DOR5972544
by Dormer Pramet
Primary Use: Possible Use:

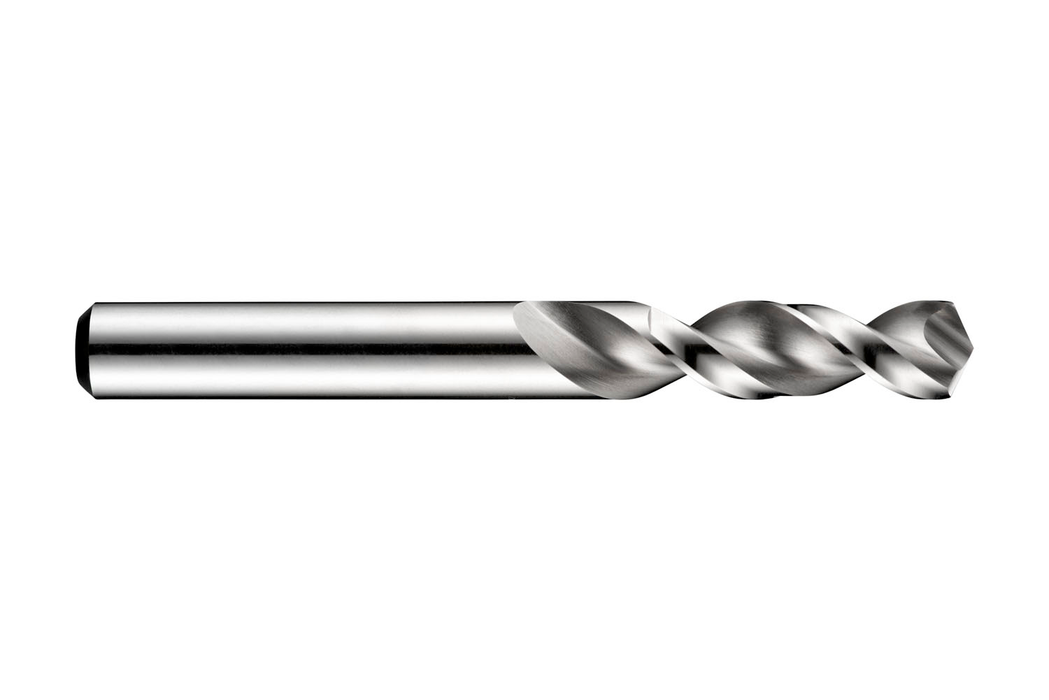

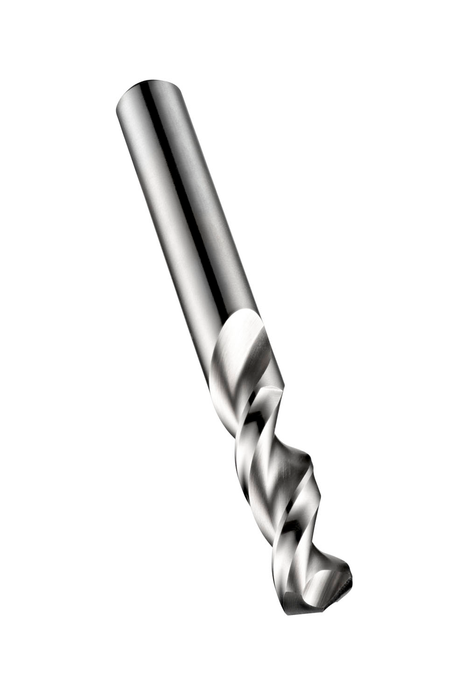

Stub length PFX drill with straight shank, diameter 0.2500" (1/4) with an overall length of 64mm and flute length of 35mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$15.46 - $15.46
$15.46
$15.46 - $15.46
$15.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

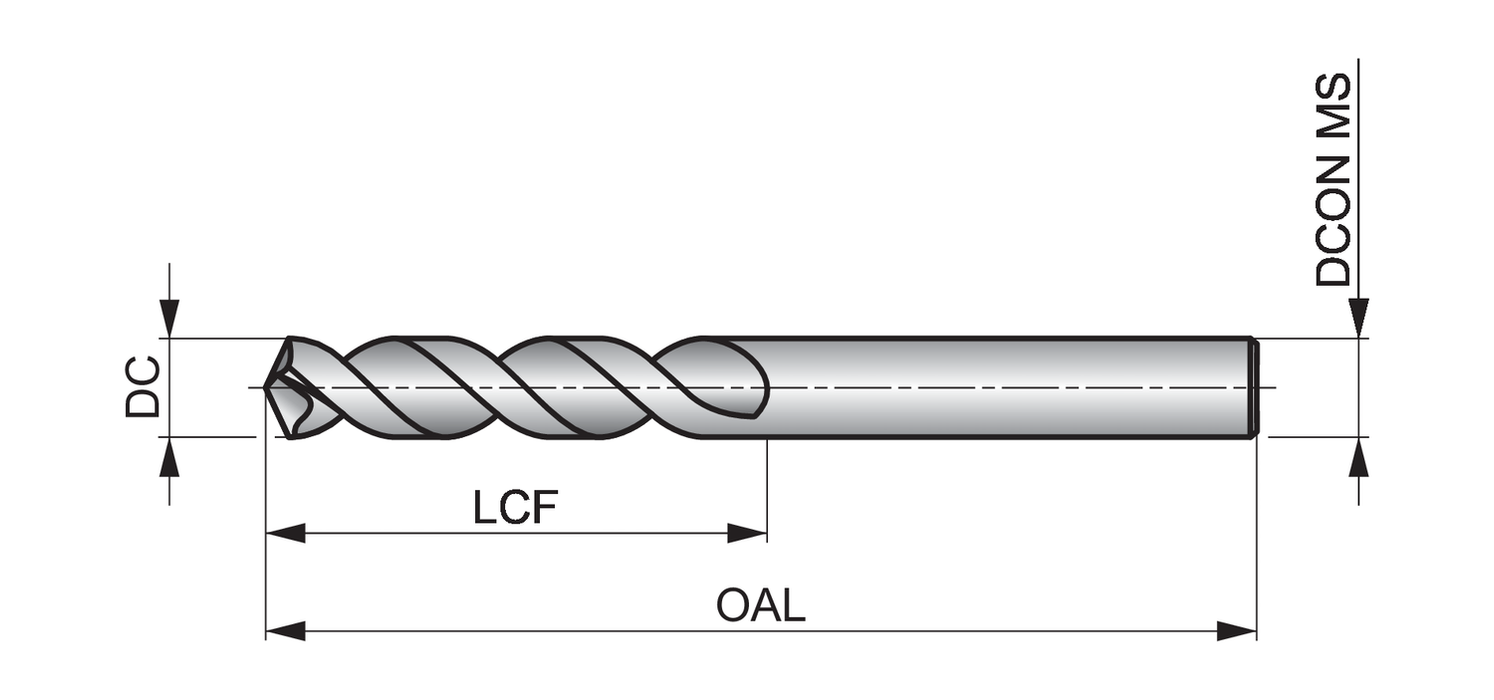

Cutting Diameter - in (DC): 0.25

Cutting Diameter - mm (DC): 6.35

Drill Point Angle - deg: 130

Flute Length: 1.378

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.5197

Connetion Diameter: 0.25

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1/4

Grade: Bright

EDP: 51313

EAN: 7320760051313

MFG Part Number: 5972544
