A9761/8
A9761/8
A9761/8
A9761/8

A9761/8

SKU DOR5972595
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.47 CAD - $65.47 CAD
$65.47 CAD
$65.47 CAD - $65.47 CAD
$65.47 CAD

Sold in packs of: 1

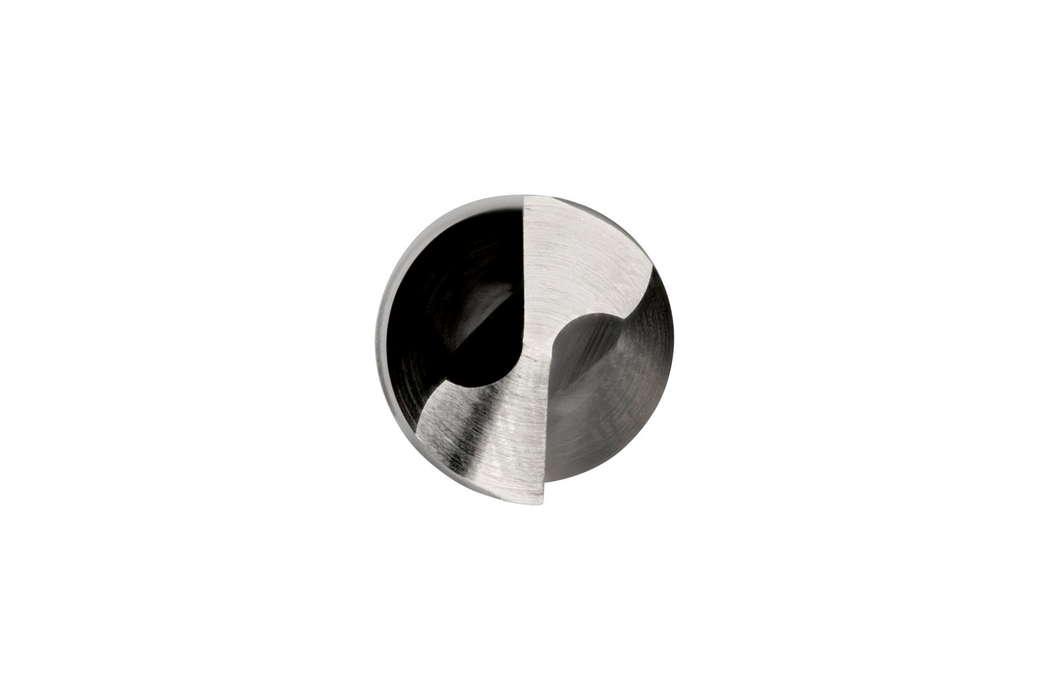

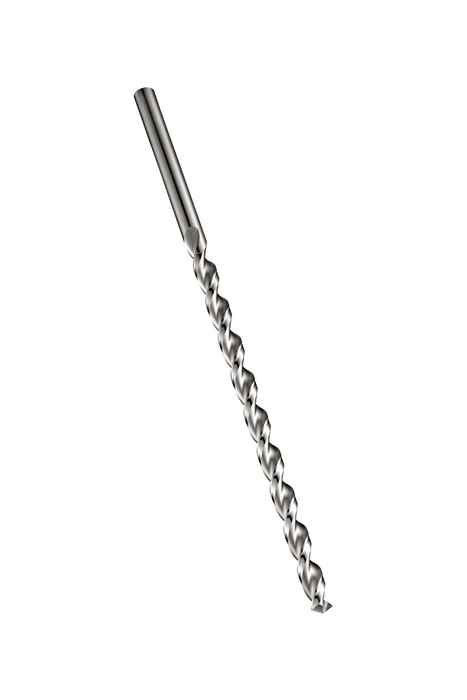

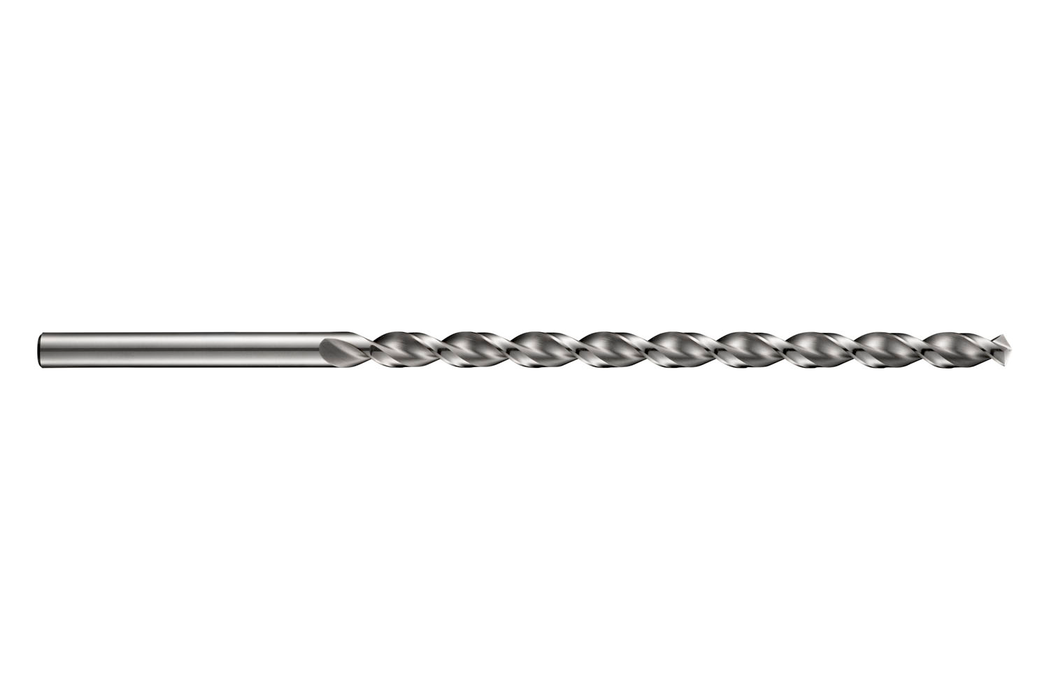

Extra long length PFX drill with straight shank, diameter 0.1252" (1/8) with an overall length of 155mm and flute length of 105mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9761/8
GradeBright
Product Number5972595
Product FamilyA976

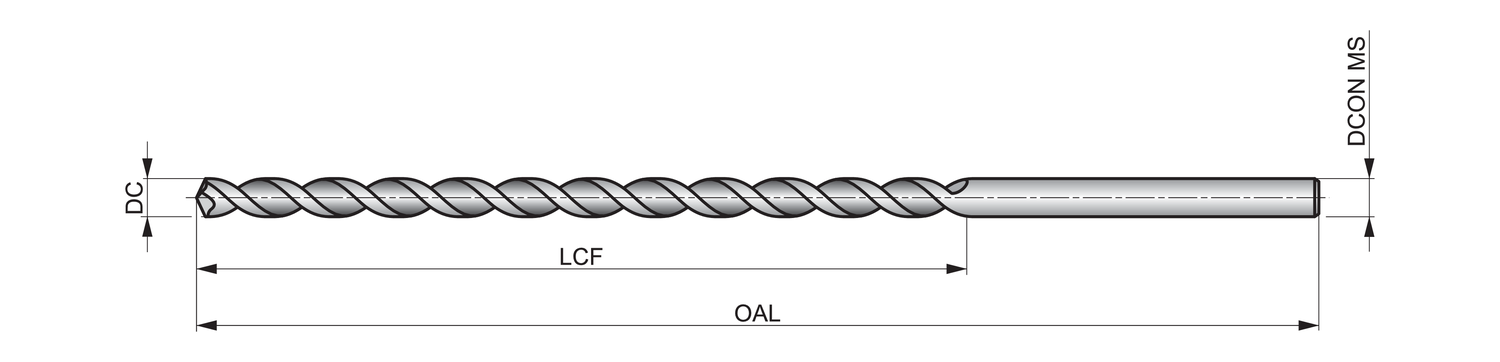

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)6.1024"
Overall Length — mm (OAL)155.0 mm
Flute Length — in (LCF)4.1339"
Flute Length — mm (LCF)105.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.1252"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1869 / 1
Reference Numbers
EDP Number347072
EAN7320760347072
File Type Download
A9761/8 — 3D Model STP Download
A9761/8 — Line Drawing PDF Download
