SKU DOR5972615
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$584.07 CAD - $584.07 CAD
$584.07 CAD
$584.07 CAD - $584.07 CAD
$584.07 CAD

Sold in packs of: 1

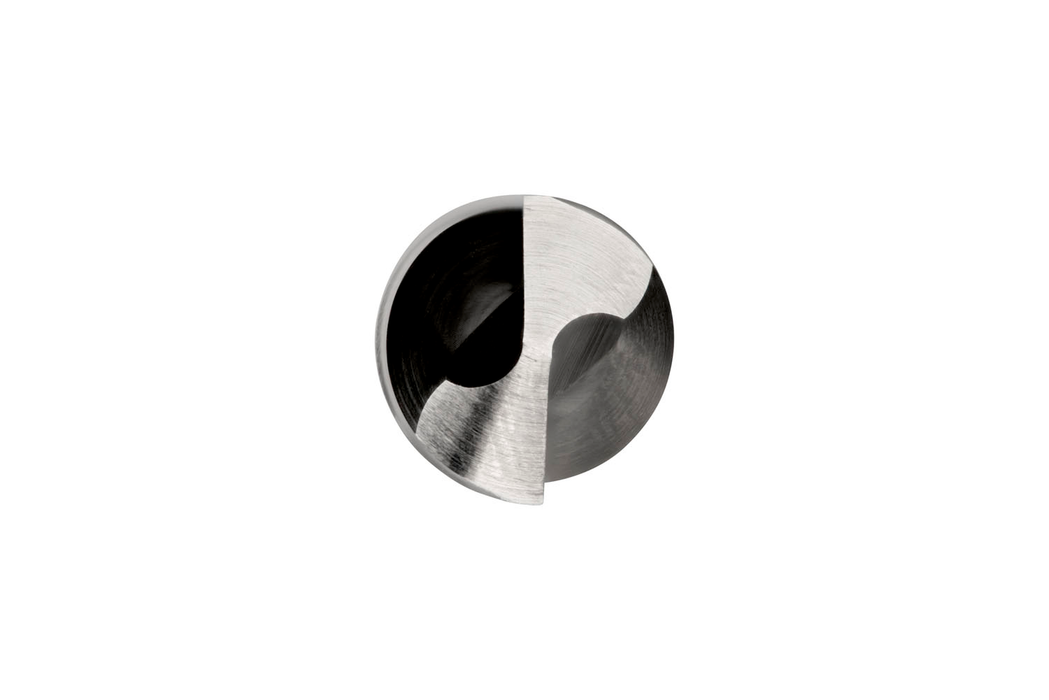

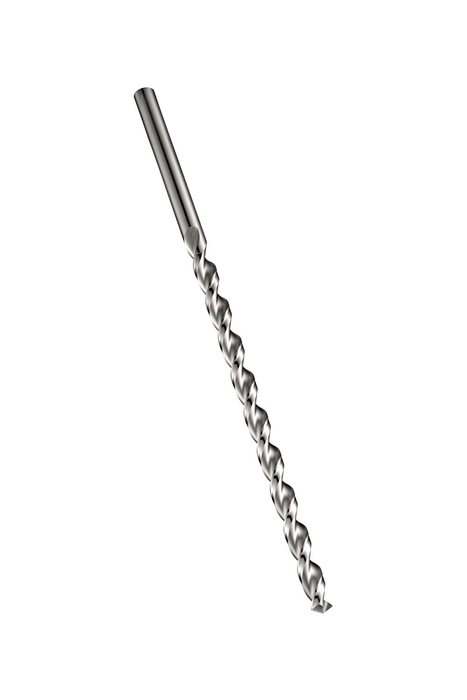

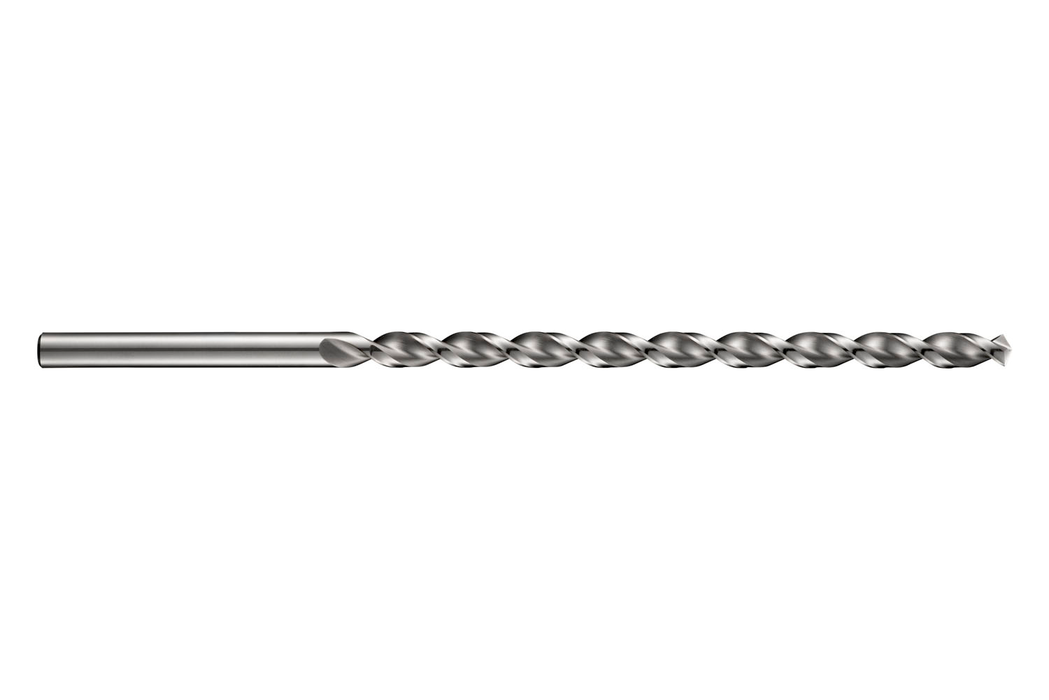

Extra long length PFX drill with straight shank, diameter 14mm with an overall length of 310mm and flute length of 215mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97614.0
GradeBright
Product Number5972615
Product FamilyA976

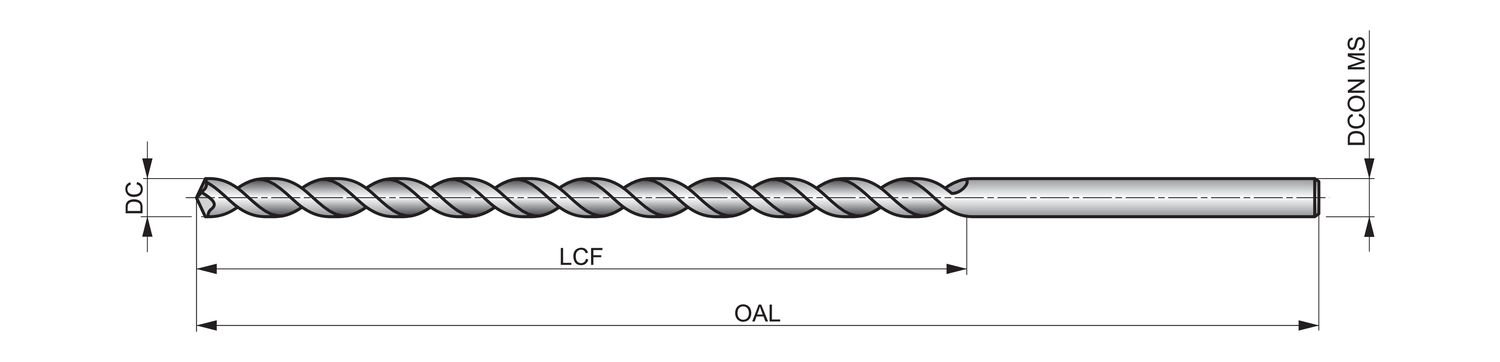

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)12.2047"
Overall Length — mm (OAL)310.0 mm
Flute Length — in (LCF)8.4646"
Flute Length — mm (LCF)215.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1869 / 1
Reference Numbers
EDP Number347201
EAN7320760347201
File Type Download
A97614.0 — 3D Model STP Download
A97614.0 — Line Drawing PDF Download
