A9762.1X125
A9762.1X125
A9762.1X125
A9762.1X125

A9762.1X125

SKU DOR5972622
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.23 CAD - $67.23 CAD
$67.23 CAD
$67.23 CAD - $67.23 CAD
$67.23 CAD

Sold in packs of: 1

Extra long length PFX drill with straight shank, diameter 2.1mm with an overall length of 125mm and flute length of 85mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9762.1X125
GradeBright
Product Number5972622
Product FamilyA976

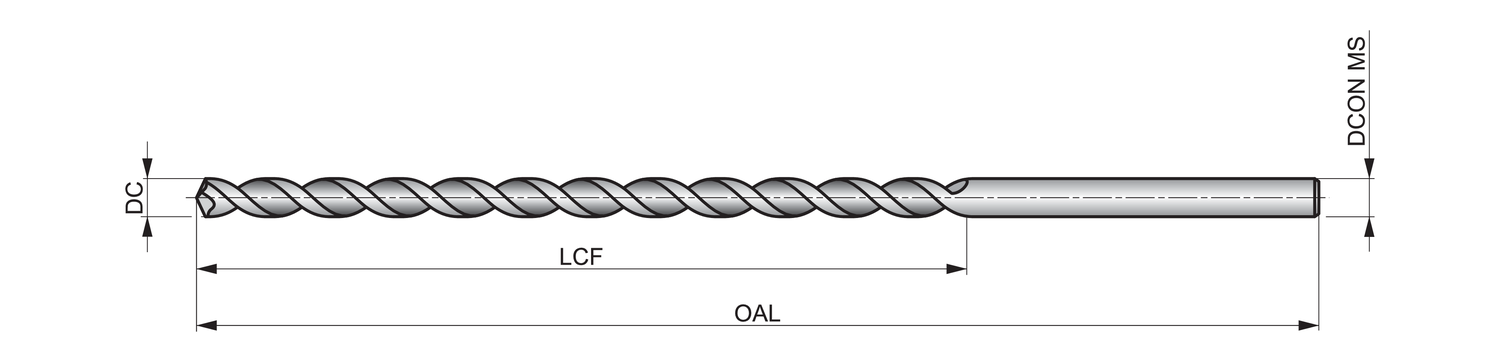

Dimensions
Cutting Diameter — in (DC)0.0827"
Cutting Diameter — mm (DC)2.1 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.3465"
Flute Length — mm (LCF)85.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.0827"
Connection Dia. — mm (DCON)2.1 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1869 / 1
Reference Numbers
EDP Number279724
EAN7320760279724
File Type Download
A9762.1X125 — 3D Model STP Download
A9762.1X125 — Line Drawing PDF Download
