SKU DOR5972638
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$383.63 CAD - $383.63 CAD
$383.63 CAD
$383.63 CAD - $383.63 CAD
$383.63 CAD

Sold in packs of: 1

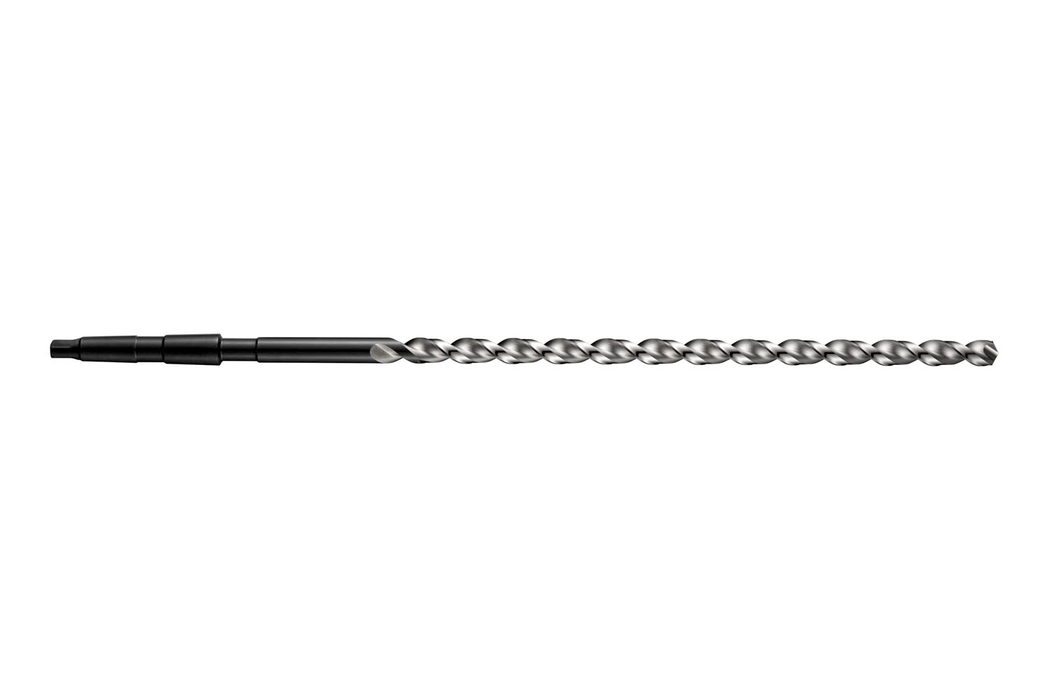

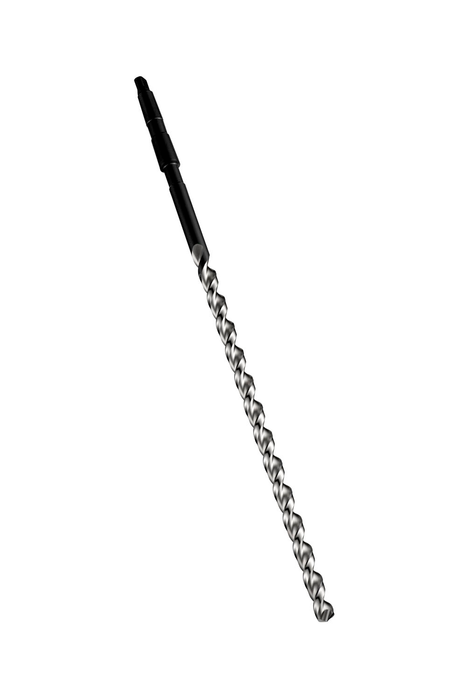

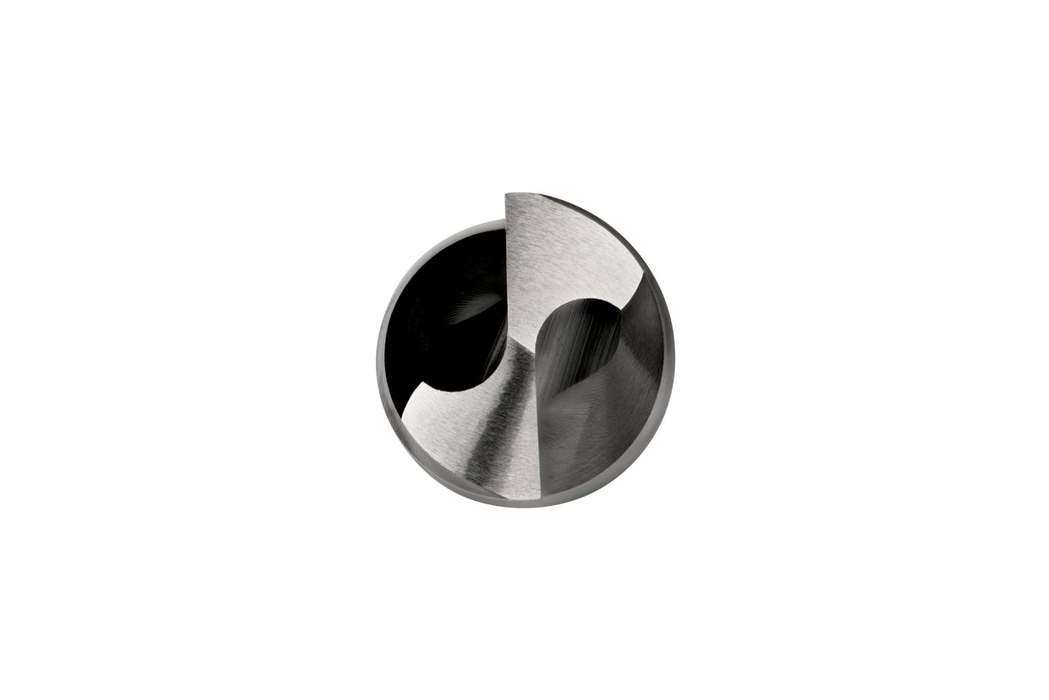

Extra long length drill with taper shank, diameter 23mm with an overall length of 515mm and flute length of 345mm according to DIN 1870 (2) standard with 130° point angle, HSS with bright + steam tempered finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95223.0
GradeBright/ST
Product Number5972638
Product FamilyA952

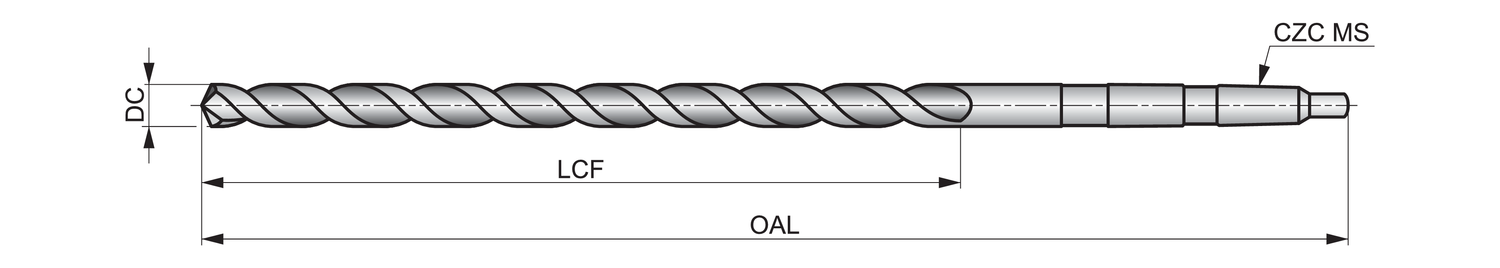

Dimensions
Cutting Diameter — in (DC)0.9055"
Cutting Diameter — mm (DC)23.0 mm
Overall Length — in (OAL)20.2756"
Overall Length — mm (OAL)515.0 mm
Flute Length — in (LCF)13.5827"
Flute Length — mm (LCF)345.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardDIN 1870 (2)
Reference Numbers
EDP Number420096
EAN7320760420096
File Type Download
A95223.0 — 3D Model STP Download
A95223.0 — Line Drawing PDF Download
