SKU DOR5972642
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.23 CAD - $54.23 CAD
$54.23 CAD
$54.23 CAD - $54.23 CAD
$54.23 CAD

Sold in packs of: 1

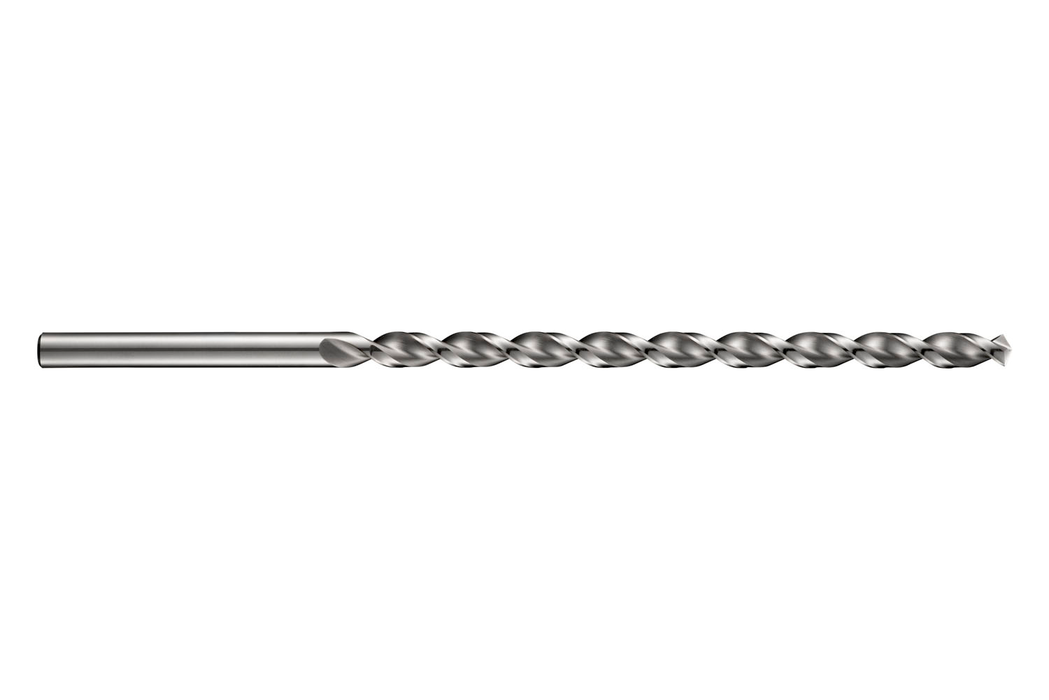

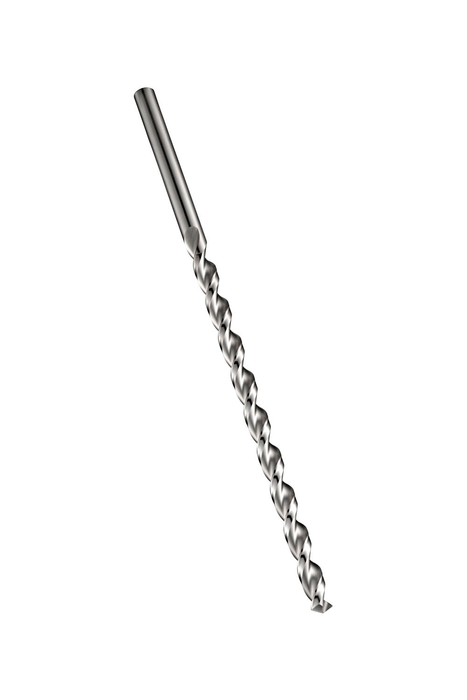

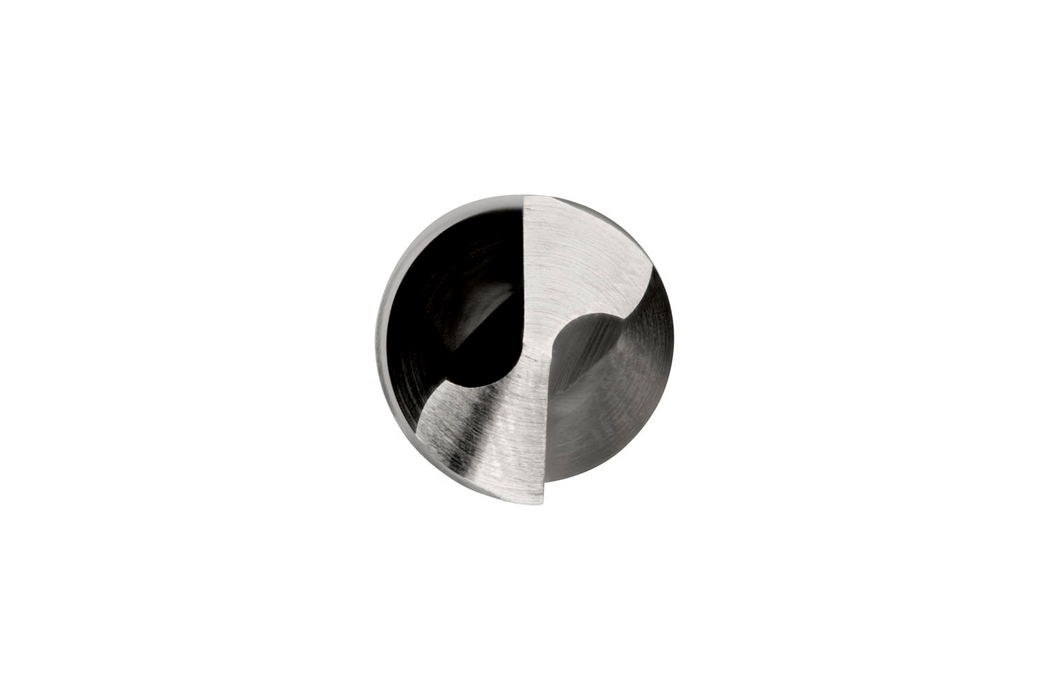

Extra long length PFX drill with straight shank, diameter 2.5mm with an overall length of 140mm and flute length of 95mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9762.5X140
GradeBright
Product Number5972642
Product FamilyA976

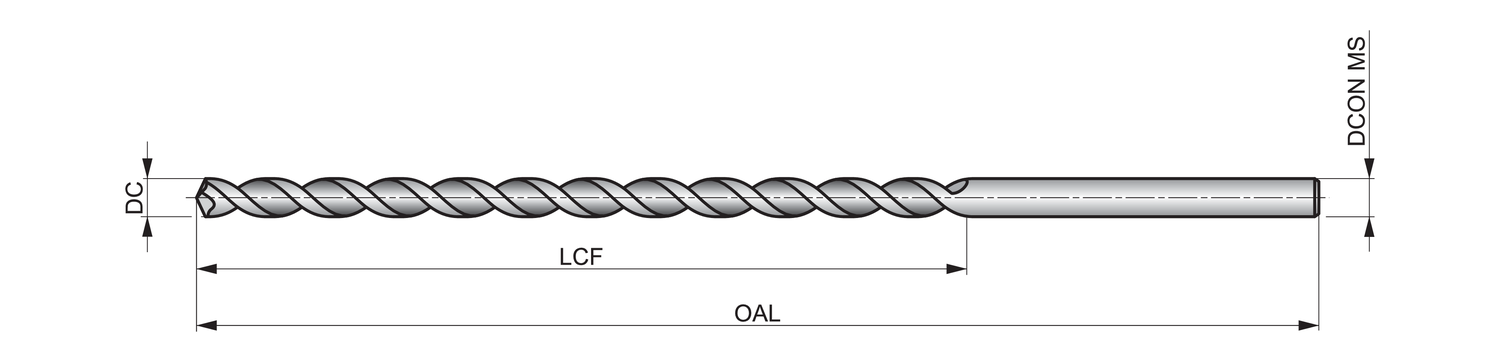

Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Flute Length — in (LCF)3.7402"
Flute Length — mm (LCF)95.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1869 / 1
Reference Numbers
EDP Number148525
EAN7320760148525
File Type Download
A9762.5X140 — 3D Model STP Download
A9762.5X140 — Line Drawing PDF Download
