A9762.6X140
A9762.6X140
A9762.6X140
A9762.6X140

A9762.6X140

SKU DOR5972646
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.63 CAD - $68.63 CAD
$68.63 CAD
$68.63 CAD - $68.63 CAD
$68.63 CAD

Sold in packs of: 1

Extra long length PFX drill with straight shank, diameter 2.6mm with an overall length of 140mm and flute length of 95mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9762.6X140
GradeBright
Product Number5972646
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.1024"
Cutting Diameter — mm (DC)2.6 mm
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Flute Length — in (LCF)3.7402"
Flute Length — mm (LCF)95.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.1024"
Connection Dia. — mm (DCON)2.6 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1869 / 1
Reference Numbers
EDP Number279748
EAN7320760279748
File Type Download
A9762.6X140 — 3D Model STP Download

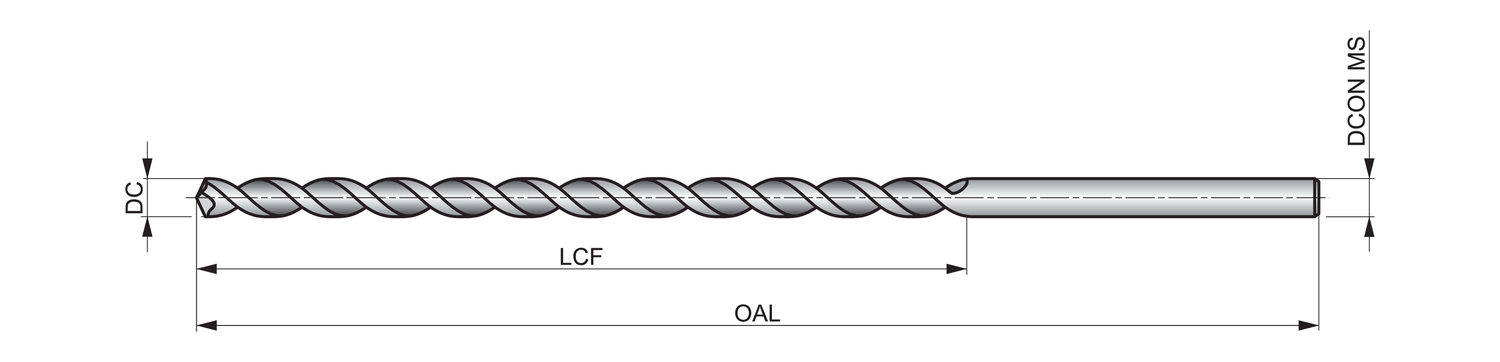

A9762.6X140 — Line Drawing PDF Download
