G17110.4

G17110.4

SKU DOR5972677
by Dormer Pramet
Primary Use: Possible Use:

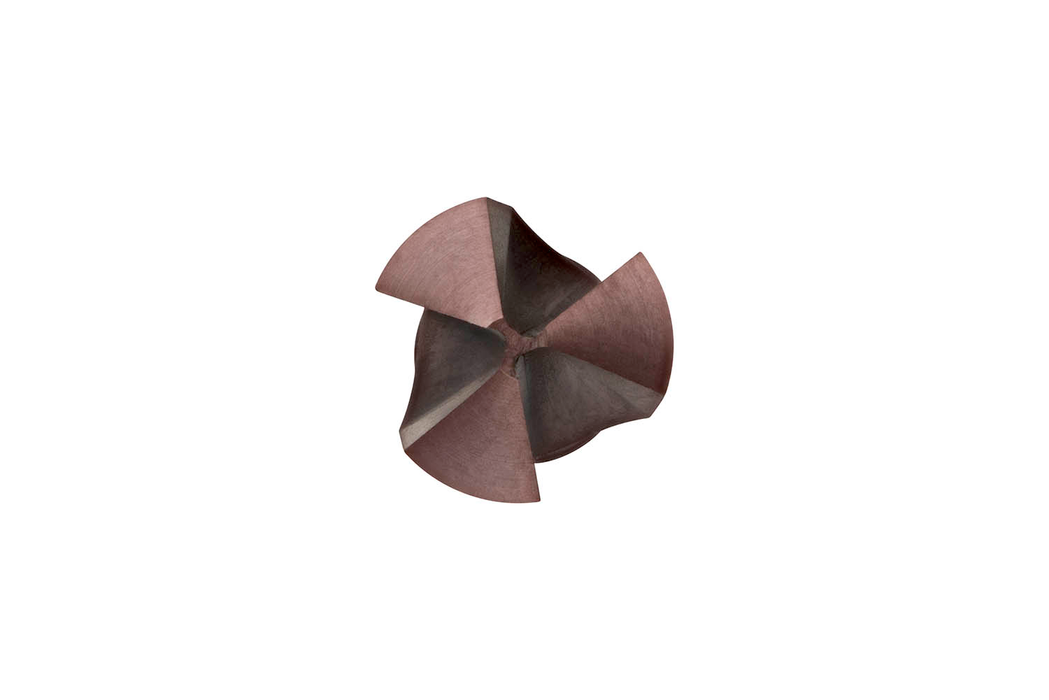

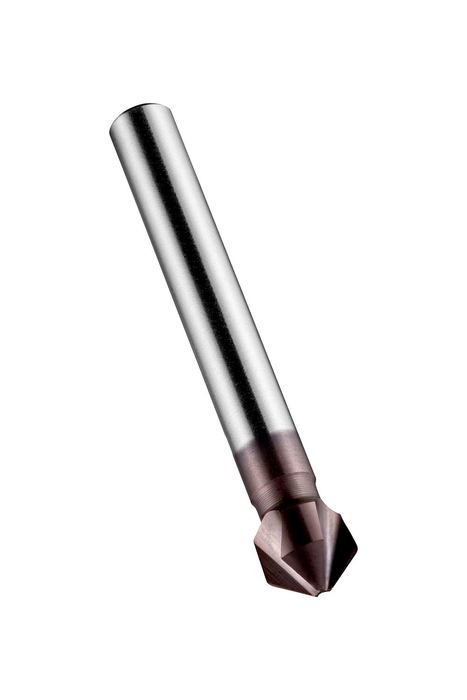

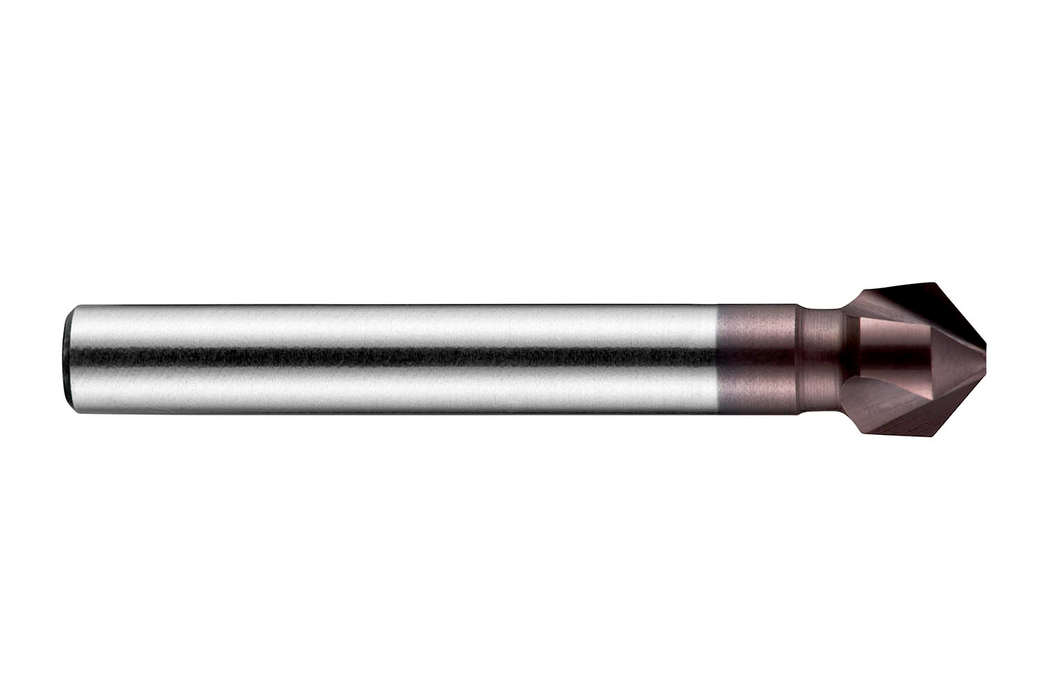

Countersink with 3-flutes, 100° chamfering angle, maximum diameter 10.40mm with an overall length of 49mm and a head length of 6.6mm and 6mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.50mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$46.94 - $46.94
$46.94
$46.94 - $46.94
$46.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

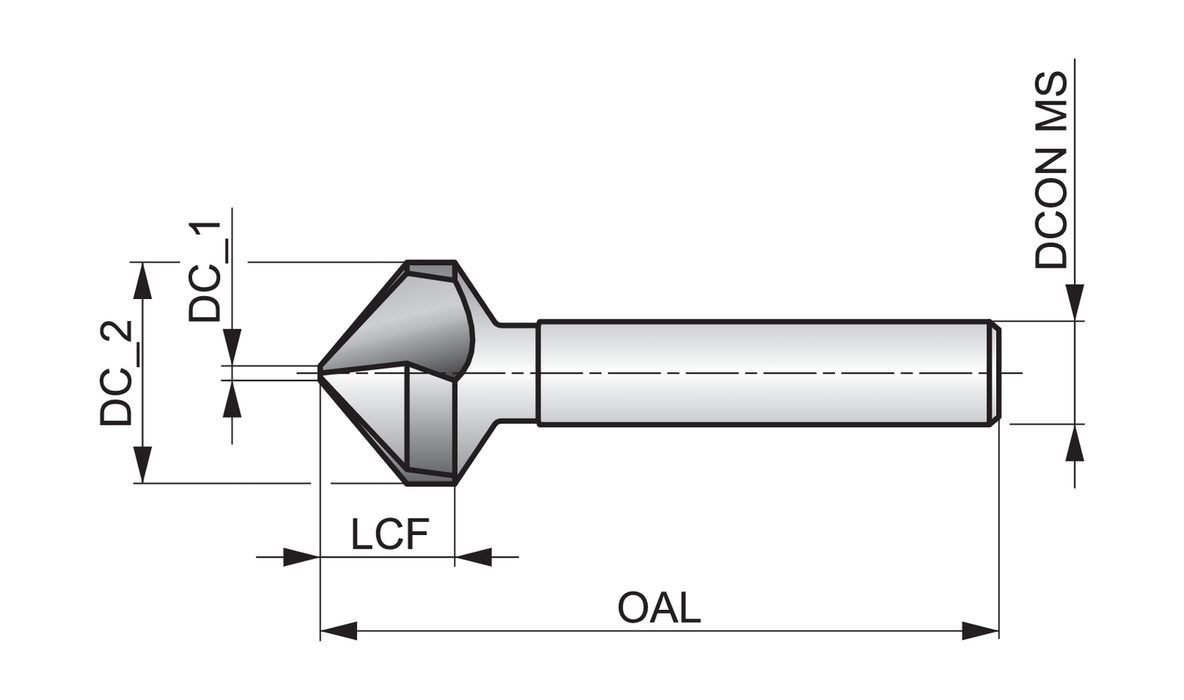

Material: HSS

Drill Point Angle - deg: 100

Overall Length (OAL): 1.9291

Connetion Diameter: 0.2362

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiAlN

EDP: 372555

EAN: 7320760372555

MFG Part Number: 5972677
