SKU DOR5972681
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$551.10 CAD - $551.10 CAD
$551.10 CAD
$551.10 CAD - $551.10 CAD
$551.10 CAD

Sold in packs of: 1

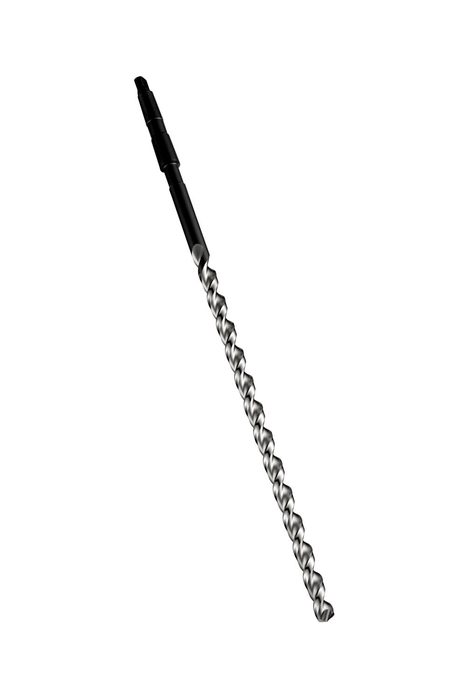

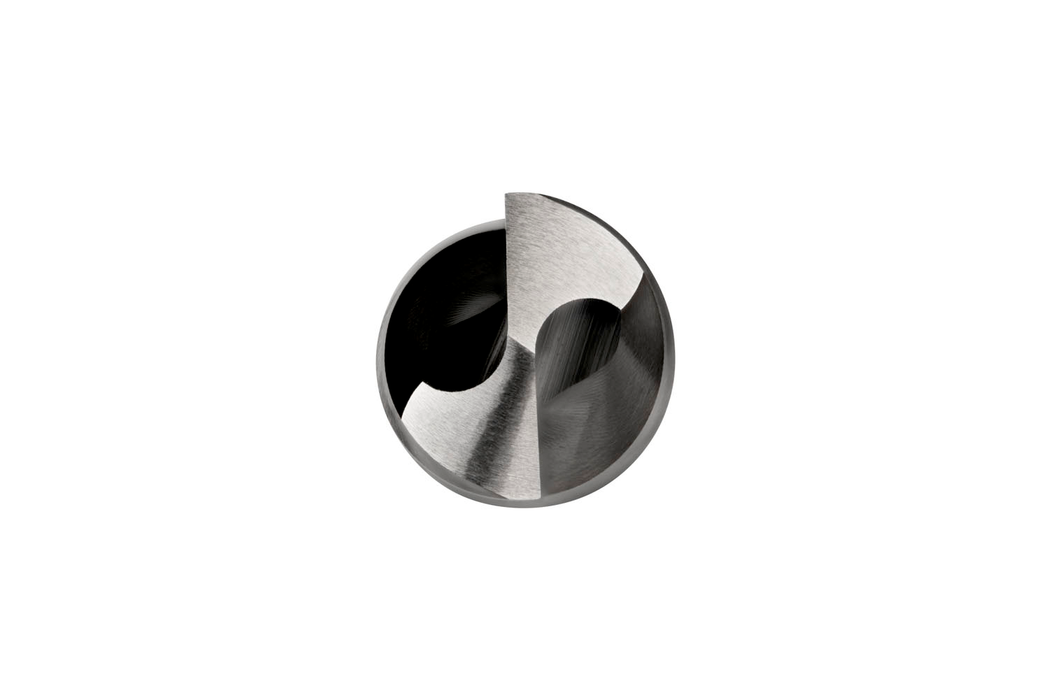

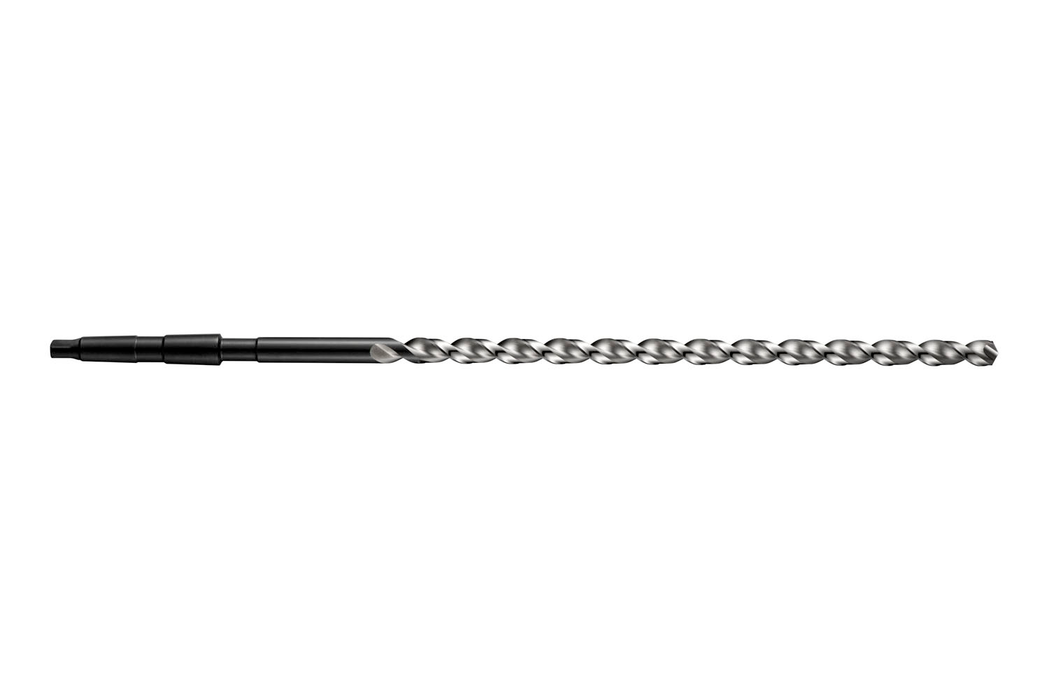

Extra long length drill with taper shank, diameter 24mm with an overall length of 555mm and flute length of 365mm according to DIN 1870 (2) standard with 130° point angle, HSS with bright + steam tempered finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95224.0
GradeBright/ST
Product Number5972681
Product FamilyA952

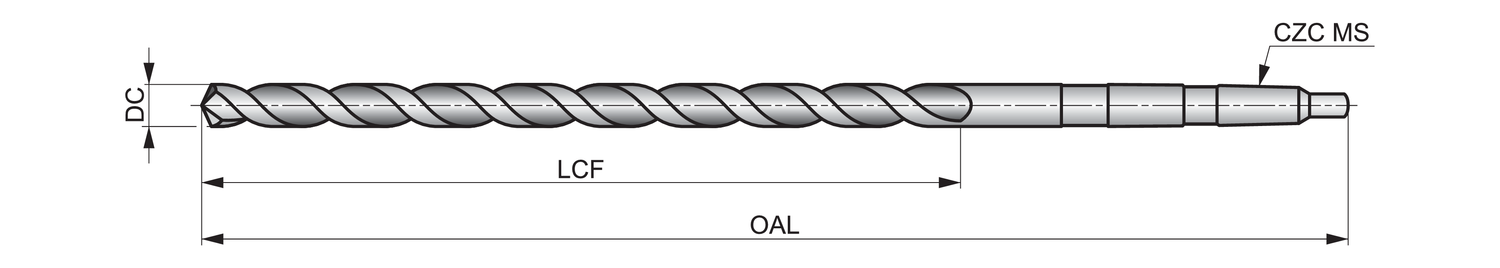

Dimensions
Cutting Diameter — in (DC)0.9449"
Cutting Diameter — mm (DC)24.0 mm
Overall Length — in (OAL)21.8504"
Overall Length — mm (OAL)555.0 mm
Flute Length — in (LCF)14.3701"
Flute Length — mm (LCF)365.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardDIN 1870 (2)
Reference Numbers
EDP Number420102
EAN7320760420102
File Type Download
A95224.0 — 3D Model STP Download
A95224.0 — Line Drawing PDF Download
