SKU DOR5972686
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.69 CAD - $62.69 CAD
$62.69 CAD
$62.69 CAD - $62.69 CAD
$62.69 CAD

Sold in packs of: 1

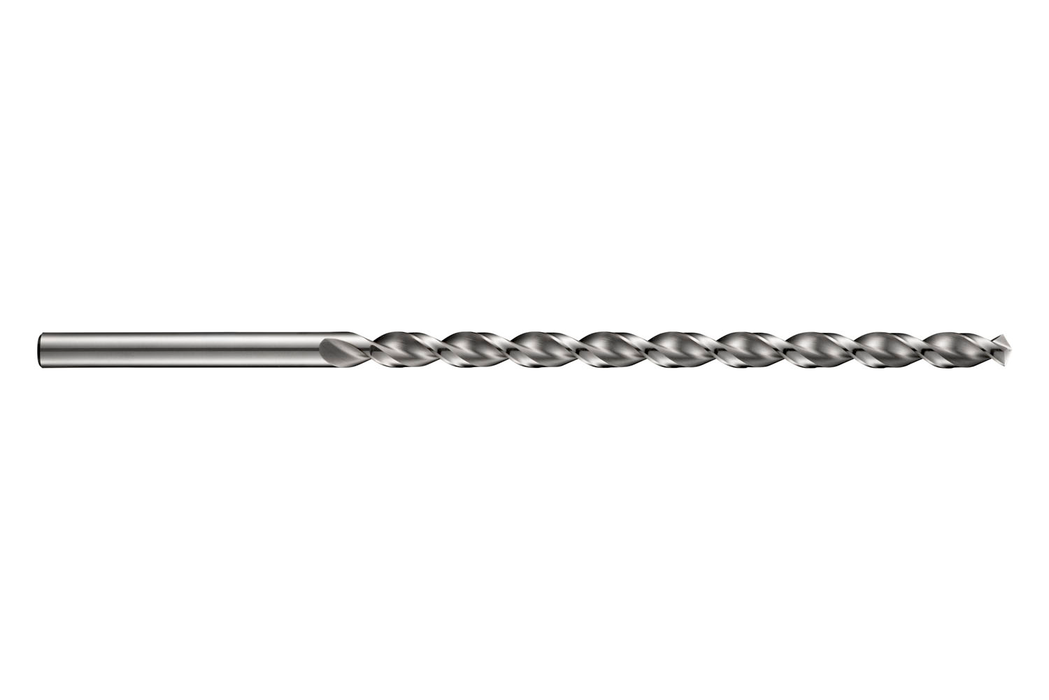

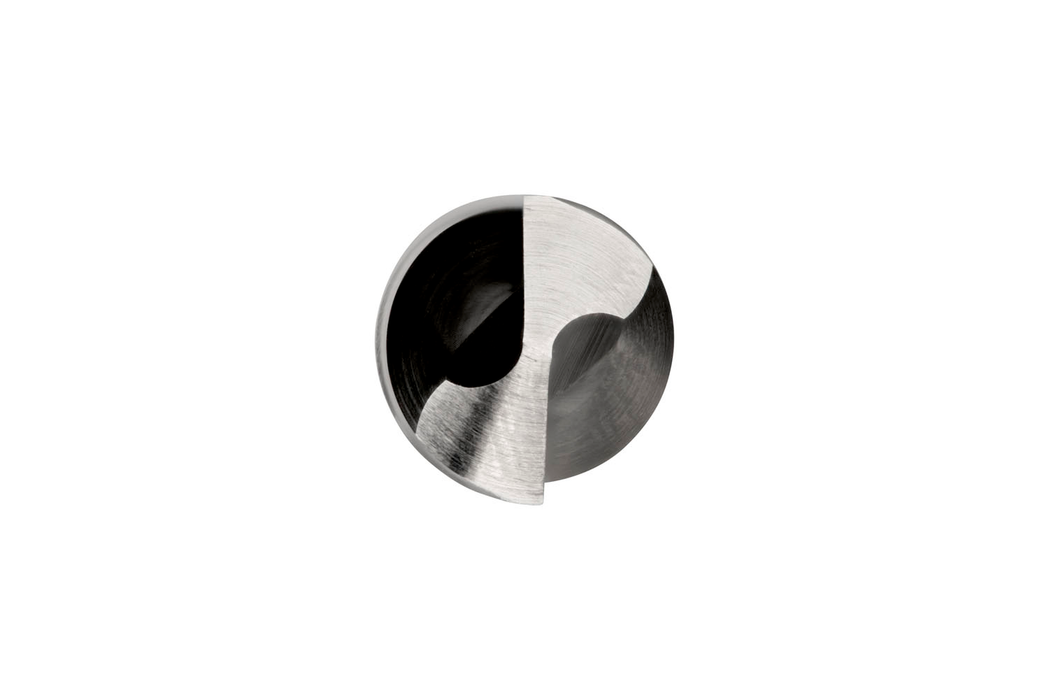

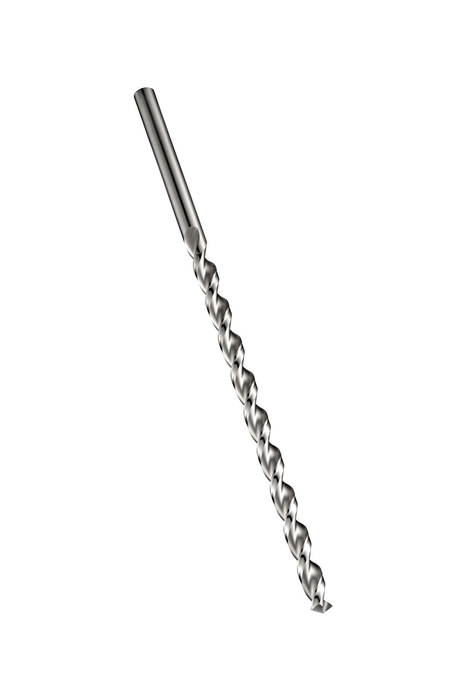

Extra long length PFX drill with straight shank, diameter 3.5mm with an overall length of 165mm and flute length of 115mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9763.5X165
GradeBright
Product Number5972686
Product FamilyA976

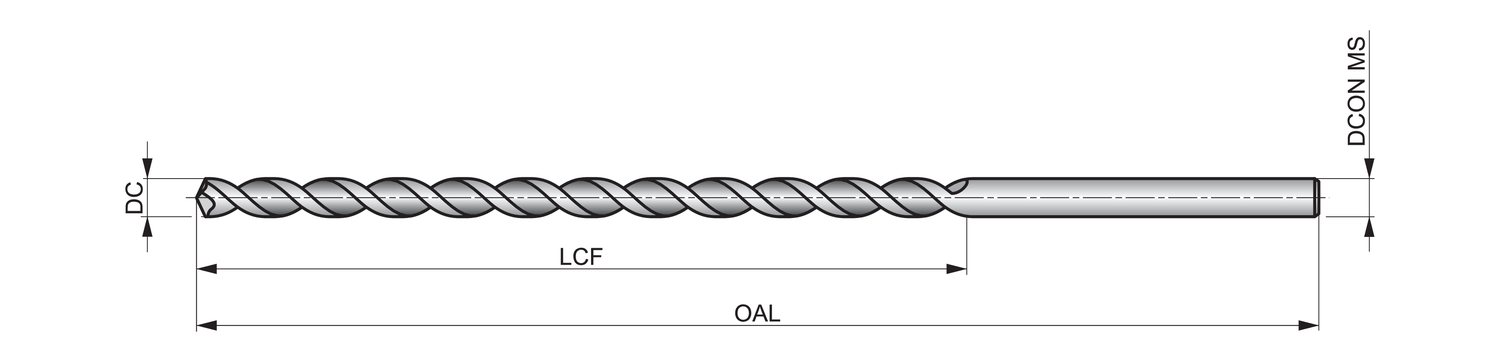

Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)6.4961"
Overall Length — mm (OAL)165.0 mm
Flute Length — in (LCF)4.5276"
Flute Length — mm (LCF)115.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1869 / 1
Reference Numbers
EDP Number148556
EAN7320760148556
File Type Download
A9763.5X165 — 3D Model STP Download
A9763.5X165 — Line Drawing PDF Download
