G17125.0

G17125.0

SKU DOR5972693
by Dormer Pramet
Primary Use: Possible Use:

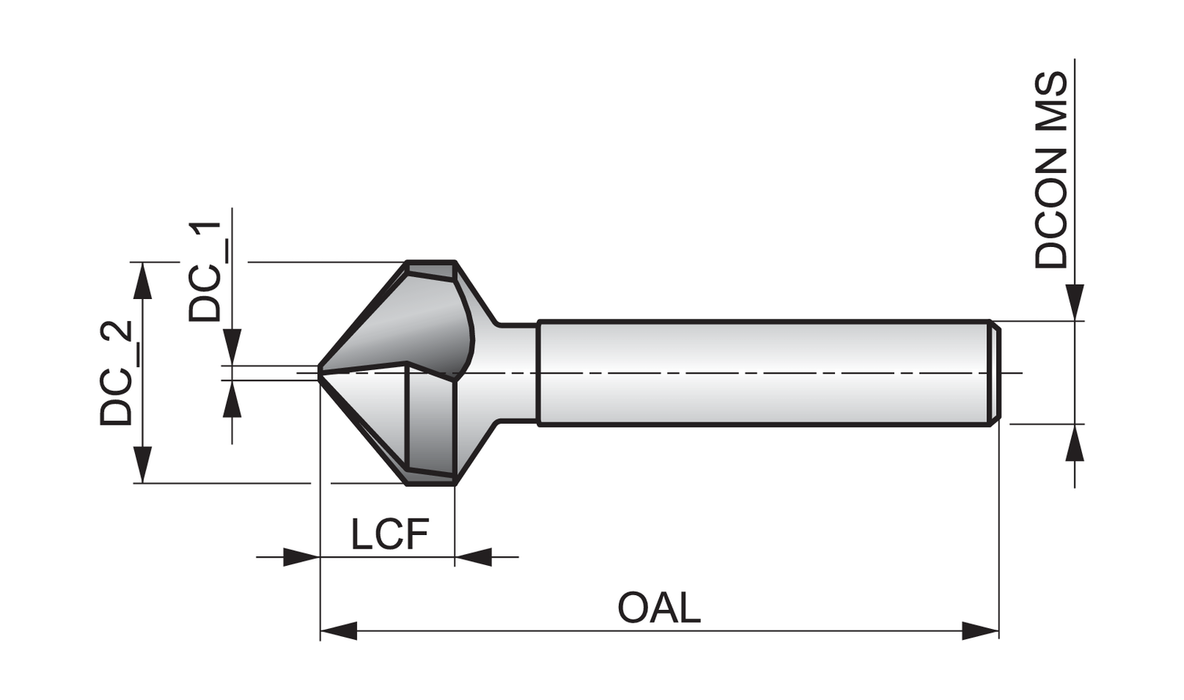

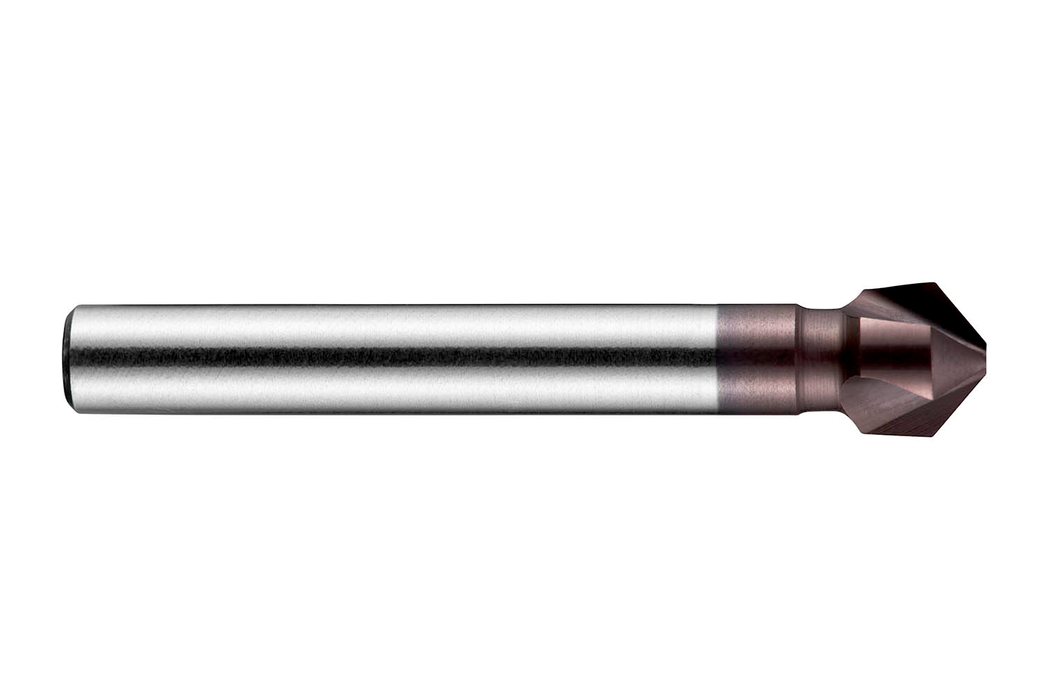

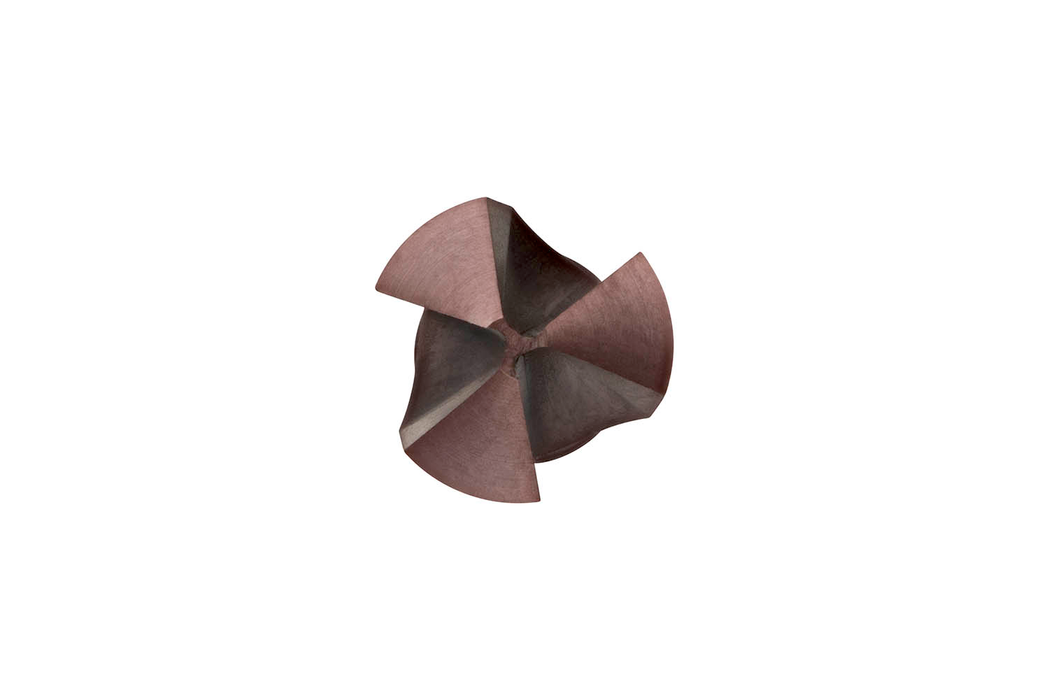

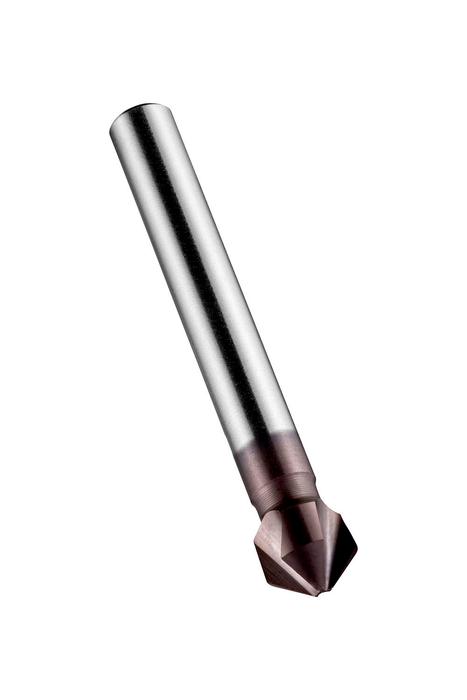

Countersink with 3-flutes, 100° chamfering angle, maximum diameter 25.00mm with an overall length of 65mm and a head length of 13.5mm and 10mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.80mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$209.84 - $209.84
$209.84
$209.84 - $209.84
$209.84
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 100

Overall Length (OAL): 2.5591

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiAlN

EDP: 372593

EAN: 7320760372593

MFG Part Number: 5972693
