G1716.3

G1716.3

SKU DOR5972697
by Dormer Pramet
Primary Use: Possible Use:

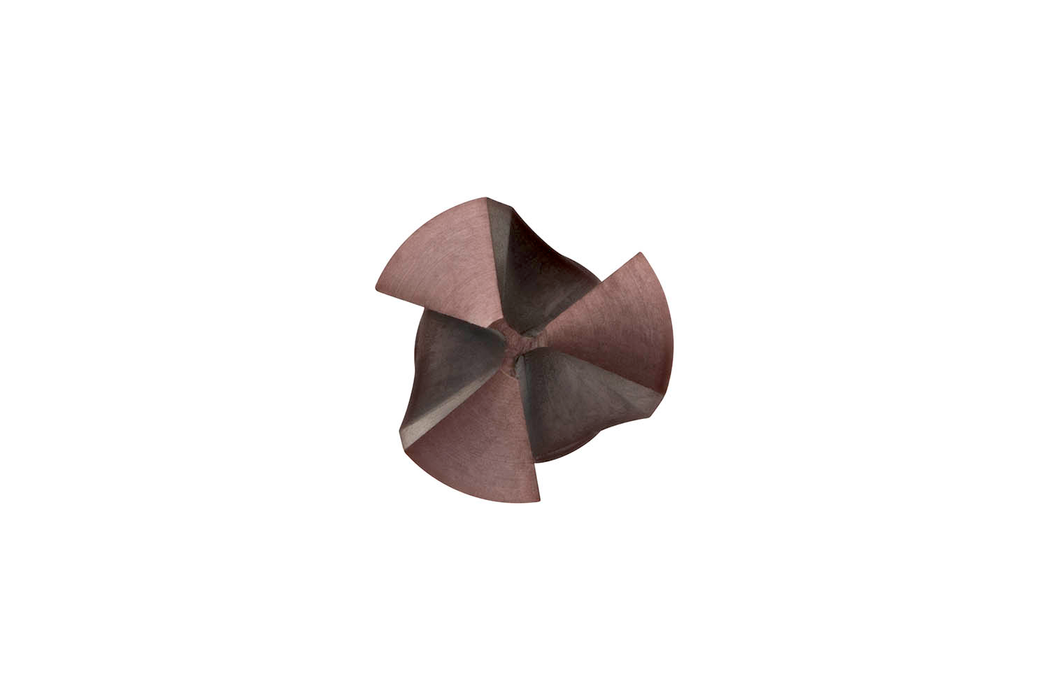

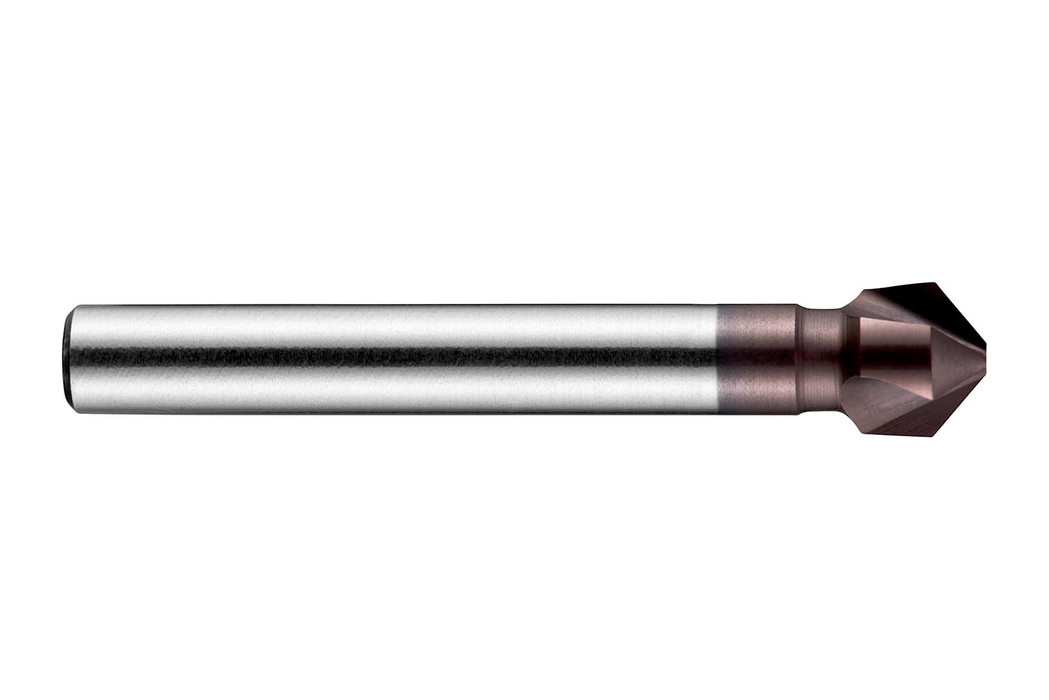

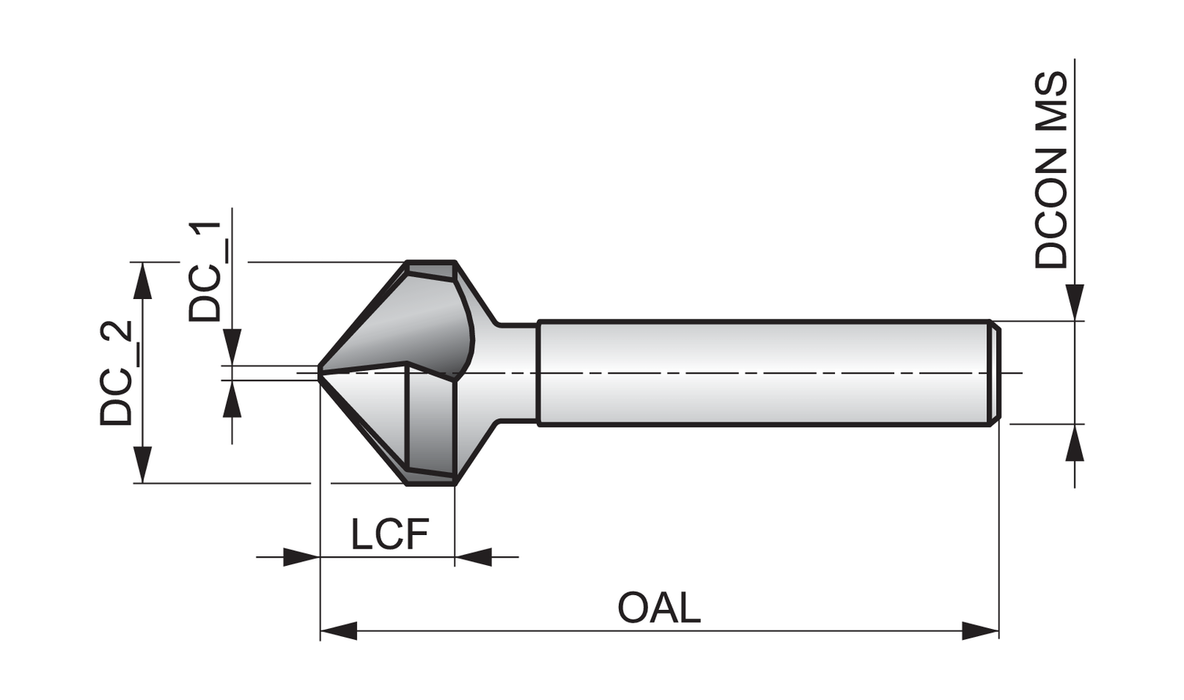

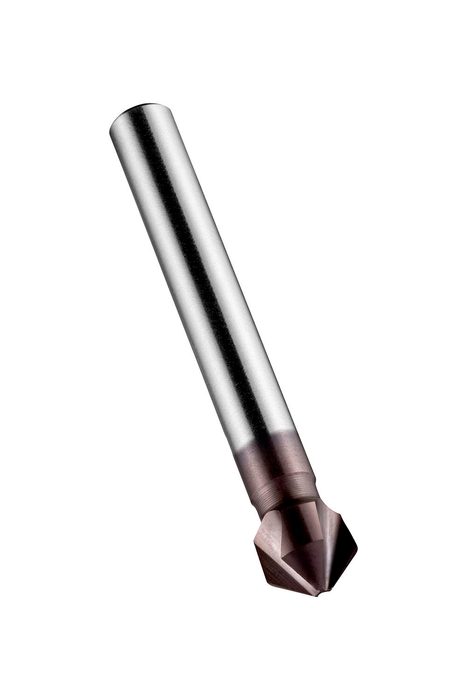

Countersink with 3-flutes, 100° chamfering angle, maximum diameter 6.30mm with an overall length of 44mm and a head length of 4.5mm and 5mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 1.50mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$41.81 - $41.81
$41.81
$41.81 - $41.81
$41.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 100

Overall Length (OAL): 1.7323

Connetion Diameter: 0.1969

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiAlN

EDP: 372609

EAN: 7320760372609

MFG Part Number: 5972697
