A95228.0

A95228.0

SKU DOR5972705
by Dormer Pramet
Primary Use: Possible Use:

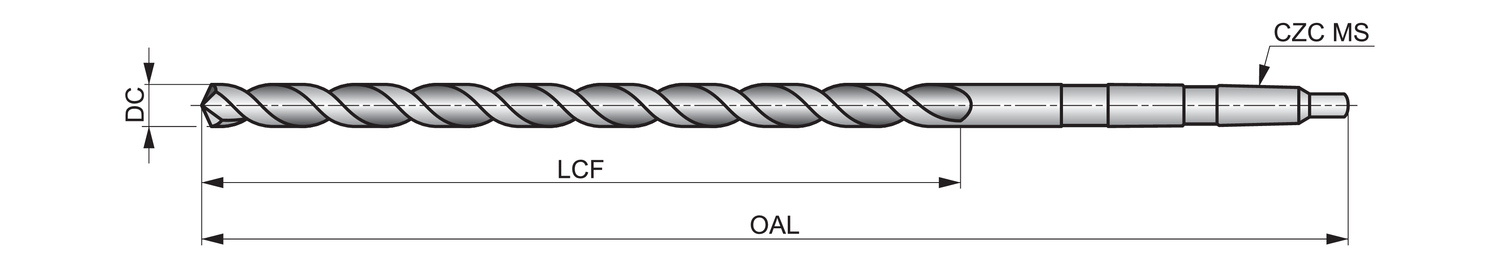

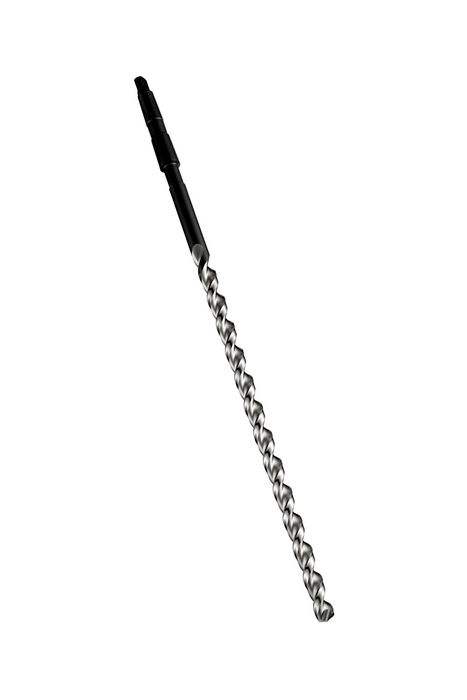

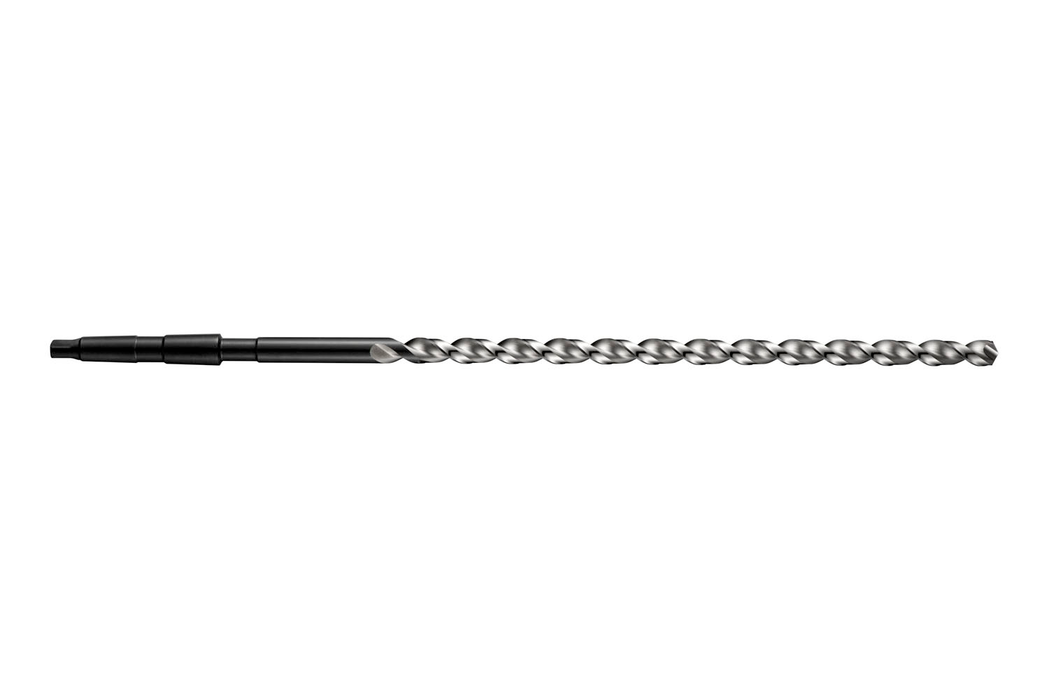

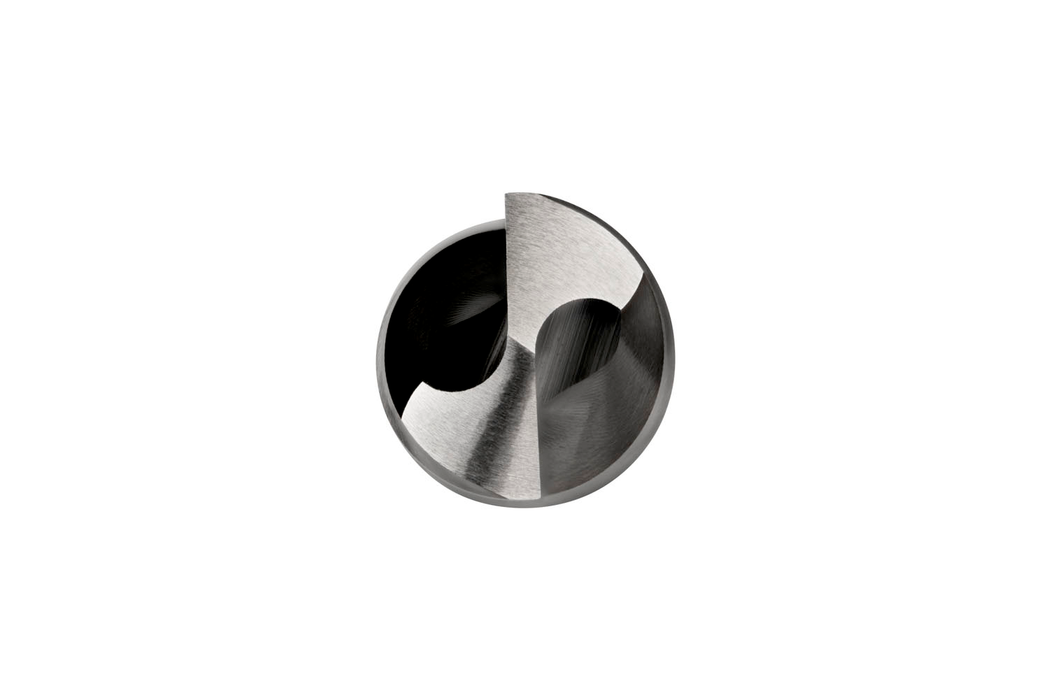

Extra long length drill with taper shank, diameter 28mm with an overall length of 580mm and flute length of 385mm according to DIN 1870 (2) standard with 130° point angle, HSS with bright + steam tempered finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$702.83 - $702.83
$702.83
$702.83 - $702.83
$702.83
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 1.1024

Cutting Diameter - mm (DC): 28.0

Drill Point Angle - deg: 130

Flute Length: 15.1575

Lenxth x Diameter Ratio: 20

Overall Length (OAL): 22.8346

Tool Direction: Right

Shank: Morse Taper Shank

Grade: Bright/ST

EDP: 420140

EAN: 7320760420140

MFG Part Number: 5972705
