G33520.0

G33520.0

SKU DOR5972771
by Dormer Pramet
Primary Use: Possible Use:

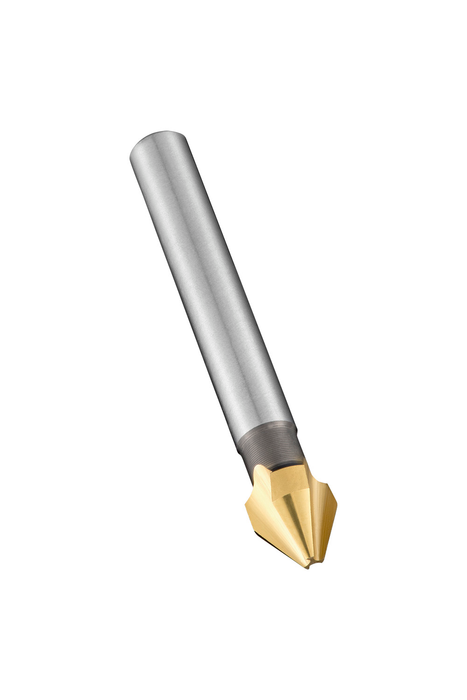

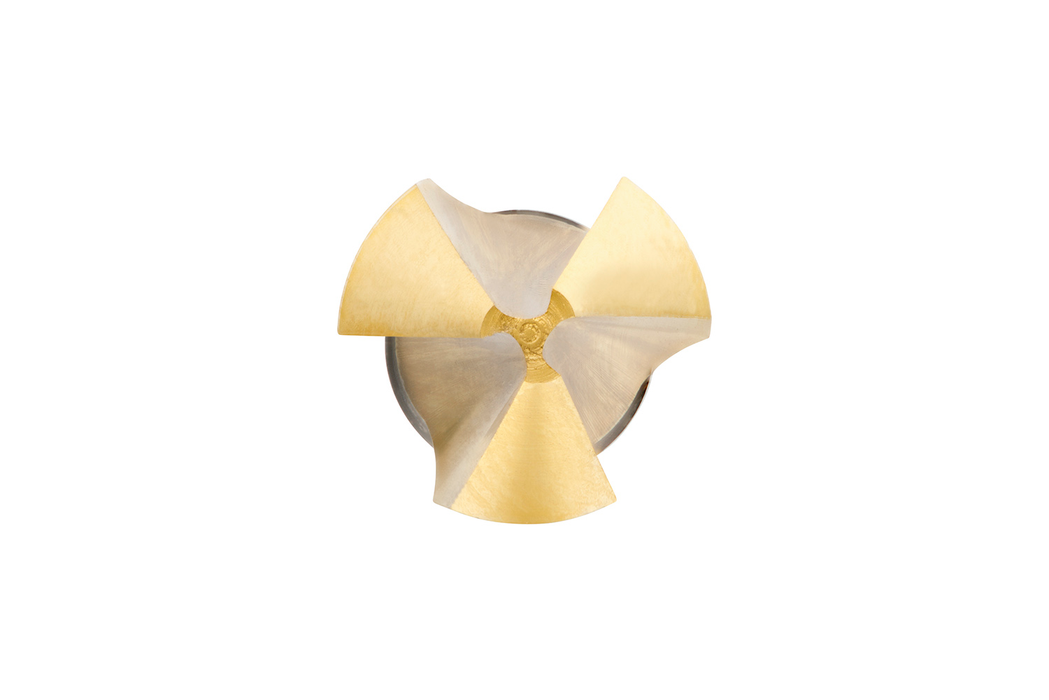

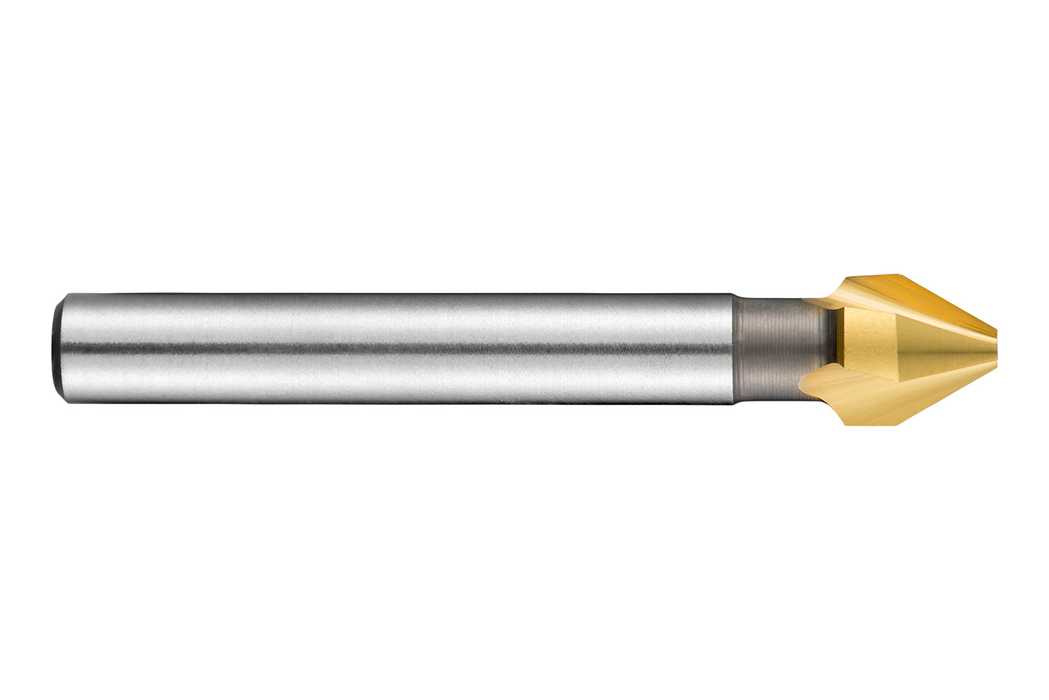

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 20.00mm with an overall length of 67mm and a head length of 17.5mm and 10mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 5.00mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$116.81 - $116.81
$116.81
$116.81 - $116.81
$116.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

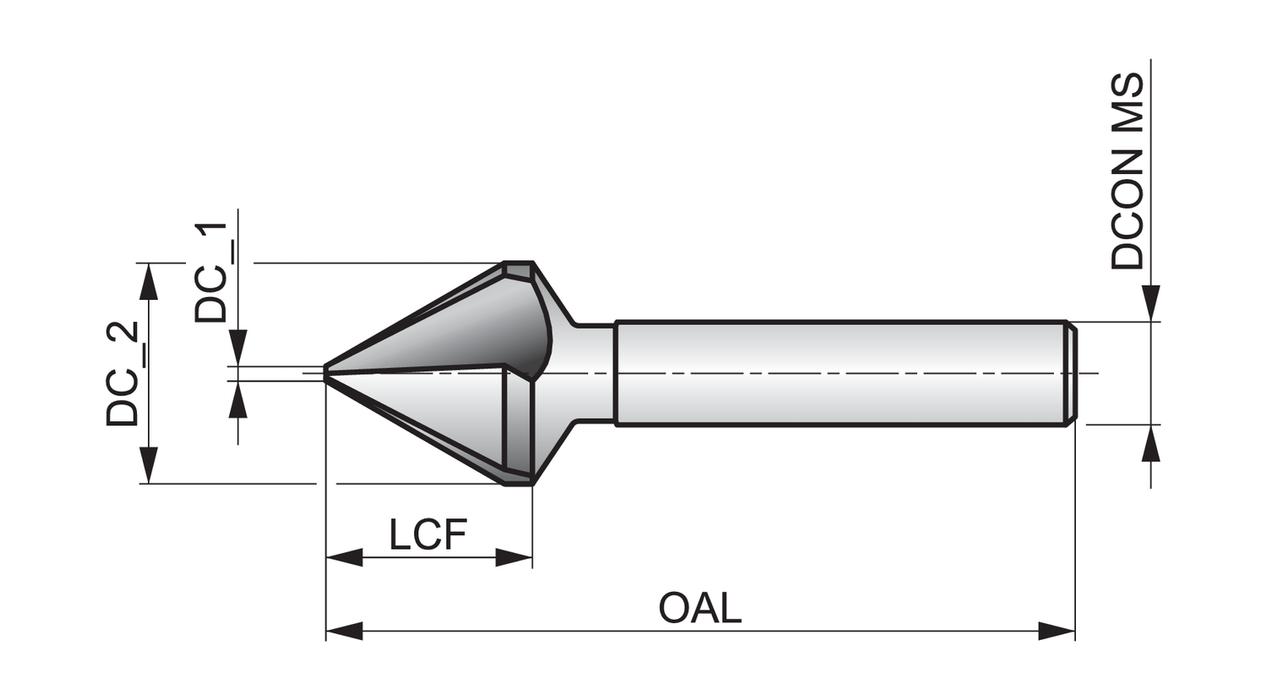

Material: HSS

Drill Point Angle - deg: 60

Overall Length (OAL): 2.6378

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 149591

EAN: 7320760149591

MFG Part Number: 5972771
