G15425.0

G15425.0

SKU DOR5972804
by Dormer Pramet
Primary Use: Possible Use:

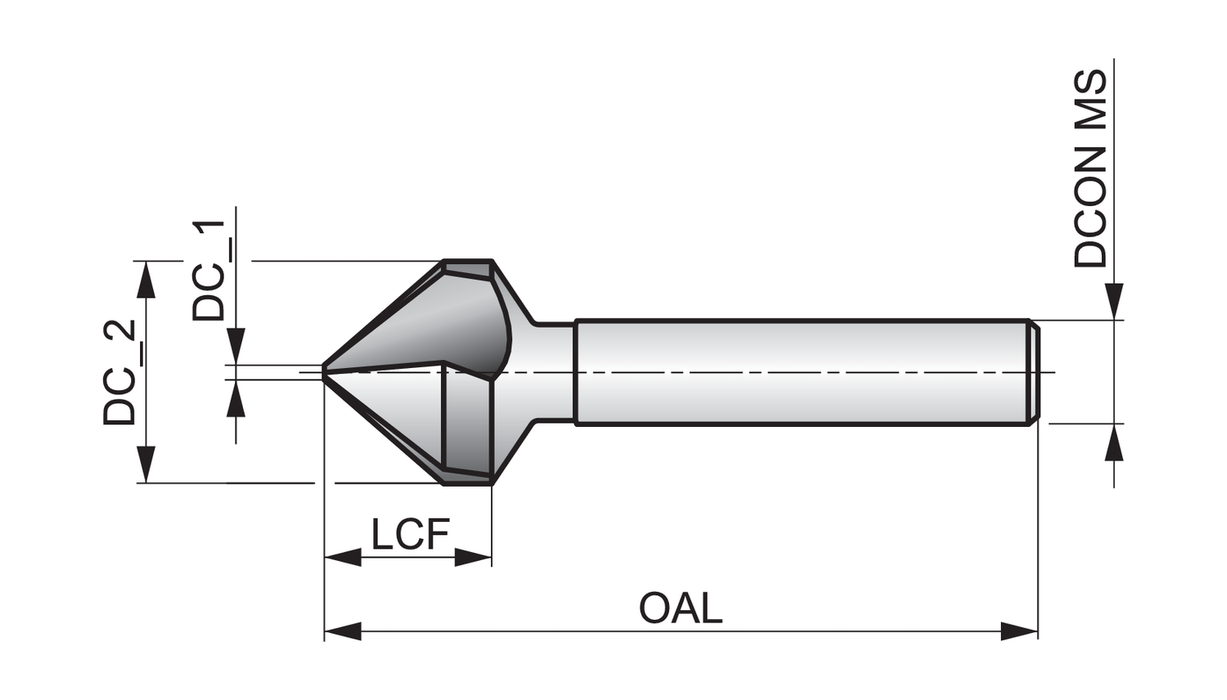

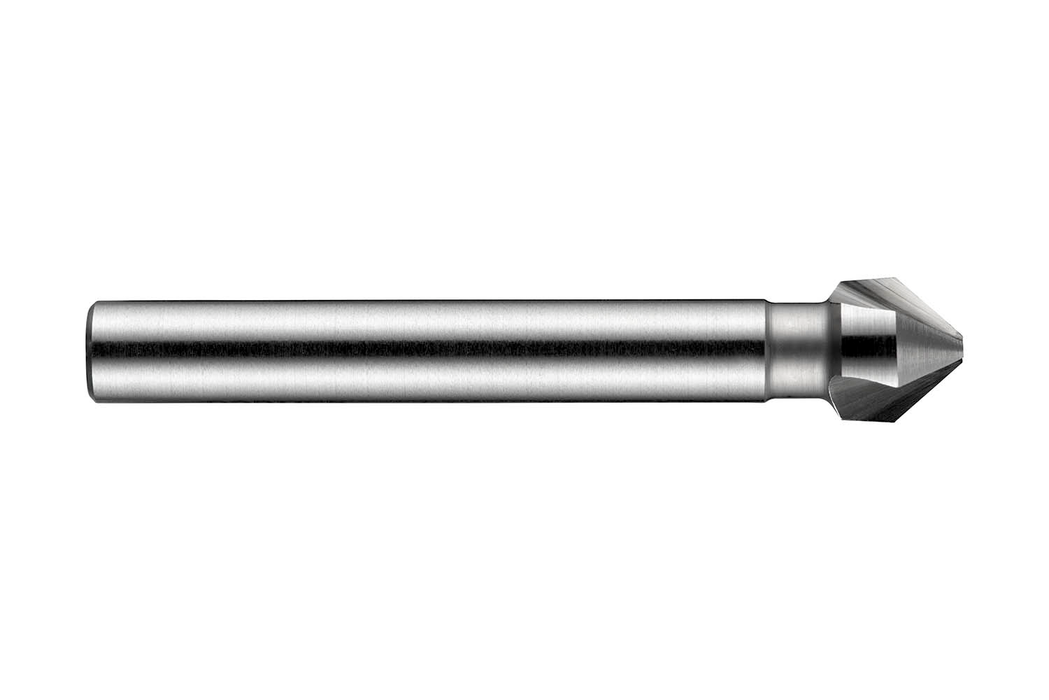

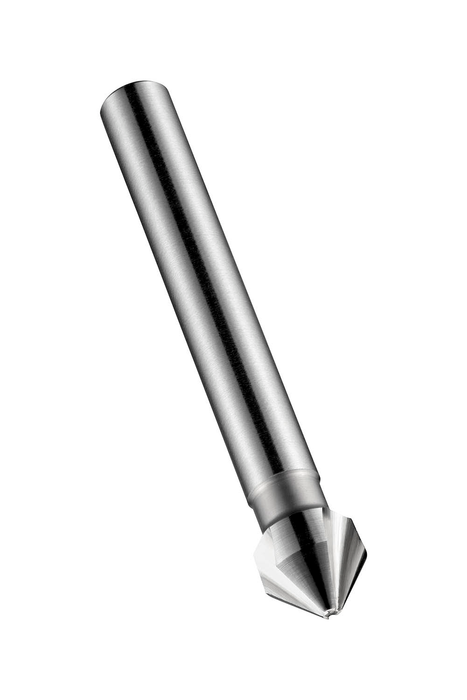

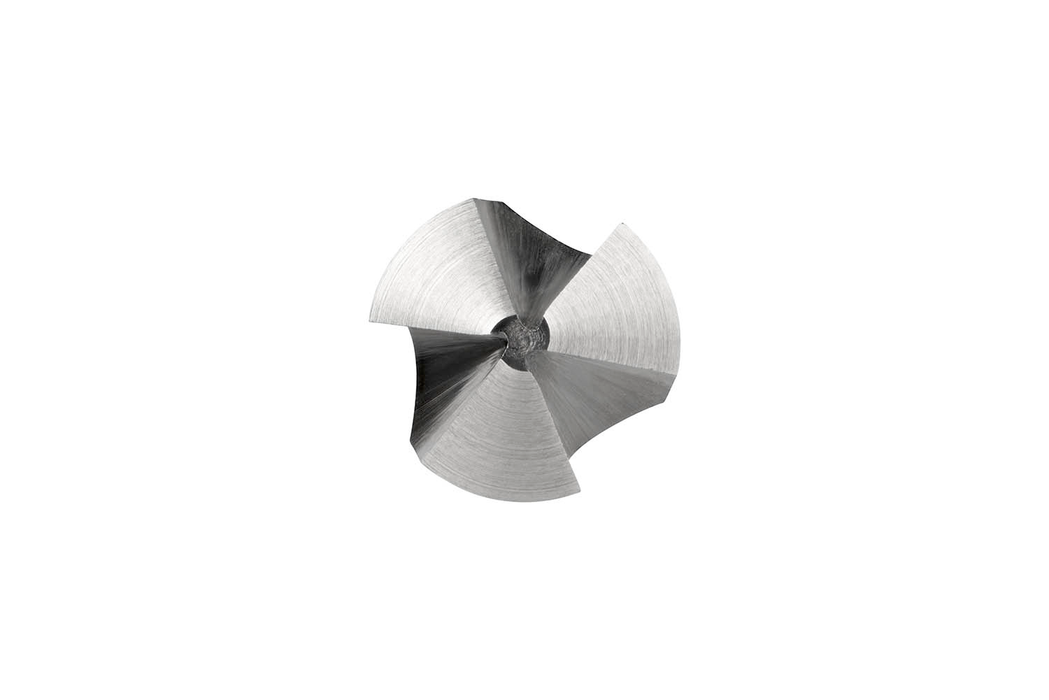

Countersink with 3-flutes, 82° chamfering angle, maximum diameter 25.00mm with an overall length of 67mm and a head length of 15.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for US standard countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$150.64 - $150.64
$150.64
$150.64 - $150.64
$150.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 82

Overall Length (OAL): 2.6378

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 149409

EAN: 7320760149409

MFG Part Number: 5972804
