A9409/16
A9409/16
A9409/16
A9409/16

A9409/16

SKU DOR5972857
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$225.64 CAD - $225.64 CAD
$225.64 CAD
$225.64 CAD - $225.64 CAD
$225.64 CAD

Sold in packs of: 1

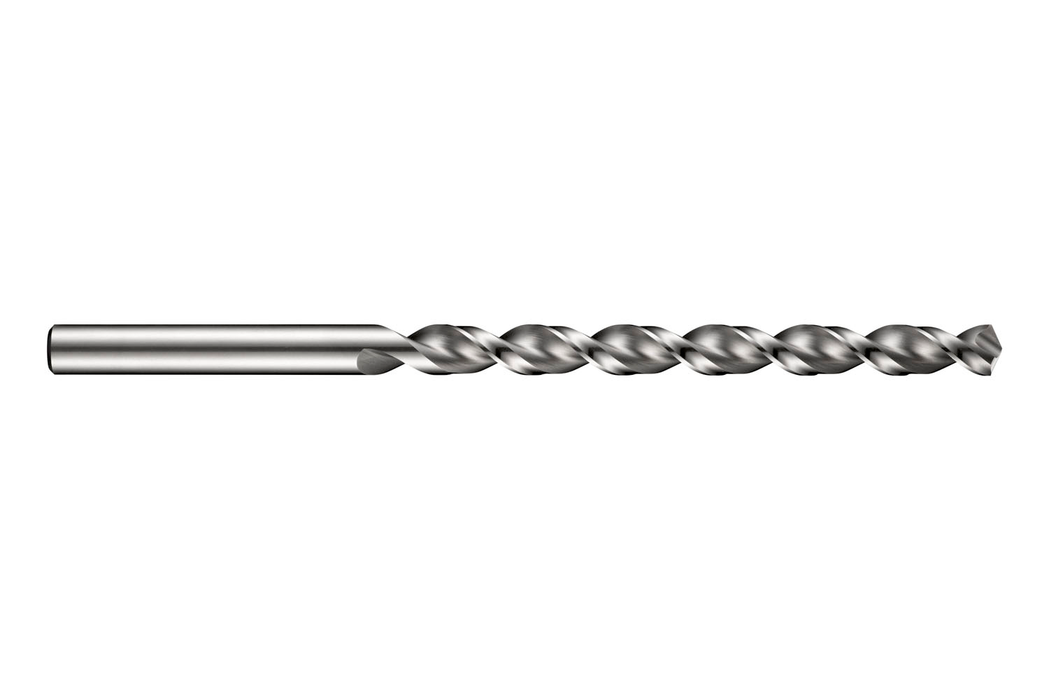

Long series PFX drill with straight shank, diameter 0.5625" (9/16) with an overall length of 210mm and flute length of 124mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9409/16
GradeBright
Product Number5972857
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.5625"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional9/16
Overall Length — in (OAL)8.2677"
Overall Length — mm (OAL)210.0 mm
Flute Length — in (LCF)4.8819"
Flute Length — mm (LCF)124.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.5626"
Connection Dia. — mm (DCON)14.29 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN/ANSI
Reference Numbers
EDP Number59111
EAN7320760059111
File Type Download
A9409/16 — 3D Model STP Download
A9409/16 — Line Drawing PDF Download
