A9409/64

A9409/64

SKU DOR5972865
by Dormer Pramet
Primary Use: Possible Use:

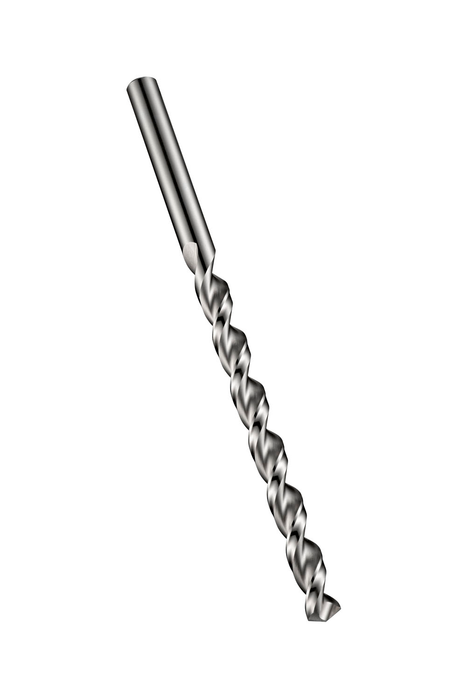

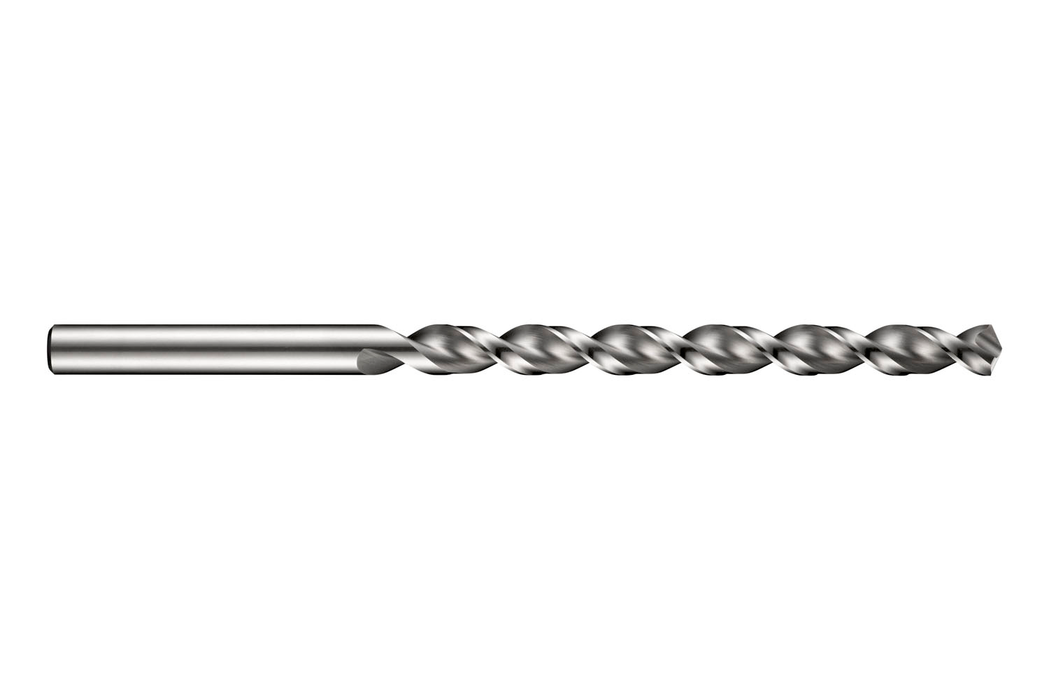

Long series PFX drill with straight shank, diameter 0.1406" (9/64) with an overall length of 137mm and flute length of 76mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$18.67 - $18.67
$18.67
$18.67 - $18.67
$18.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.1406

Cutting Diameter - mm (DC): 3.57

Drill Point Angle - deg: 130

Flute Length: 2.9921

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 5.3937

Connetion Diameter: 0.1406

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/64

Grade: Bright

EDP: 55618

EAN: 7320760055618

MFG Part Number: 5972865
