A9401.7

A9401.7

SKU DOR5972890
by Dormer Pramet
Primary Use: Possible Use:

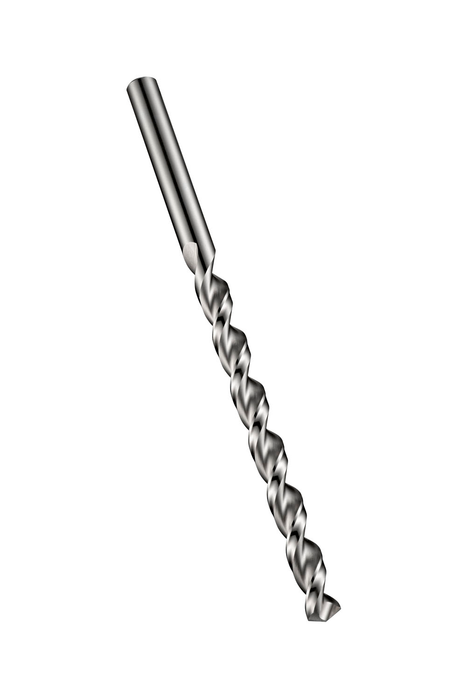

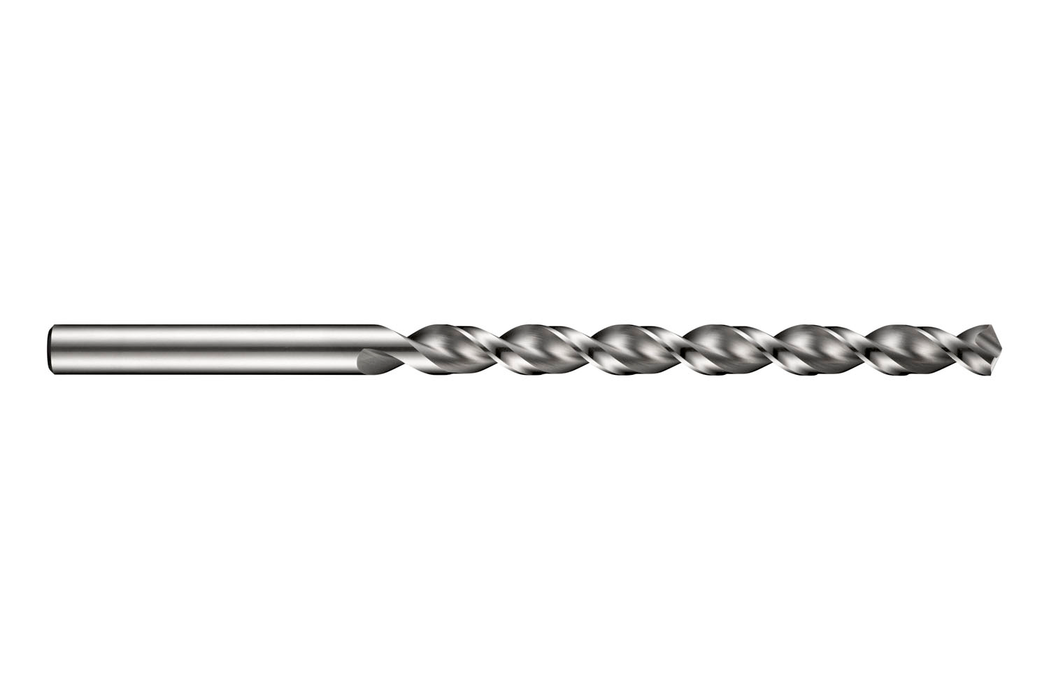

Long series PFX drill with straight shank, diameter 1.7mm with an overall length of 76mm and flute length of 50mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$28.97 - $28.97
$28.97
$28.97 - $28.97
$28.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

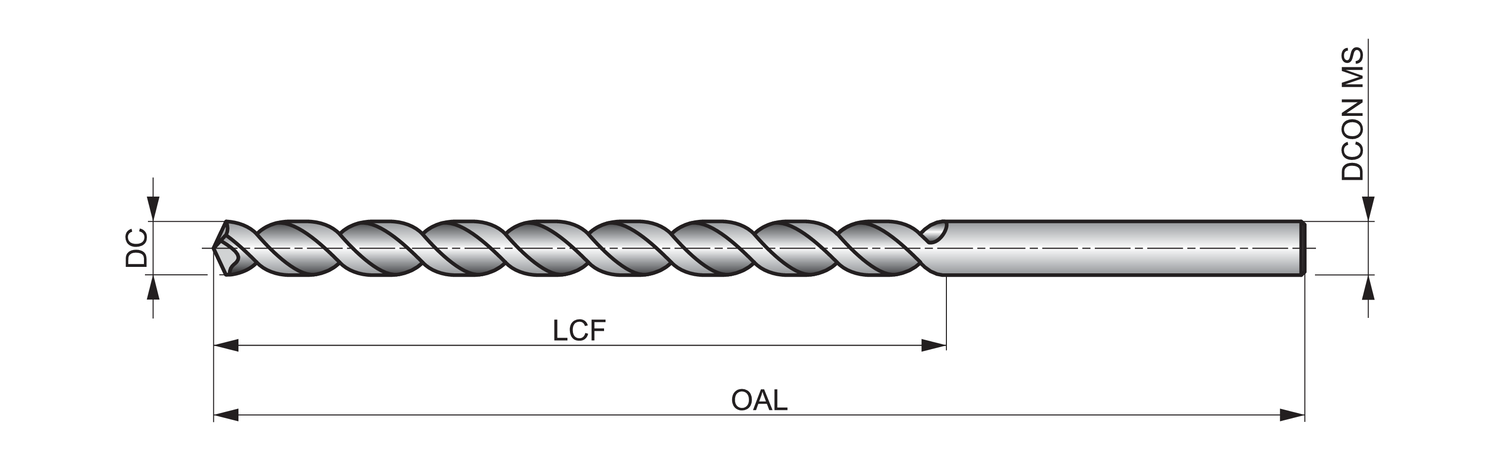

Material: HSS-E

Cutting Diameter - in (DC): 0.0669

Cutting Diameter - mm (DC): 1.7

Drill Point Angle - deg: 130

Flute Length: 1.9685

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 2.9921

Connetion Diameter: 0.0669

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 54260

EAN: 7320760054260

MFG Part Number: 5972890
