A9401/4
A9401/4
A9401/4
A9401/4

A9401/4

SKU DOR5972916
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.29 CAD - $35.29 CAD
$35.29 CAD
$35.29 CAD - $35.29 CAD
$35.29 CAD

Sold in packs of: 1

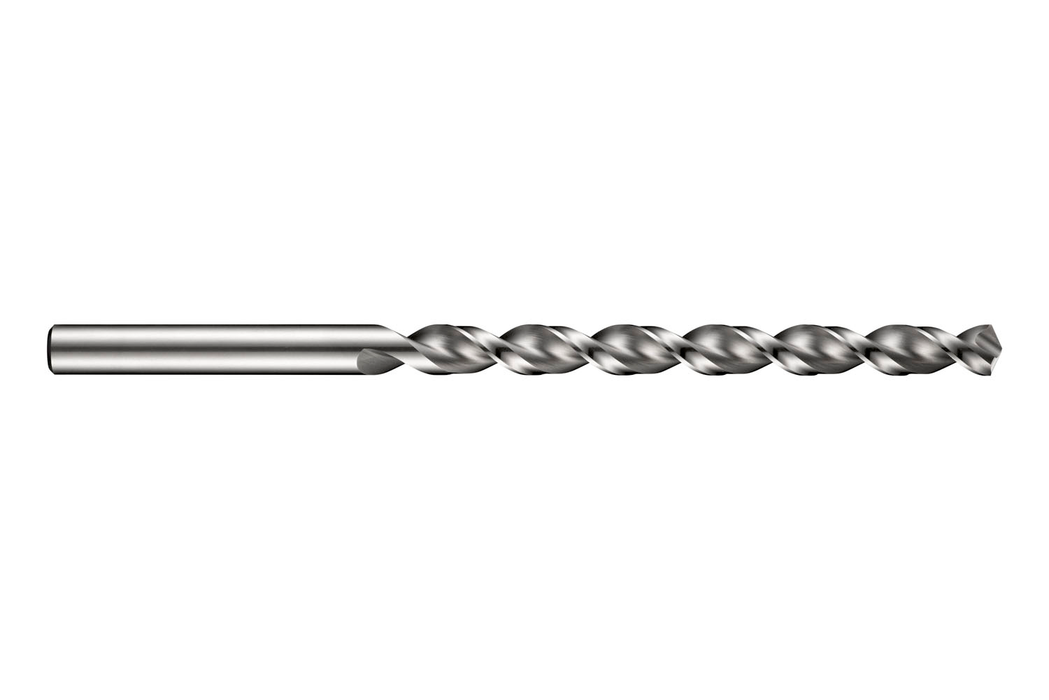

Long series PFX drill with straight shank, diameter 0.2500" (1/4) with an overall length of 156mm and flute length of 95mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9401/4
GradeBright
Product Number5972916
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)6.1417"
Overall Length — mm (OAL)156.0 mm
Flute Length — in (LCF)3.7402"
Flute Length — mm (LCF)95.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN/ANSI
Reference Numbers
EDP Number58169
EAN7320760058169
File Type Download
A9401/4 — 3D Model STP Download
A9401/4 — Line Drawing PDF Download
