A9401/8
A9401/8
A9401/8
A9401/8

A9401/8

SKU DOR5972921
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.11 CAD - $25.11 CAD
$25.11 CAD
$25.11 CAD - $25.11 CAD
$25.11 CAD

Sold in packs of: 1

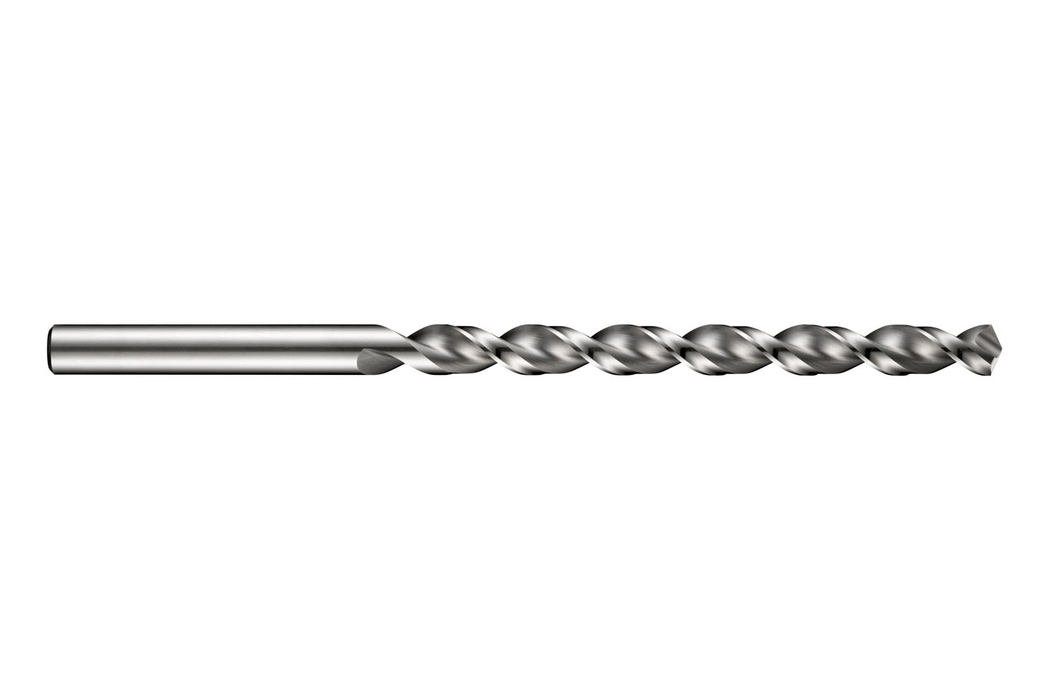

Long series PFX drill with straight shank, diameter 0.1250" (1/8) with an overall length of 130mm and flute length of 70mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9401/8
GradeBright
Product Number5972921
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)5.1181"
Overall Length — mm (OAL)130.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1252"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN/ANSI
Reference Numbers
EDP Number55472
EAN7320760055472
File Type Download
A9401/8 — 3D Model STP Download
A9401/8 — Line Drawing PDF Download
