A94013.0

SKU DOR5973010
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $144.86 CAD - Original price $144.86 CAD
Original price
$144.86 CAD
$144.86 CAD - $144.86 CAD
Current price $144.86 CAD

Sold in packs of: 1

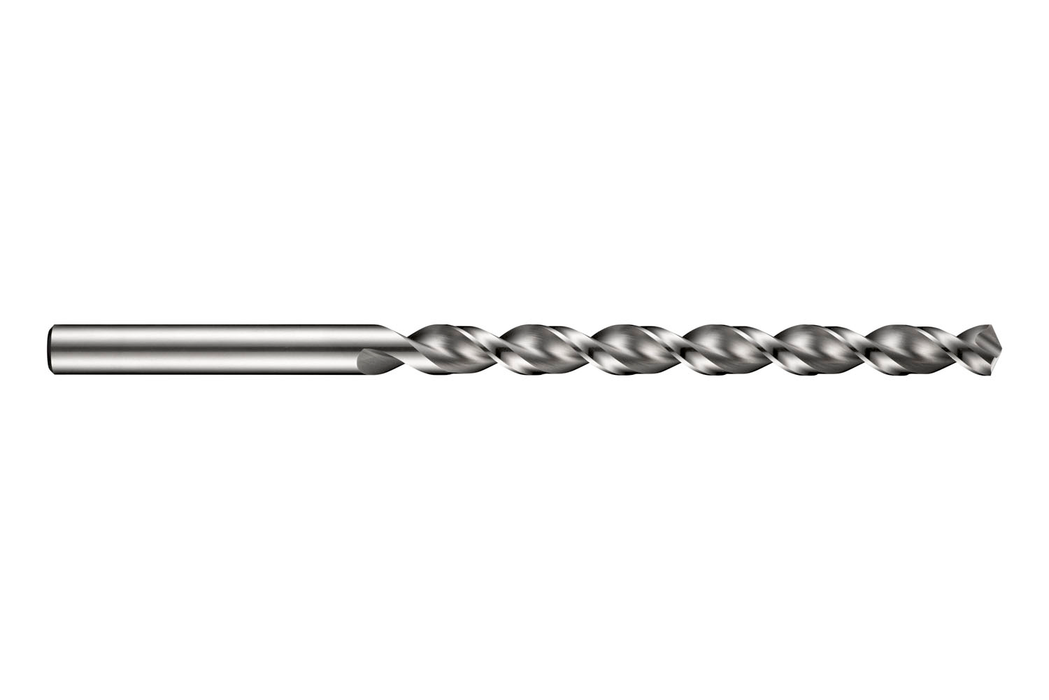

Long series PFX drill with straight shank, diameter 13mm with an overall length of 205mm and flute length of 134mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A94013.0
GradeBright
Product Number5973010
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.5118"
Cutting Diameter — mm (DC)13.0 mm
Overall Length — in (OAL)8.0709"
Overall Length — mm (OAL)205.0 mm
Flute Length — in (LCF)5.2756"
Flute Length — mm (LCF)134.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.5118"
Connection Dia. — mm (DCON)13.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN/ANSI
Reference Numbers
EDP Number59012
EAN7320760059012
File Type Download
A94013.0 — 3D Model STP Download
A94013.0 — Line Drawing PDF Download
