A94013/32
A94013/32
A94013/32
A94013/32

A94013/32

SKU DOR5973018
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.06 CAD - $89.06 CAD
$89.06 CAD
$89.06 CAD - $89.06 CAD
$89.06 CAD

Sold in packs of: 1

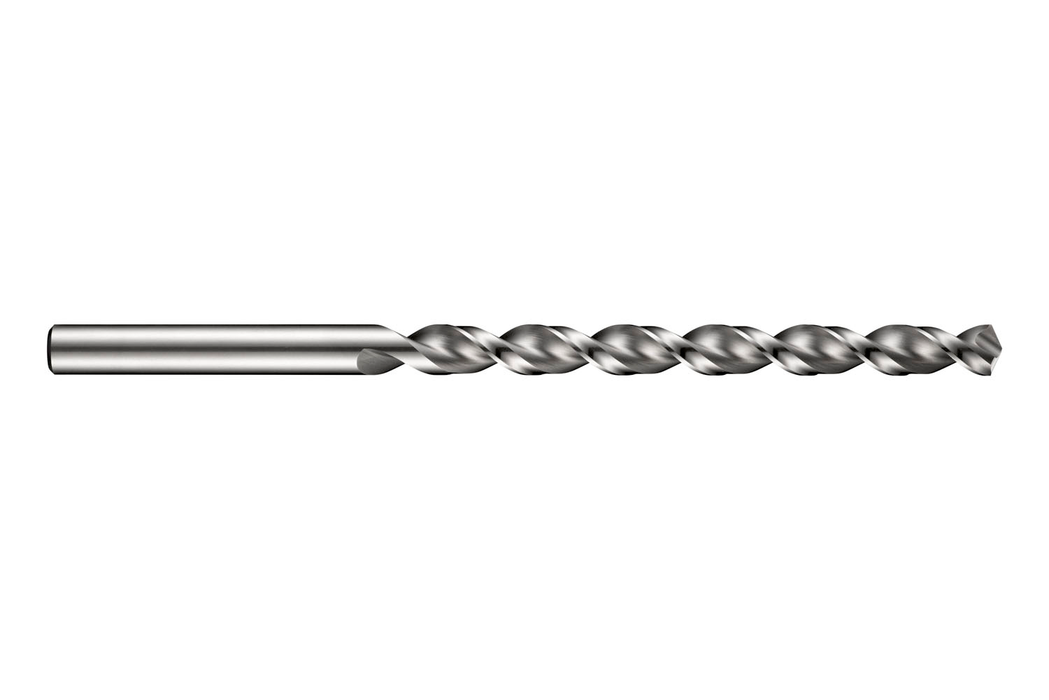

Long series PFX drill with straight shank, diameter 0.4063" (13/32) with an overall length of 178mm and flute length of 111mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A94013/32
GradeBright
Product Number5973018
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.4063"
Cutting Diameter — mm (DC)10.32 mm
Cutting Diameter — Fractional13/32
Overall Length — in (OAL)7.0079"
Overall Length — mm (OAL)178.0 mm
Flute Length — in (LCF)4.3701"
Flute Length — mm (LCF)111.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.4063"
Connection Dia. — mm (DCON)10.32 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN/ANSI
Reference Numbers
EDP Number58787
EAN7320760058787
File Type Download
A94013/32 — 3D Model STP Download
A94013/32 — Line Drawing PDF Download
