A94016.0

A94016.0

SKU DOR5973048
by Dormer Pramet
Primary Use: Possible Use:

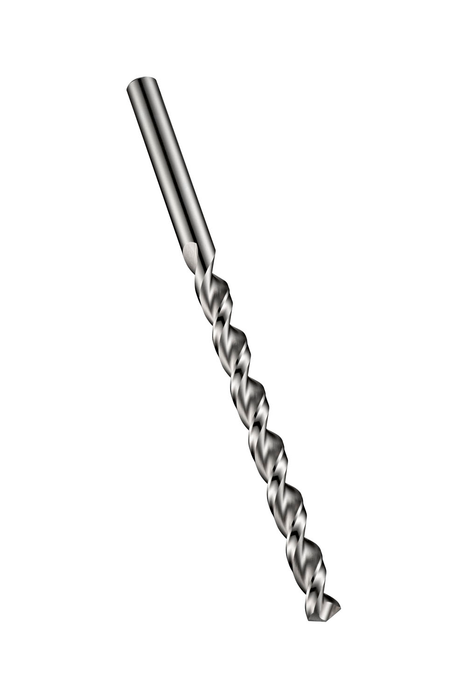

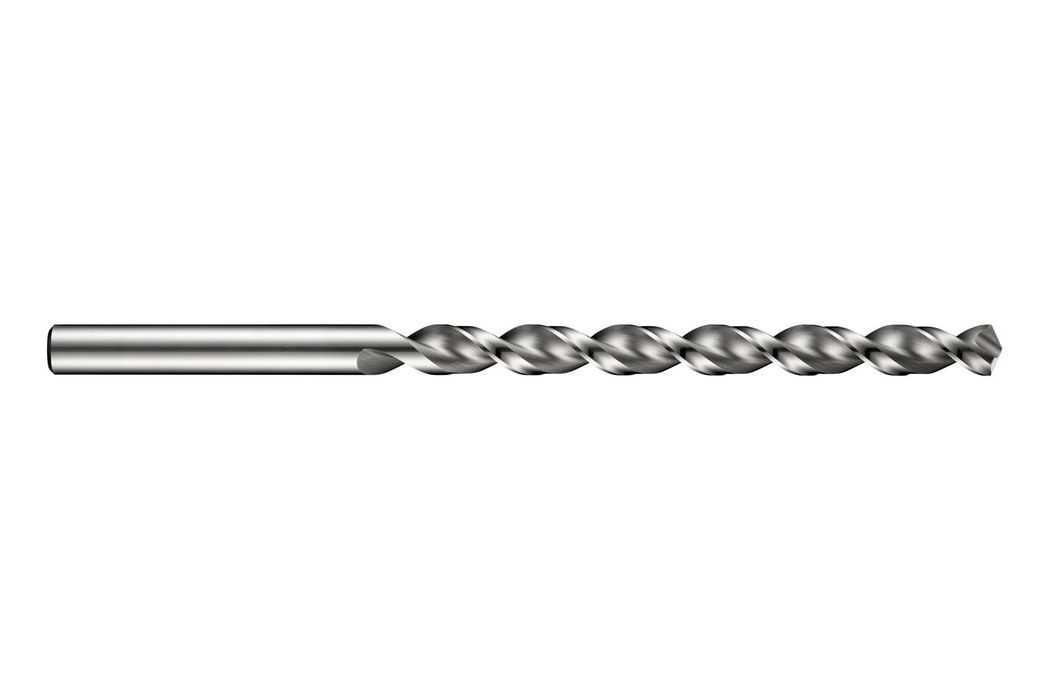

Long series PFX drill with straight shank, diameter 16mm with an overall length of 227mm and flute length of 149mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$285.07 - $285.07
$285.07
$285.07 - $285.07
$285.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

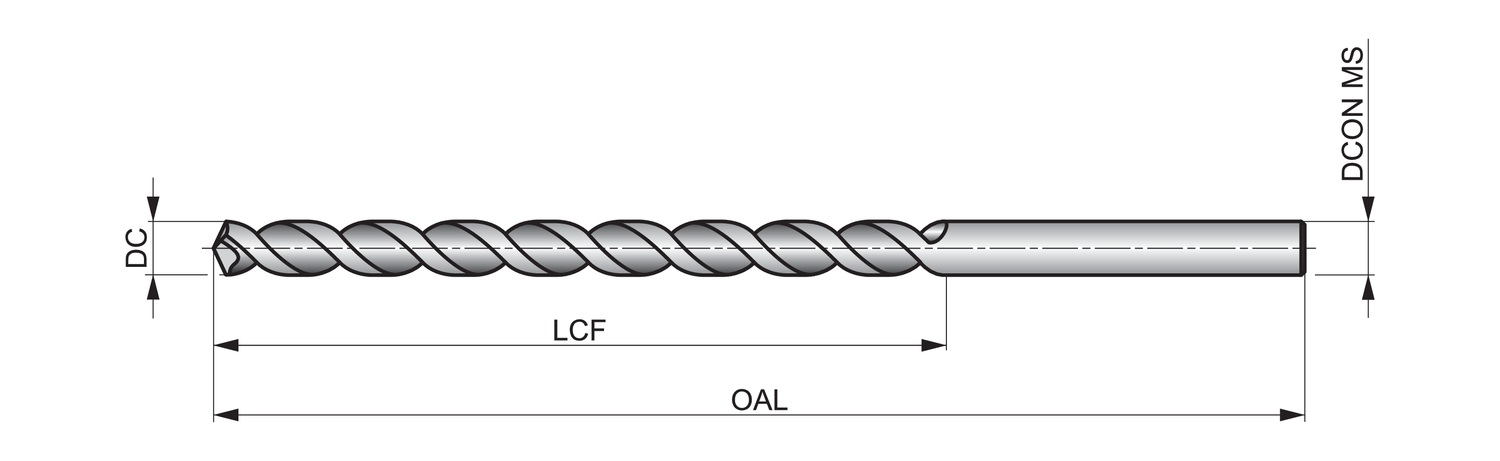

Material: HSS-E

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Drill Point Angle - deg: 130

Flute Length: 5.8661

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 8.937

Connetion Diameter: 0.6299

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 59234

EAN: 7320760059234

MFG Part Number: 5973048
