A9401.0

A9401.0

SKU DOR5973055
by Dormer Pramet
Primary Use: Possible Use:

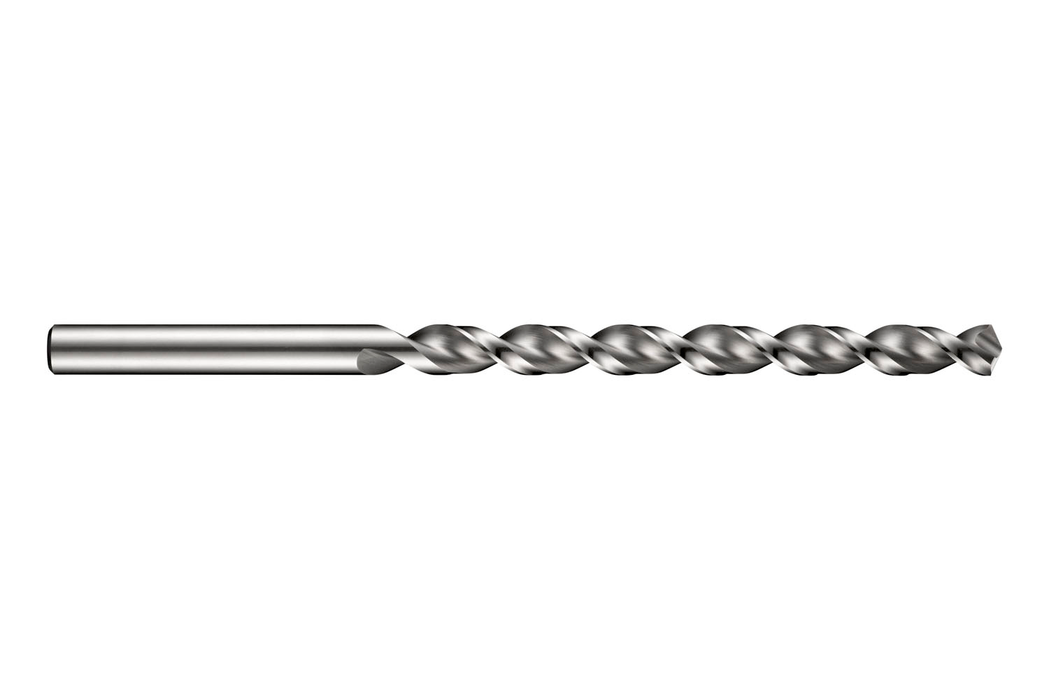

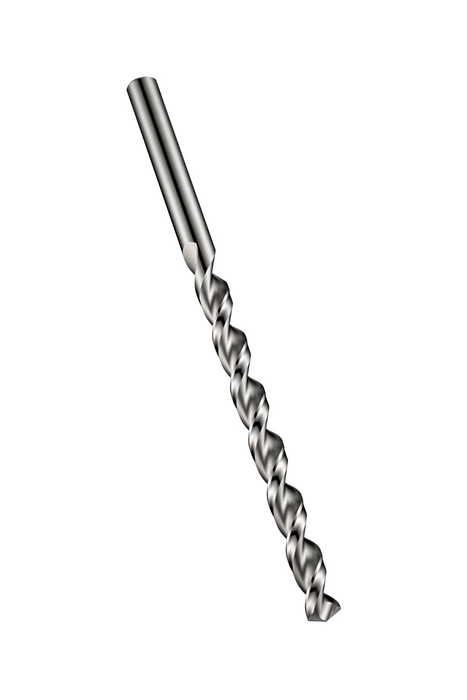

Long series PFX drill with straight shank, diameter 1mm with an overall length of 56mm and flute length of 33mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$29.53 - $29.53
$29.53
$29.53 - $29.53
$29.53
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

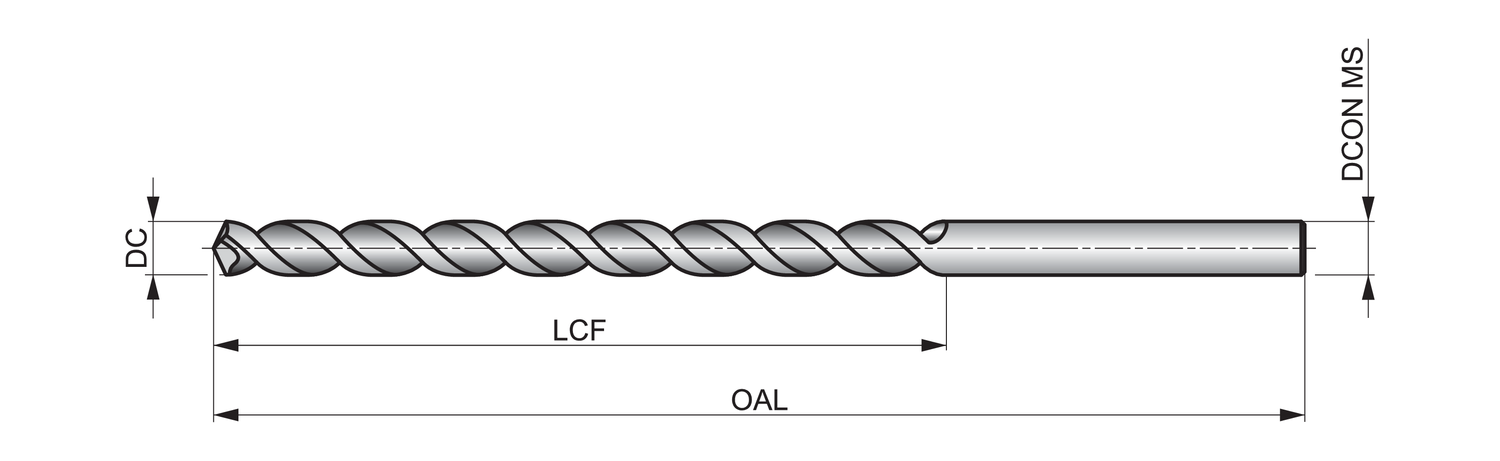

Cutting Diameter - in (DC): 0.0394

Cutting Diameter - mm (DC): 1.0

Drill Point Angle - deg: 130

Flute Length: 1.2992

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 2.2047

Connetion Diameter: 0.0394

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 53614

EAN: 7320760053614

MFG Part Number: 5973055
