G13840.0

G13840.0

SKU DOR5973074
by Dormer Pramet
Primary Use: Possible Use:

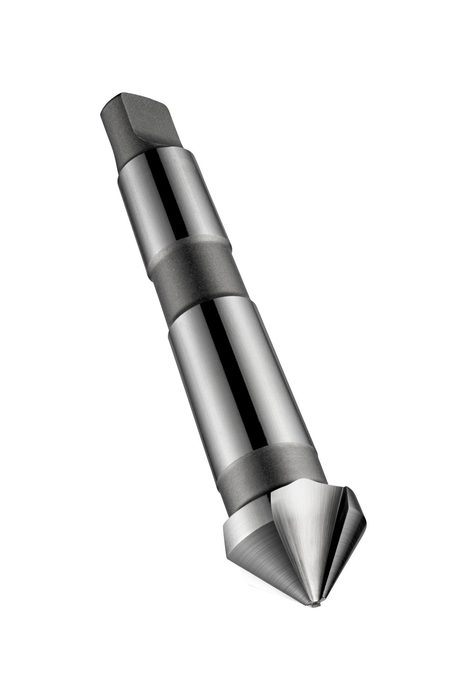

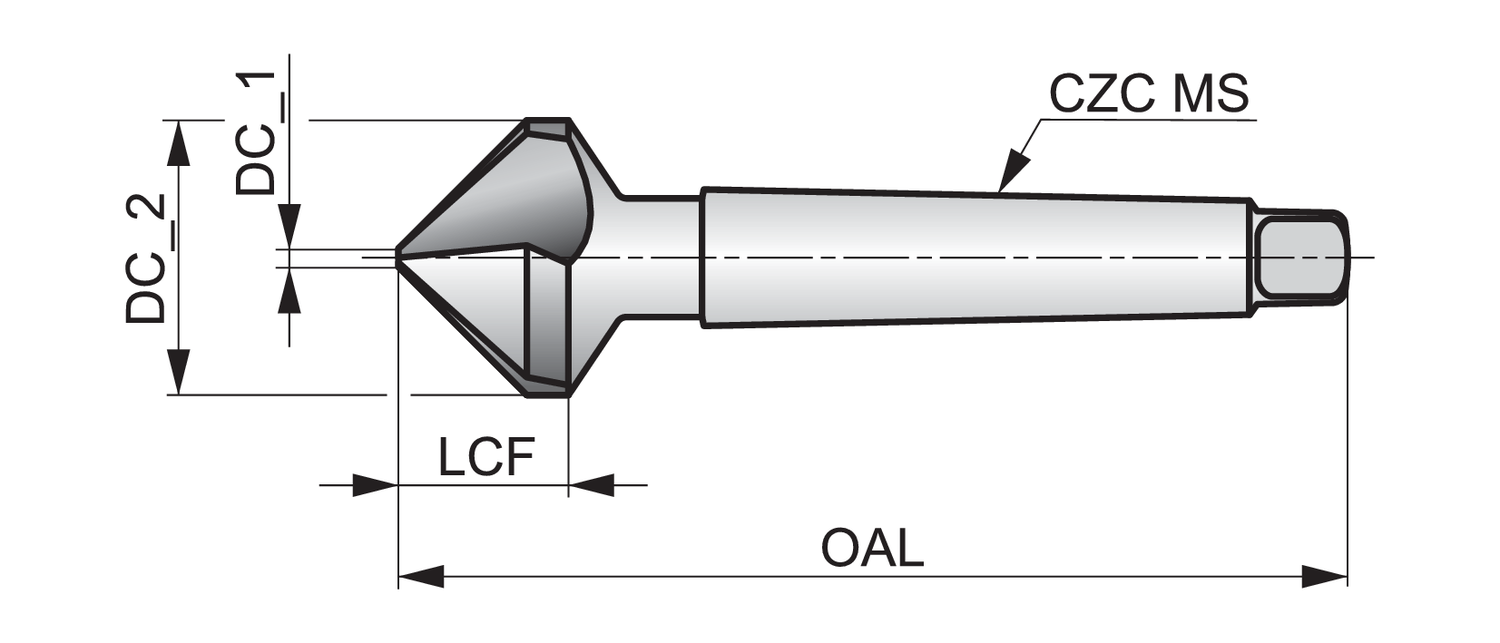

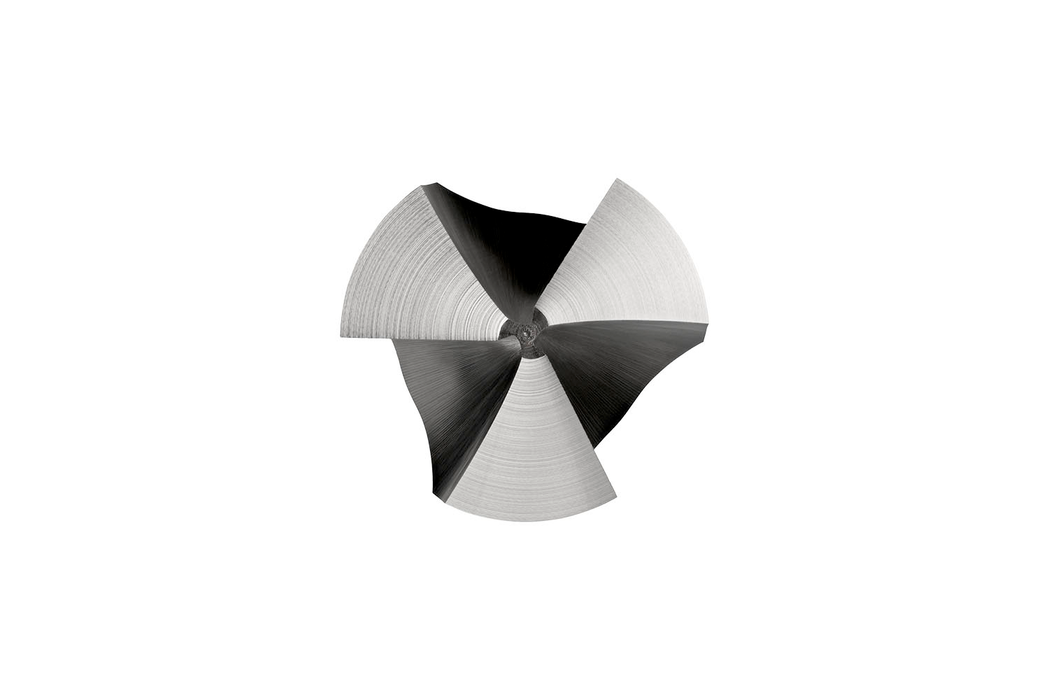

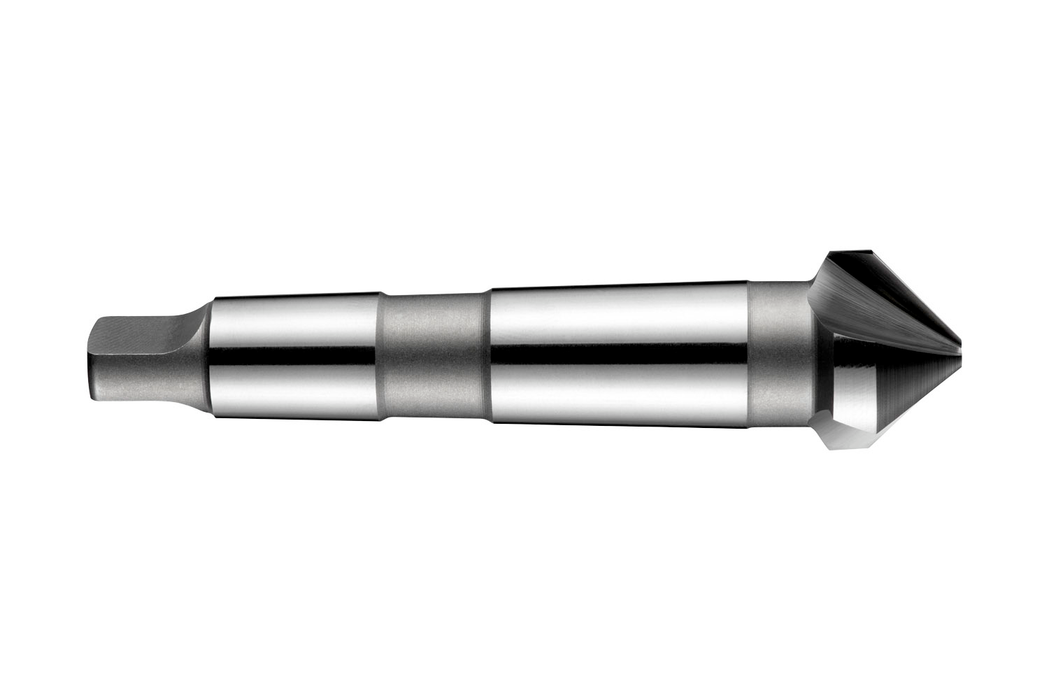

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 40.00mm with an overall length of 140mm and a head length of 20.5mm and MT 3 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 10.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$378.99 - $378.99
$378.99
$378.99 - $378.99
$378.99
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 5.5118

Tool Direction: Right

Shank: Morse Taper Shank

Grade: Bright

EDP: 108963

EAN: 7320760108963

MFG Part Number: 5973074
