A9765.2X195
A9765.2X195
A9765.2X195
A9765.2X195

A9765.2X195

SKU DOR5973107
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.07 CAD - $103.07 CAD
$103.07 CAD
$103.07 CAD - $103.07 CAD
$103.07 CAD

Sold in packs of: 1

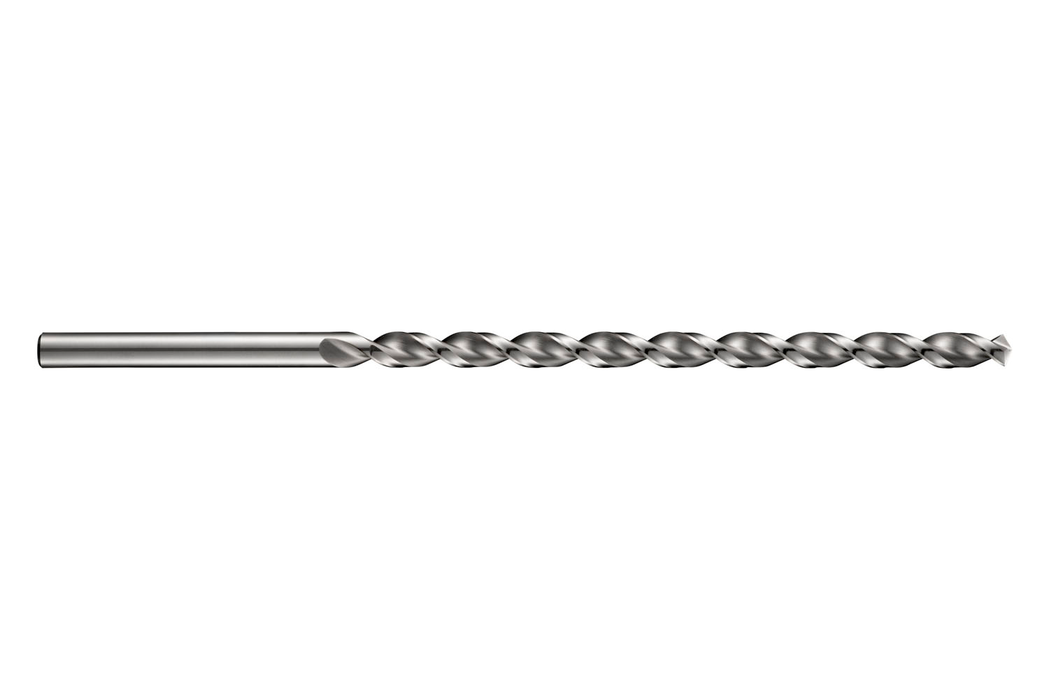

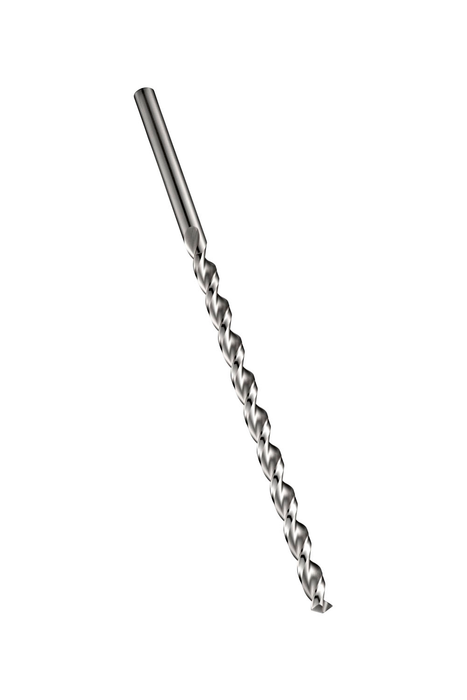

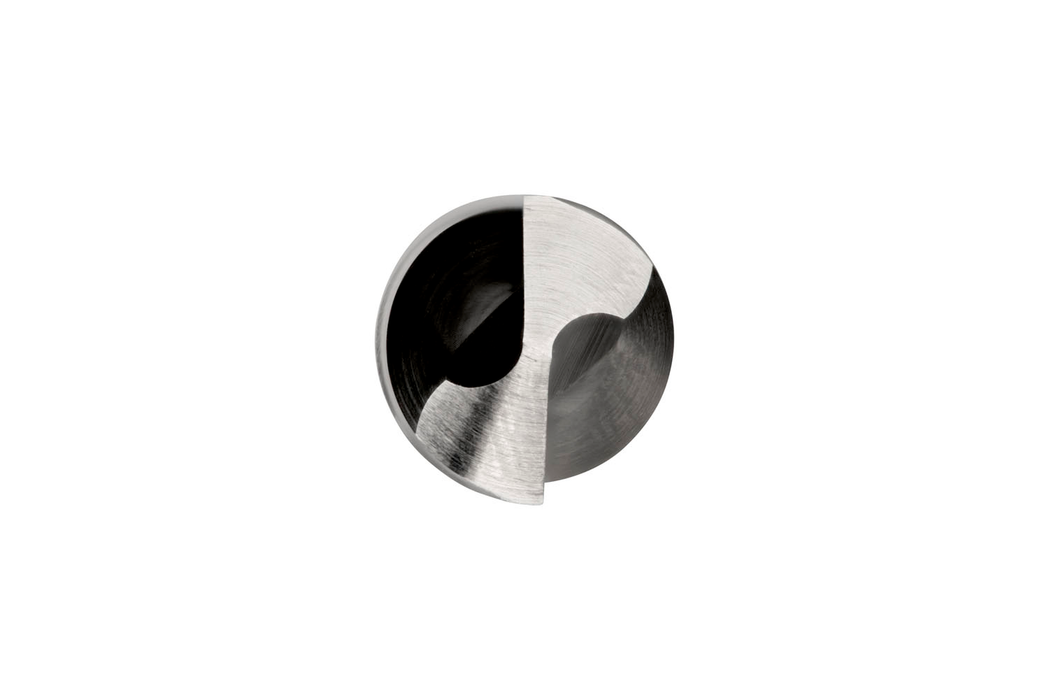

Extra long length PFX drill with straight shank, diameter 5.2mm with an overall length of 195mm and flute length of 135mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9765.2X195
GradeBright
Product Number5973107
Product FamilyA976

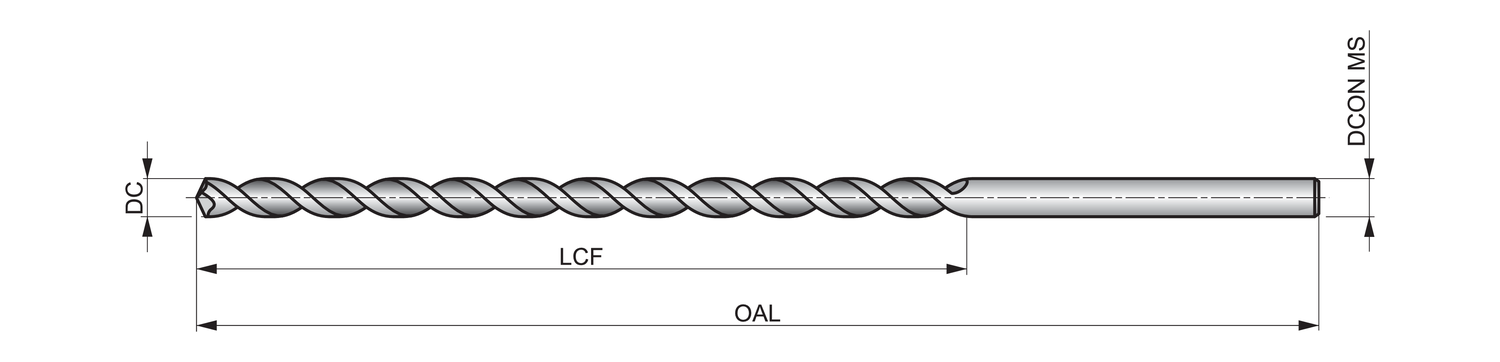

Dimensions
Cutting Diameter — in (DC)0.2047"
Cutting Diameter — mm (DC)5.2 mm
Overall Length — in (OAL)7.6772"
Overall Length — mm (OAL)195.0 mm
Flute Length — in (LCF)5.315"
Flute Length — mm (LCF)135.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.2047"
Connection Dia. — mm (DCON)5.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1869 / 1
Reference Numbers
EDP Number279939
EAN7320760279939
File Type Download
A9765.2X195 — 3D Model STP Download
A9765.2X195 — Line Drawing PDF Download
