A9773.0X190

A9773.0X190

SKU DOR5973110
by Dormer Pramet
Primary Use: Possible Use:

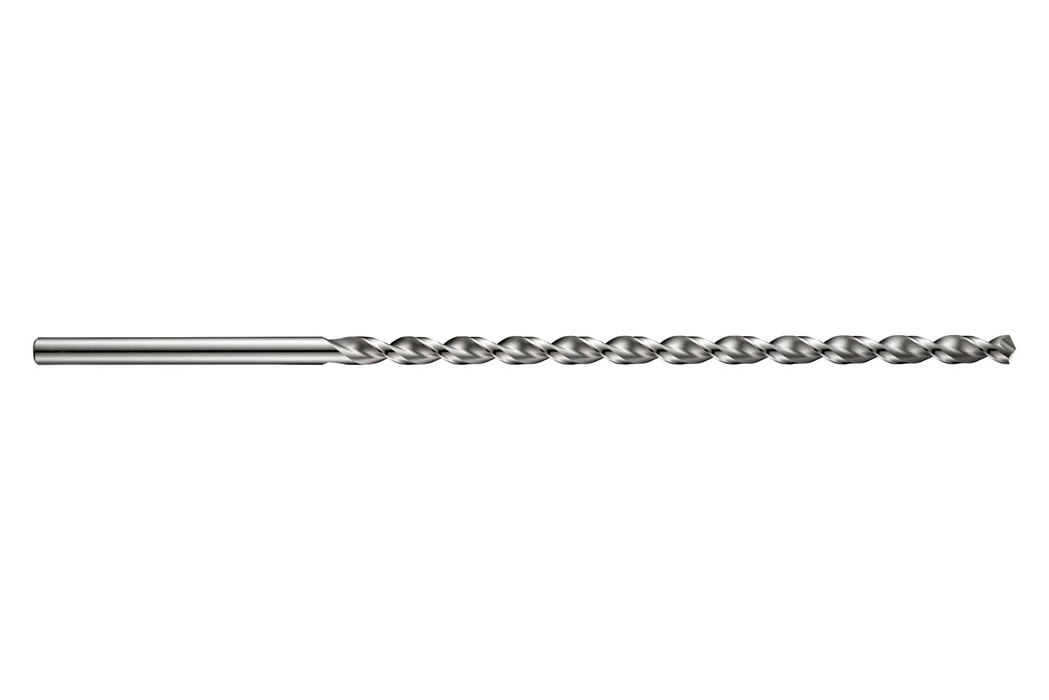

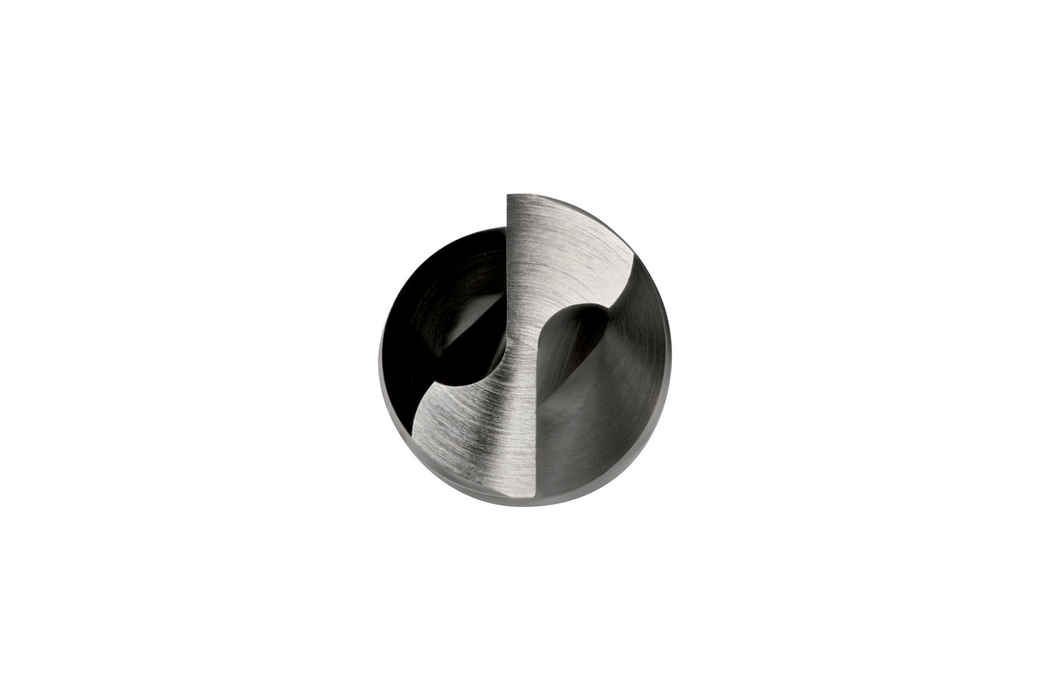

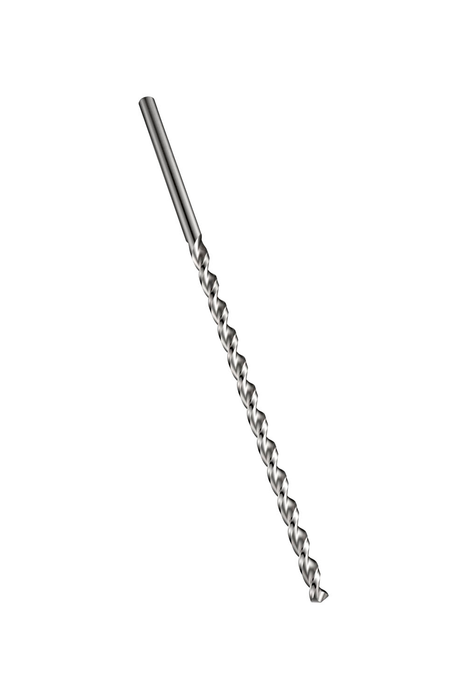

Extra long length PFX drill with straight shank, diameter 3mm with an overall length of 190mm and flute length of 130mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$81.34 - $81.34
$81.34
$81.34 - $81.34
$81.34
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.1181

Cutting Diameter - mm (DC): 3.0

Drill Point Angle - deg: 130

Flute Length: 5.1181

Lenxth x Diameter Ratio: 20

Overall Length (OAL): 7.4803

Connetion Diameter: 0.1181

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 148709

EAN: 7320760148709

MFG Part Number: 5973110
