A9773/32

A9773/32

SKU DOR5973122
by Dormer Pramet
Primary Use: Possible Use:

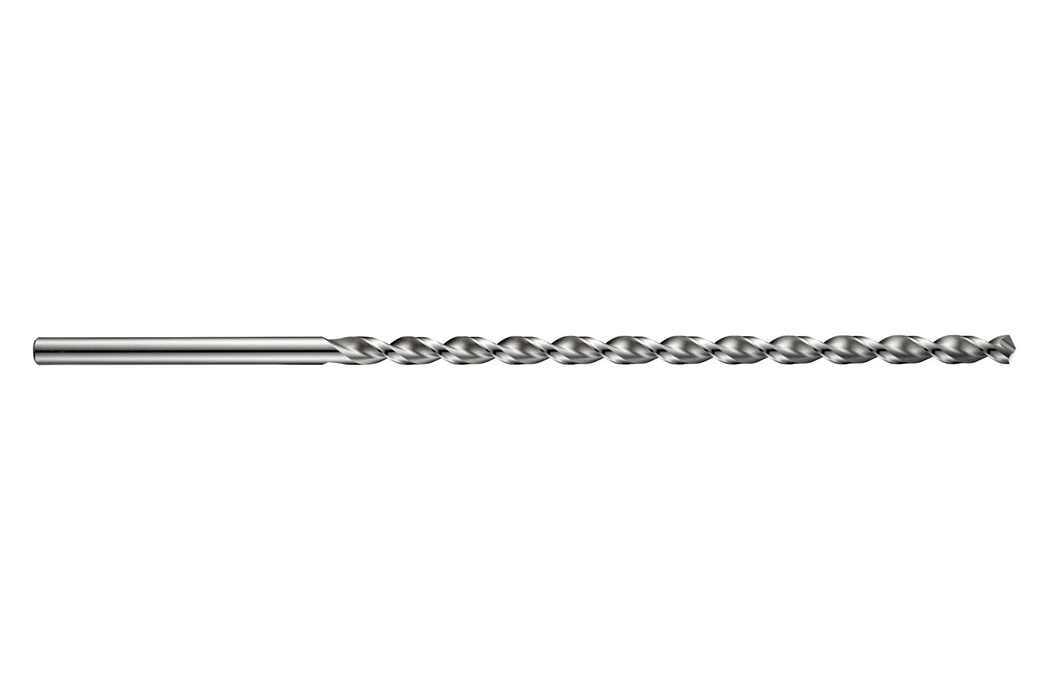

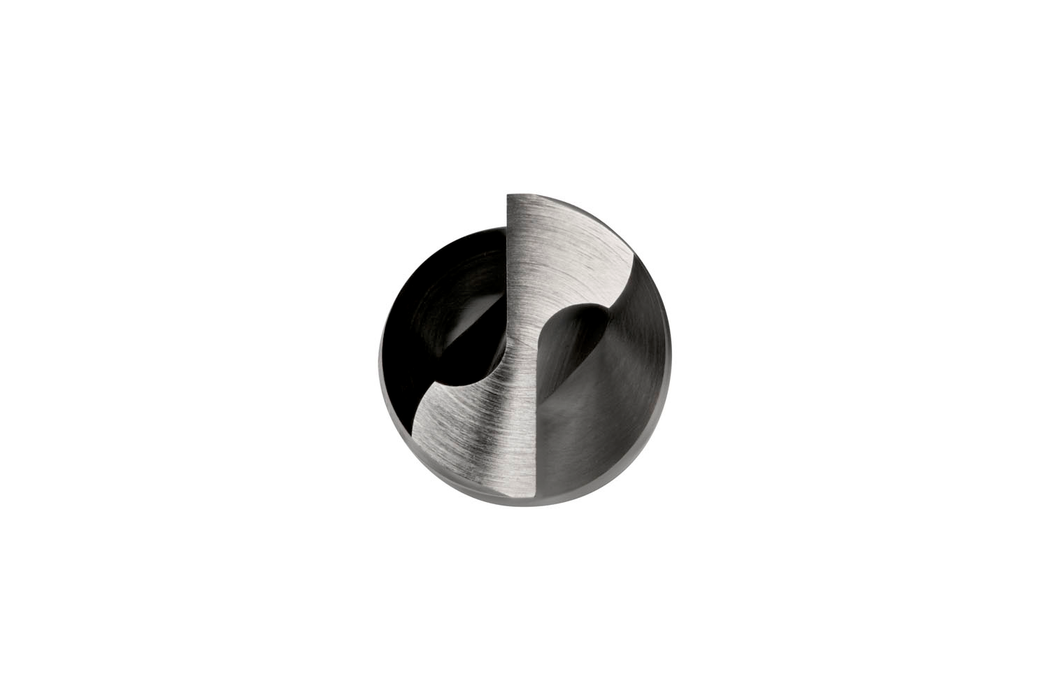

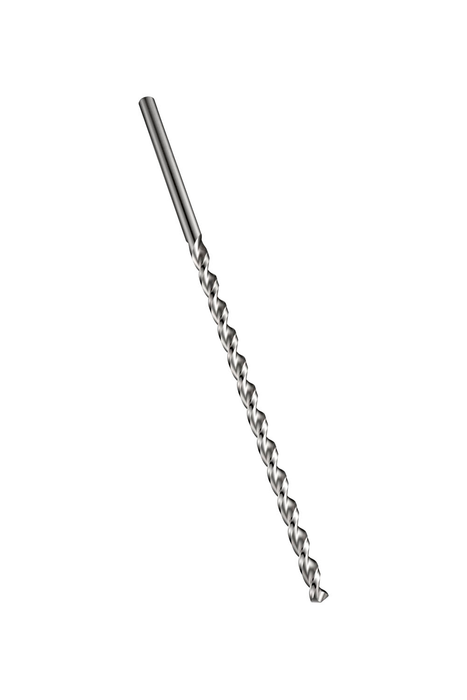

Extra long length PFX drill with straight shank, diameter 0.0938" (3/32) with an overall length of 170mm and flute length of 115mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$76.61 - $76.61
$76.61
$76.61 - $76.61
$76.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.0938

Cutting Diameter - mm (DC): 2.38

Drill Point Angle - deg: 130

Flute Length: 4.5276

Lenxth x Diameter Ratio: 20

Overall Length (OAL): 6.6929

Connetion Diameter: 0.0937

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/32

Grade: Bright

EDP: 347416

EAN: 7320760347416

MFG Part Number: 5973122
