G1425.0

G1425.0

SKU DOR5973143
by Dormer Pramet
Primary Use:

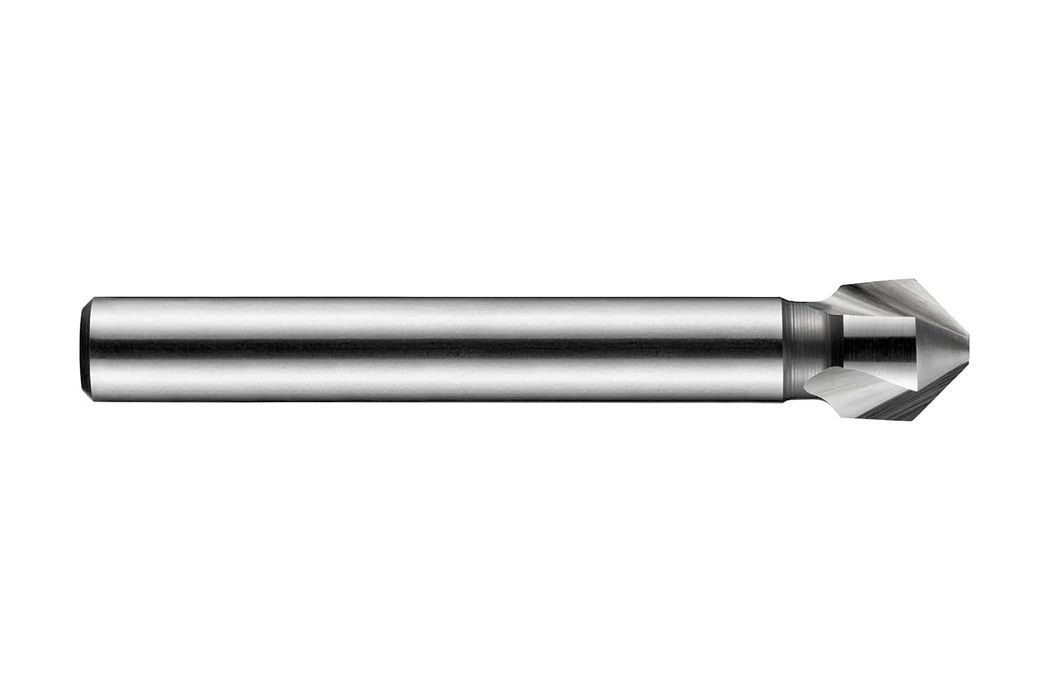

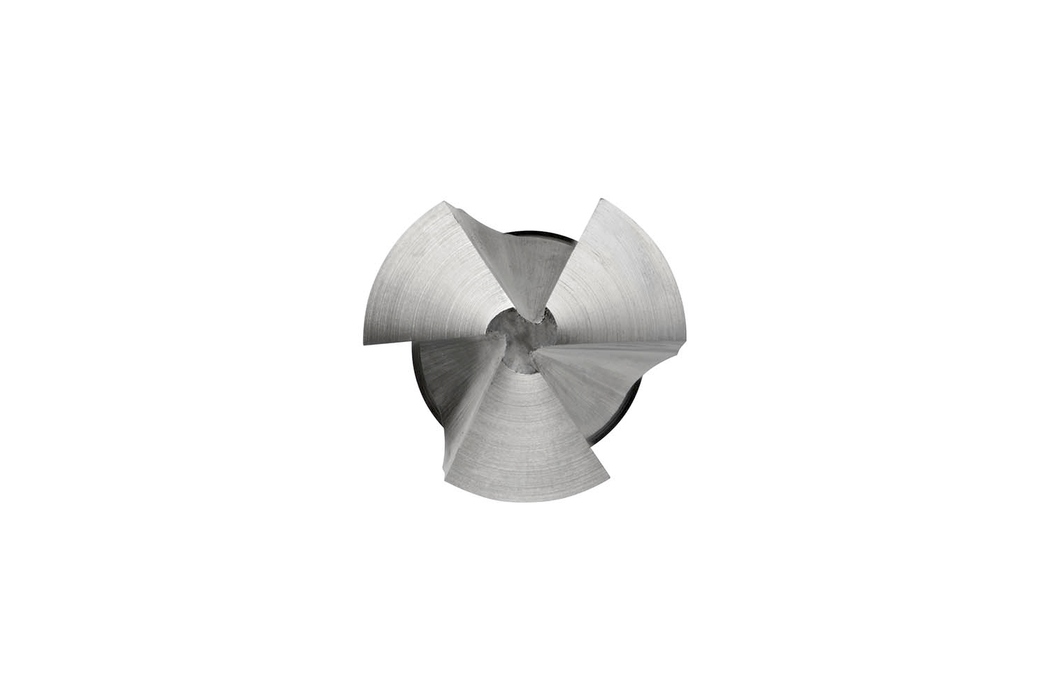

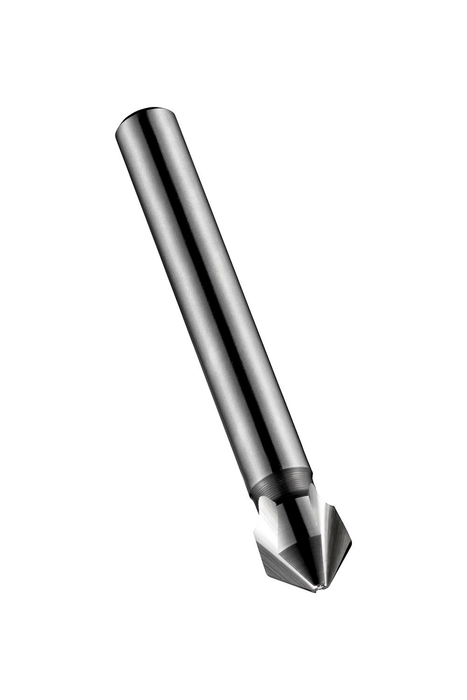

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 5.00mm with an overall length of 40mm and a head length of 4.5mm and 4mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$48.63 - $48.63
$48.63
$48.63 - $48.63
$48.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 1.5748

Connetion Diameter: 0.1575

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 168066

EAN: 7320760168066

MFG Part Number: 5973143
