A9765/16

A9765/16

SKU DOR5973150
by Dormer Pramet
Primary Use: Possible Use:

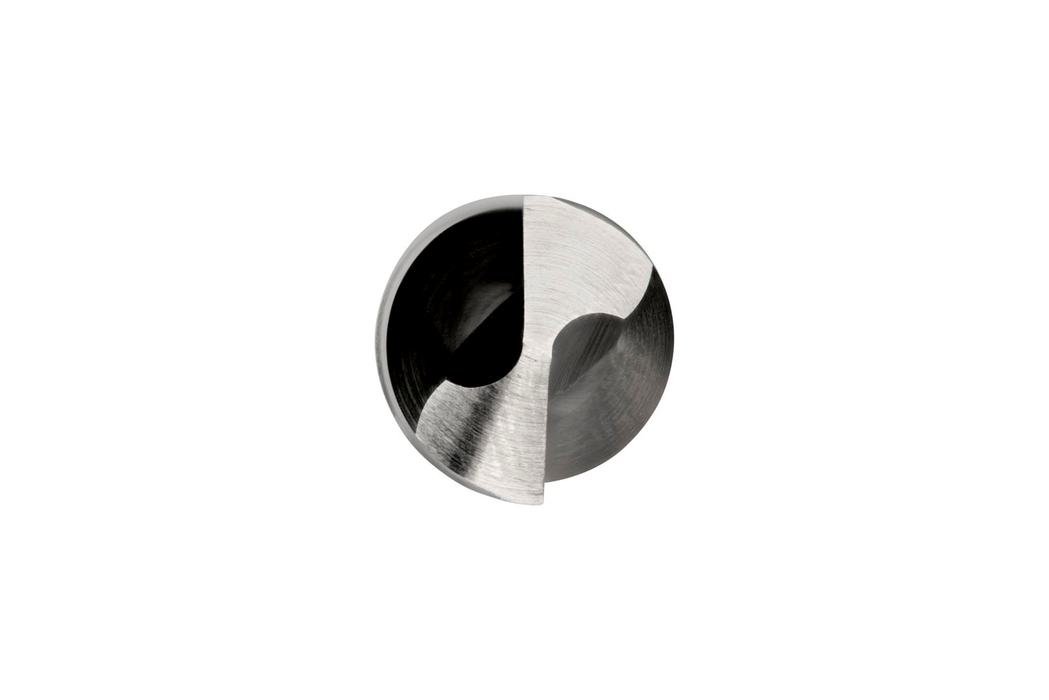

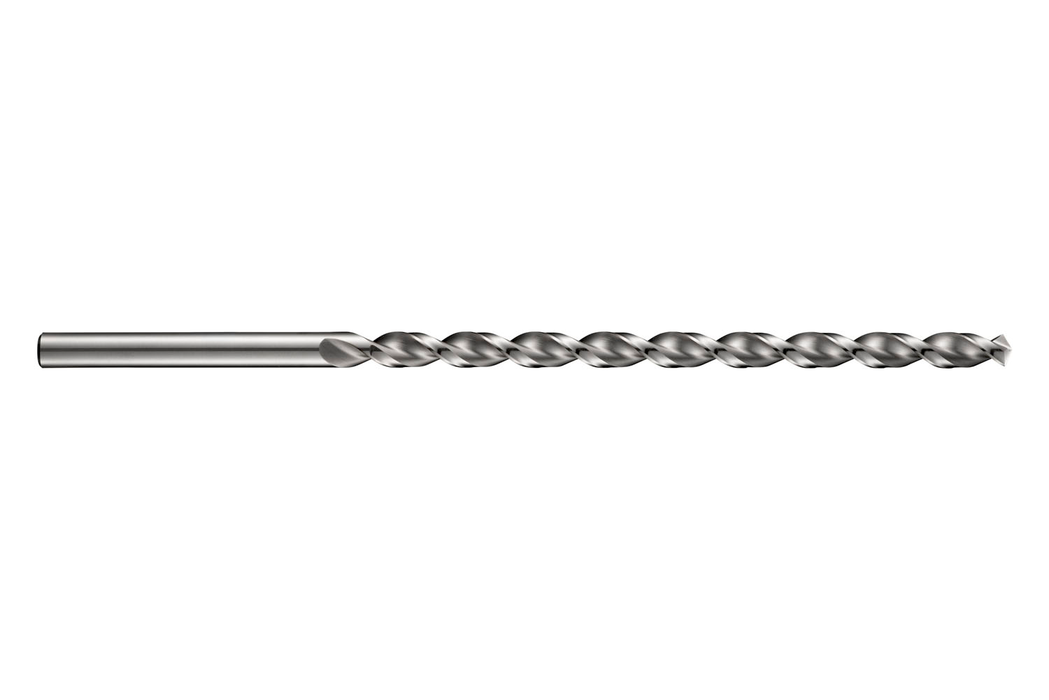

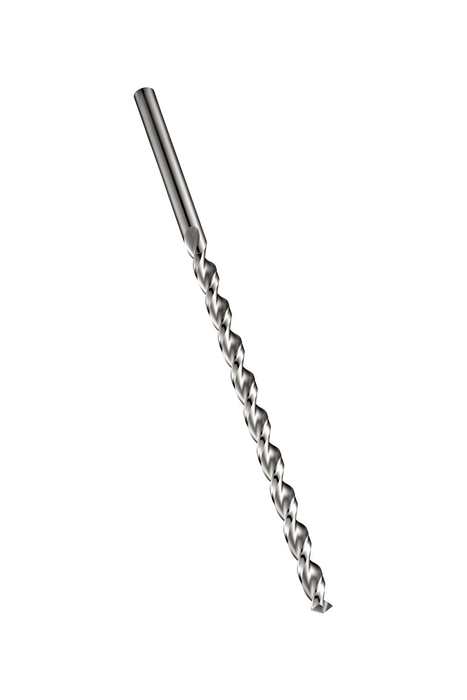

Extra long length PFX drill with straight shank, diameter 0.3125" (5/16) with an overall length of 240mm and flute length of 165mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$156.93 - $156.93
$156.93
$156.93 - $156.93
$156.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.3125

Cutting Diameter - mm (DC): 7.94

Drill Point Angle - deg: 130

Flute Length: 6.4961

Lenxth x Diameter Ratio: 15

Overall Length (OAL): 9.4488

Connetion Diameter: 0.3126

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/16

Grade: Bright

EDP: 347102

EAN: 7320760347102

MFG Part Number: 5973150
