G14910

G14910

SKU DOR5973182
by Dormer Pramet
Primary Use: Possible Use:

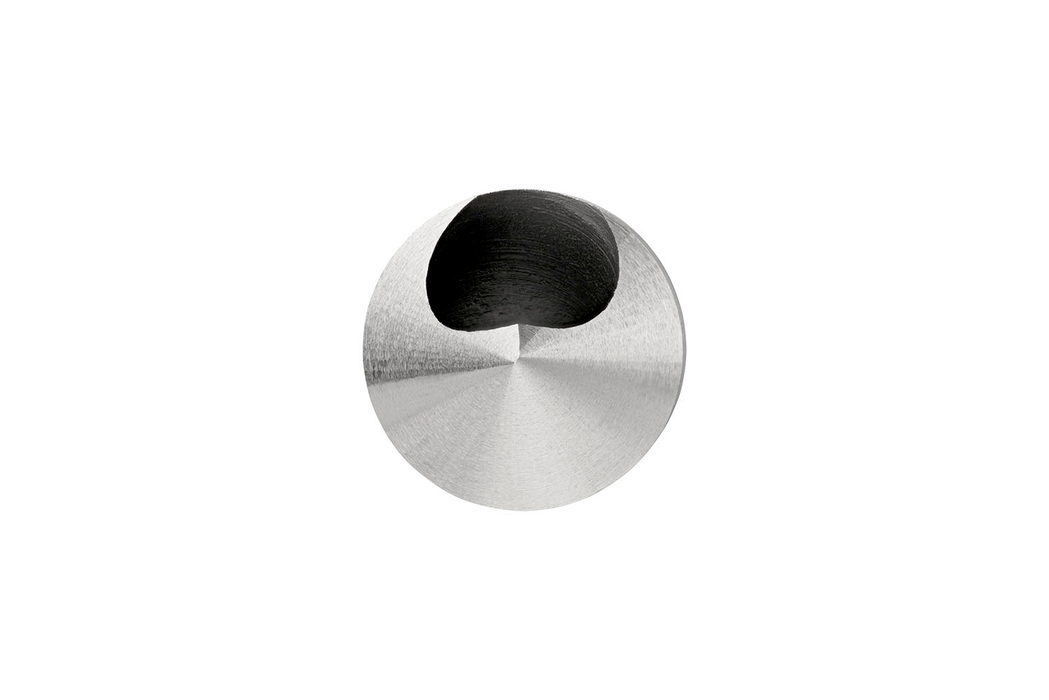

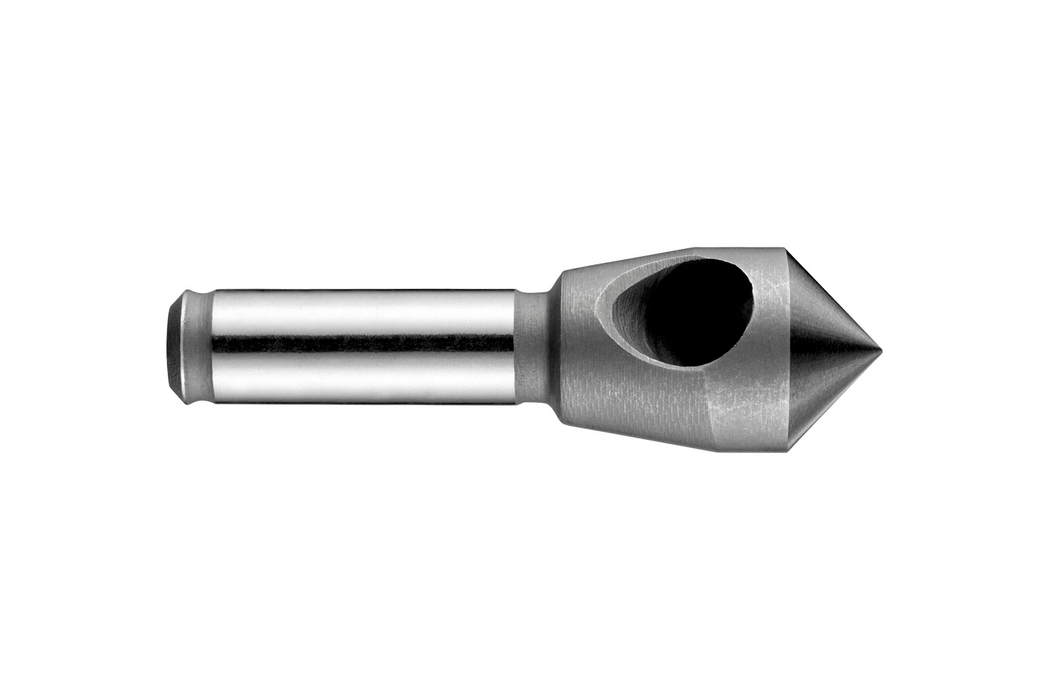

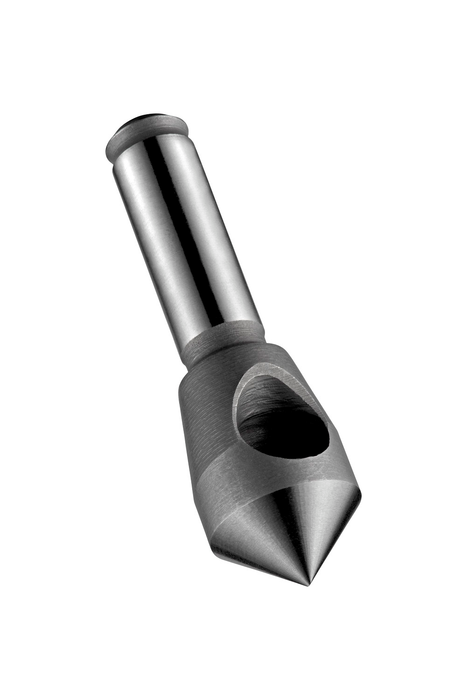

Zero flute countersink, through hole style, with 1-cutting edge, 90° chamfering angle, maximum diameter 10.00mm with an overall length of 48mm and a head length of 23mm and 8mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 5.00mm, cobalt based HSS-E with standard bright finish for machining free machining, plain carbon and alloy steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$46.41 - $46.41
$46.41
$46.41 - $46.41
$46.41
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

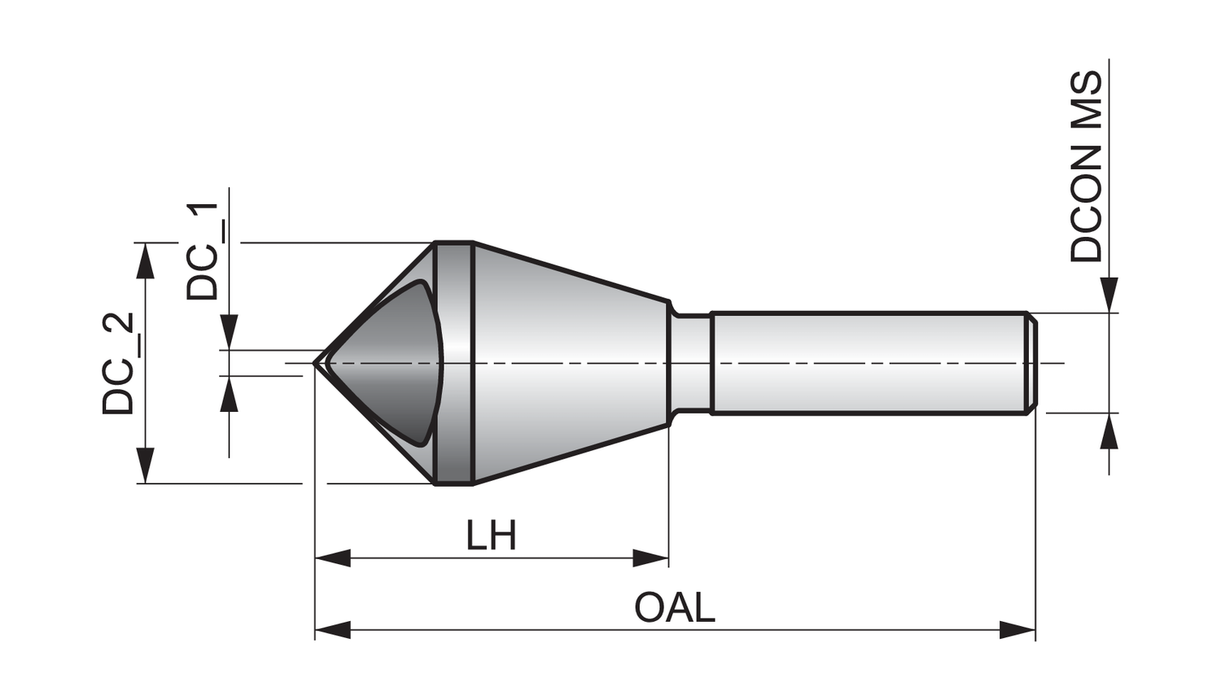

Material: HSS-E

Cutting Diameter - in (DC): 0.5512

Cutting Diameter - mm (DC): 14.0

Drill Point Angle - deg: 90

Overall Length (OAL): 1.8898

Connetion Diameter: 0.315

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 109038

EAN: 7320760109038

MFG Part Number: 5973182
